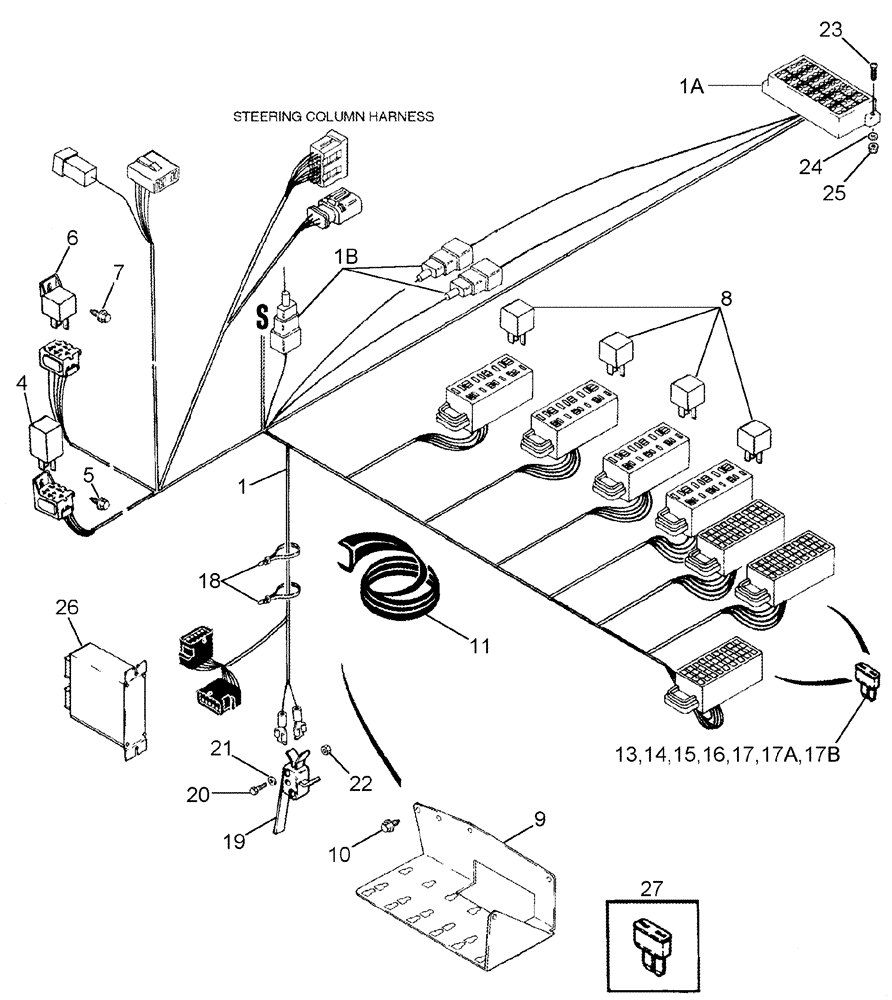

Запчасти Case IH 420 TIER 3 (04-08) - HARNESS, CAB - PEDESTAL, RELAY AND FUSE BLOCK (06) - ELECTRICAL SYSTEMS

1

87725326

WIRE HARNESS

Cab

1шт.

Model Year 2008 And Prior

1шт.

1

84156615

WIRE HARNESS

Cab

1шт.

Model Year 2009 And After

1шт.

1a

122845A1

JUNCTION BLOCK

Feedback

1шт.

1b

113699A1

RECTIFIER

2-5/8

3шт.

4

309001A1

FLASHER UNIT,12V

1шт.

5

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

1шт.

6

87522476

RELAY

12V, 70 amp

1шт.

7

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

1шт.

8

87414866

RELAY,12V, 20A

20 amp, Continuous Duty

20шт.

9

123116A1

PANEL

1шт.

10

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

3шт.

11

70-5848T1

SEAL

140 mm (5-1/2"), Cut From F64277X

2шт.

12

87735233

DECAL

Lower Fuse Block (Not Shown)

1шт.

See Figure 09F-20

1шт.

13

121850A1

FUSE,3A, Mini, Violet

3шт.

14

121410A1

FUSE,5A, Mini, Tan

7шт.

15

121412A1

FUSE,10A, Mini, Red

9шт.

16

121413A1

FUSE,15A, Mini, Blue

7шт.

17

121414A1

FUSE,20A, Mini, Yellow

4шт.

17a

121415A1

FUSE,25A, Mini, Clear

2шт.

17b

121416A1

FUSE,30A, Mini, Green

2шт.

18

702093C1

CABLE TIE

CABLE STRAP

2шт.

19

60-6515T1

SWITCH

High Range Lockout

1шт.

20

463-10412

SCREW,Hex Hd, #4-40 x 3/4"

2шт.

21

495-31012

WASHER,#4

2шт.

22

225-14104

NUT,#4-40

2шт.

23

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

24

495-31012

WASHER,#4

2шт.

25

231-14106

NUT,#6-32, GB

2шт.

26

183969A3

CONTROL UNIT

Moistener, RPM

1шт.

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

27

222699A1

FUSE KIT

Inc. 3, 5, 7-1/2, 10, 15, 20, 25, 30 amp

1шт.
