Запчасти Case IH 420 TIER 3 (04-07) - HARNESS, CAB - LOWER REAR (06) - ELECTRICAL SYSTEMS

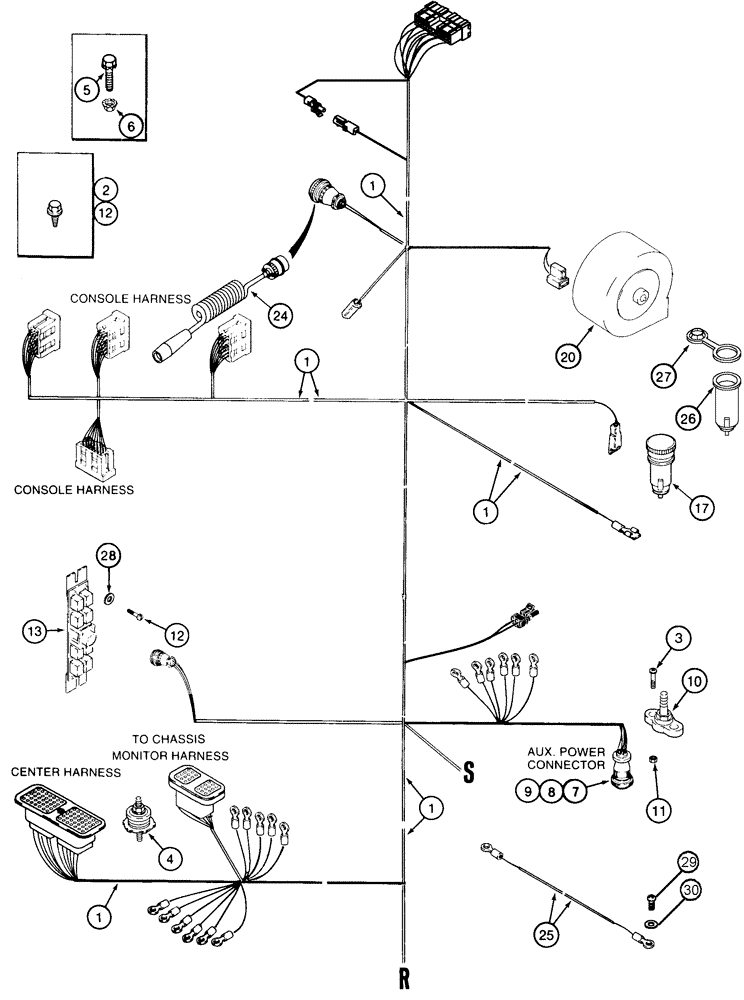

Схема запчастей Case IH 420 TIER 3 - (04-07) - HARNESS, CAB - LOWER REAR (06) - ELECTRICAL SYSTEMS
12
12
17
9
8
1
29
24
1
6
1
28
20
5
30
25
7
4
13
1
11
3
10
27
2
1
26

Артикул

Название

Примечание

Количество

1

87725326

WIRE HARNESS

Cab

1шт.

Model Year 2008 And Prior

1шт.

1

84156615

WIRE HARNESS

Cab

1шт.

Model Year 2009 And After

1шт.

2

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

3

262-15516

SELF-TAP SCREW,Hex Pan Hd, #10 x 1"

2шт.

4

190158A1

BLOCK

Junction, Unswitched

1шт.

5

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

1шт.

6

231-5146

FLANGE NUT,3/8"-16

1шт.

7

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

4шт.

8

231-14106

NUT,#6-32, GB

4шт.

9

187103A1

ELEC CONNECTOR

Auxiliary Power

1шт.

10

435434A1

BLOCK

Junction, Switched

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

12a

495-31022

WASHER,#10

2шт.

13

1983419C3

CONTROL UNIT

Operator Presence

1шт.

17

A177447

LIGHTER, CIGARETTE

1шт.

20

87107380

BLOWER

Cab Pressurizer

1шт.

24

187678A1

SWITCH

Remote Tether, Basket Unload, Service Option Only

1шт.

25

87580166

CABLE

Ground

1шт.

26

432212A1

CIGAR LIGHTER

12V

1шт.

27

190812A1

COVER

1шт.

28

495-31022

WASHER,#10

2шт.

29

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

Выбрано товаров: 26
