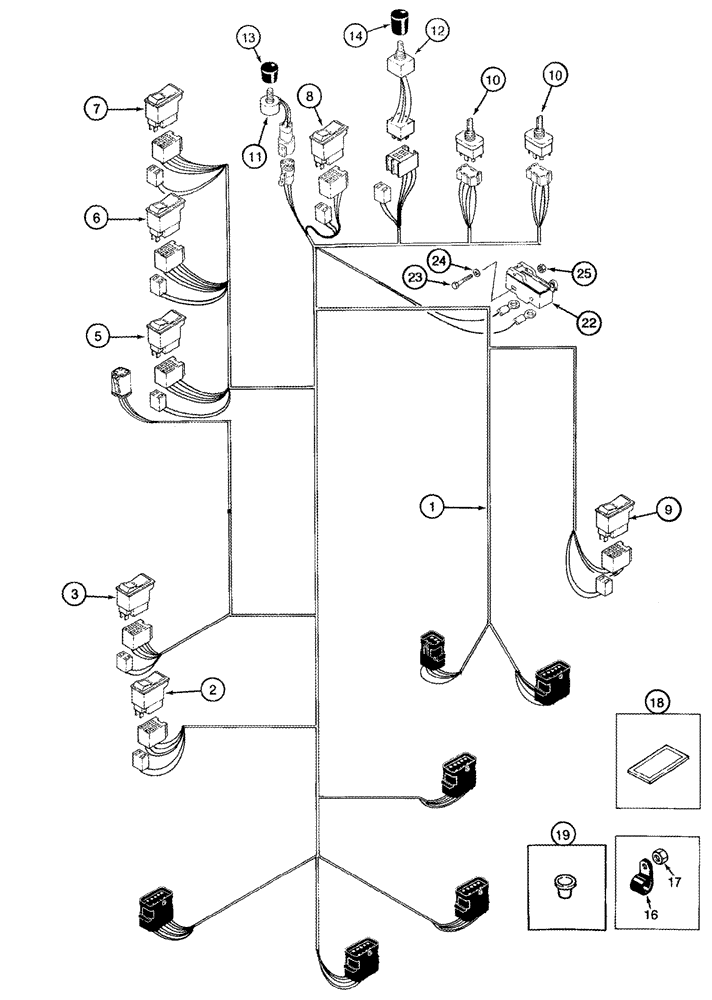

Запчасти Case IH 420 TIER 3 (04-05) - HARNESS - CONSOLE (06) - ELECTRICAL SYSTEMS

1

87725327

WIRE HARNESS

Console

1шт.

Model Year 2008 And Prior

1шт.

1

84166094

WIRE HARNESS

Right Hand Console

1шт.

Model Year 2009 And After

1шт.

2

124098A1

SWITCH

Parking Brake

1шт.

3

198506A1

SWITCH

Power Guide Axle, 4WD, Two Speed

1шт.

5

124104A1

FAN SWITCH

1шт.

6

124097A1

SWITCH

Hydraulic Lockout

1шт.

7

447753A1

SWITCH

Basket Lock, Drum Lock

1шт.

8

184865A1

SWITCH

Moistener

1шт.

9

187104A1

SWITCH

OPS Service

1шт.

10

121541C2

SWITCH

Toggle, Drum Lower, Left Hand, Right Hand

2шт.

11

114551A1

POTENTIOMETER,2500 Ohm, 500V

1шт.

12

233945A2

SWITCH

Compactor Auger

1шт.

13

118780A1

KNOB

Potentiometer

1шт.

14

337017A1

KNOB

Compactor Auger

1шт.

16

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

18

245918C1

LENS

Rectangular rocker switch

1шт.

19

86625127

PLUG,Dome, .375" hole, Nylon

Button

1шт.

20

3141107R1

BULB,W5/1.2, 12V, 1.2W

(Not Shown)

1шт.

21

134608A1

LAMP SOCKET

(Not Shown)

1шт.

22

141655A1

SWITCH

Backup Alarm

1шт.

23

463-10416

SCREW,Hex Hd, #4-40 x 1"

2шт.

24

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

25

225-14104

NUT,#4-40

2шт.
