Запчасти Case IH 420 TIER 3 (04-01) - HARNESS, ENGINE (06) - ELECTRICAL SYSTEMS

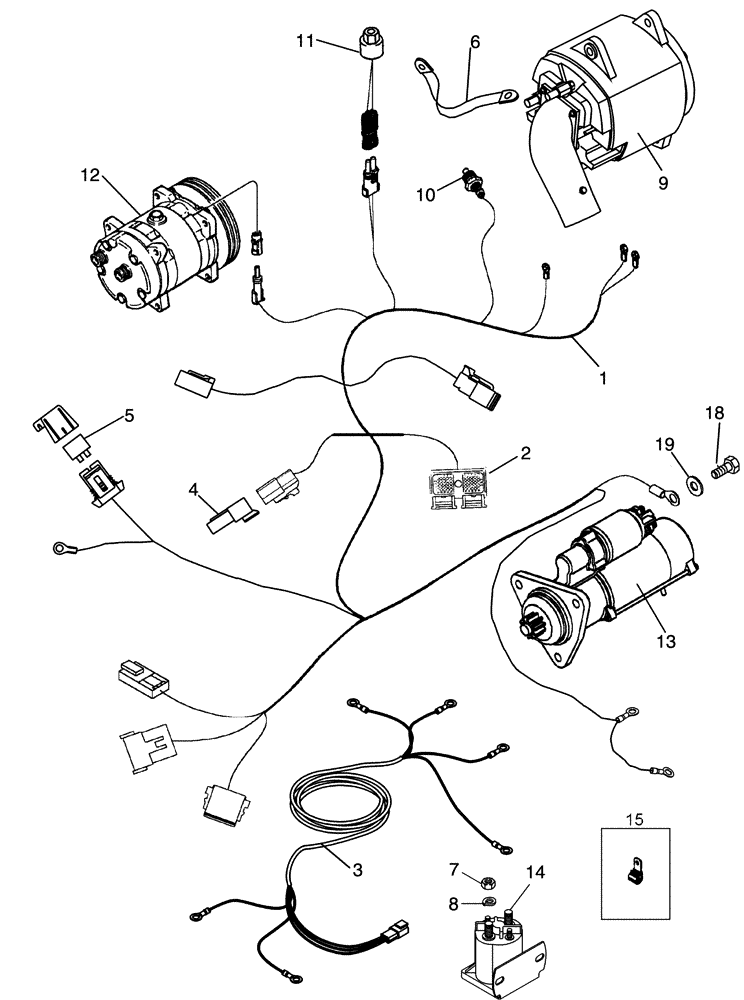

Схема запчастей Case IH 420 TIER 3 - (04-01) - HARNESS, ENGINE (06) - ELECTRICAL SYSTEMS
8
18
15
1
7
5
19
12
11
4
9
14
2
13
3
10
6

Артикул

Название

Примечание

Количество

1

87593772

HARNESS

Engine, Tier 3

1шт.

2

242580A1

MULTIPOLE CONNECTOR,Female, 50 Pin

1шт.

3

87356369

WIRE HARNESS

Grid Heater

1шт.

4

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

5

92277

FUSE,30 Amp

1шт.

6

87646040

CABLE

Ground, Alternator

1шт.

7

225-14210

NUT,#10-32

2шт.

8

492-11010

LOCK WASHER,#10

2шт.

9

87645142

ALTERNATOR,12V, 185A

12V, 185 amp

1шт.

9

87645142R

REMAN-ALTERNATOR

420 TIER 3 (9/06-)

1шт.

9

87645142C

CORE-ALTERNATOR

Return Part Number

1шт.

10

121756C2

SENSOR

Coolant Temperature

1шт.

11

369798A2

SWITCH

High Pressure, Air Conditioning

1шт.

12

86993462

AIRCOND. COMPRESSOR

See Figure 09E-20

1шт.

12

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

12

86993462R

REMAN-COMPRESSOR

420 TIER 3 (3/08-)

1шт.

12

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

12

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

12

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

12

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

12

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

13

87419387

STARTING MOTOR

Iskra, See Figure 04-19

1шт.

13

84146320R

REMAN-STARTER,12V, 4.2kW

420 TIER 3 (3/08-), Reman for New P/N 87419387

1шт.

13

84146320C

CORE-STARTER,12V, 4.2kW

Return Part Number

1шт.

14

87406968

SOLENOID SWITCH

Grid Heater

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

15

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

15

1345263C1

CLIP

2шт.

16

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

(Not Shown)

1шт.

17

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

(Not Shown)

2шт.

18

258820A1

SCREW

1шт.

19

892-11005

LOCK WASHER,M5

1шт.

Выбрано товаров: 32
