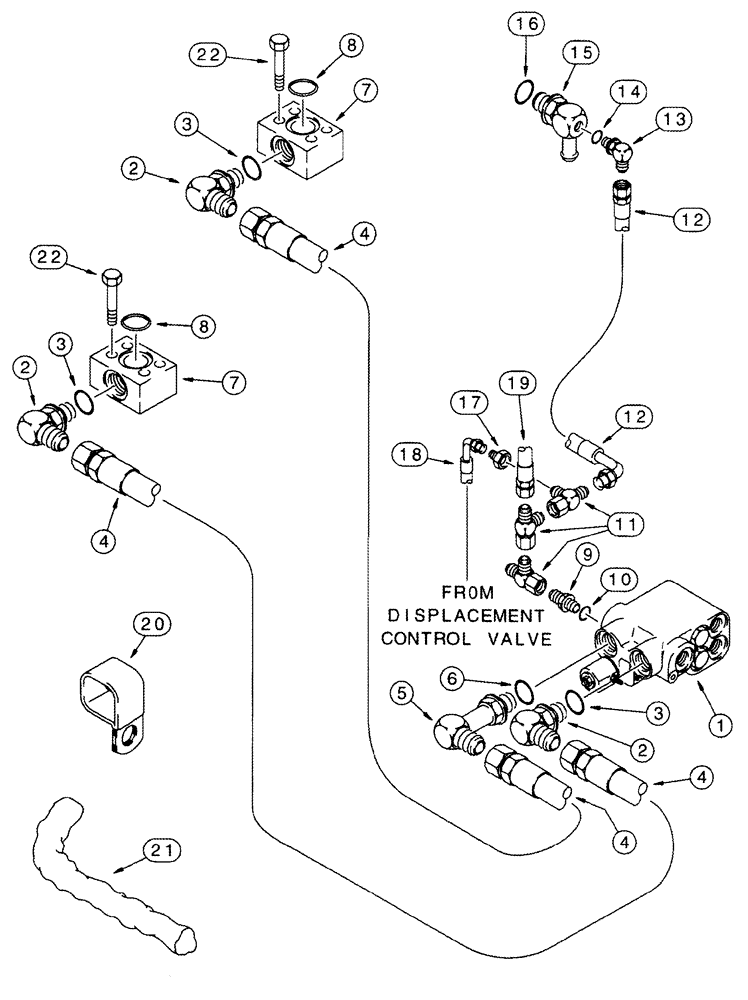

Запчасти Case IH 420 TIER 3 (05-13) - SELECTOR VALVE HYDRAULIC SYSTEM (04) - STEERING

1

1347194C1

VALVE

Selector

1шт.

See Figure 05-16

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

247344A1

HOSE

Pressure, 3683 mm (145")

2шт.

5

218-5550

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Inc. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

226646A1

BLOCK

Manifold Valve, Inc. 8

2шт.

7a

218-335

CAP,37 Degree, 1 1/16"-12

Manifold Valve (Not Shown)

1шт.

8

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

9

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Inc. 10

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

3шт.

12

237850A1

HOSE

Drain, 4826 mm (190")

1шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

123522A1

FITTING

Special, Inc. 16

1шт.

16

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

17

218-764

REDUCER,37 Degree, 3/4"-16, Fem x 7/16"-20 Male

1шт.

18

238944A1

HOSE

Valve to Displacement Control Valve, 457 mm (18")

1шт.

19

247323A1

HOSE,12.7mm ID x 1371.6mm L

Left Hand Drain, 1372 mm (54")

1шт.

20

238954A1

CLAMP

Special

2шт.

21

1970108C1

PROTECTIVE COVER

60 ID x 1219 mm

4шт.

22

326-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 8

4шт.
