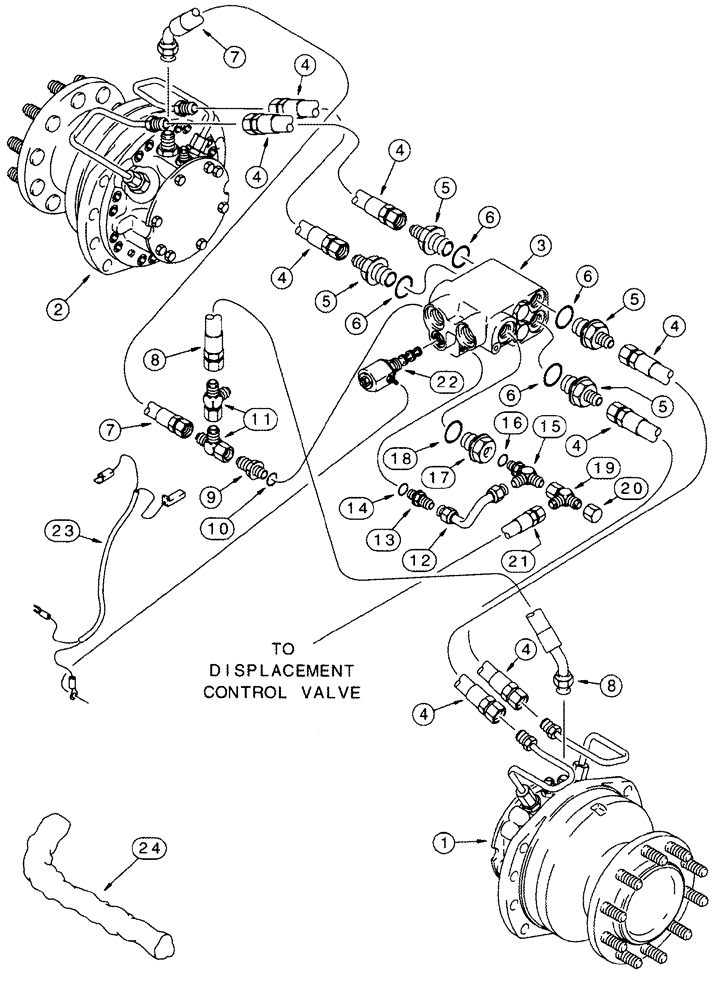

Запчасти Case IH 420 TIER 3 (05-10) - HYDRAULICS - MOTOR, AXLE (04) - STEERING

1

238767A1

MOTOR, HYDRAULIC

Wheel Drive, Right Hand

1шт.

See Figure 05-12

1шт.

2

238768A1

MOTOR, HYDRAULIC

Wheel Drive, Left Hand

1шт.

See Figure 05-12

1шт.

3

1347194C1

VALVE

Selector

1шт.

See Figure 05-16

1шт.

4

247321A1

HOSE,12.7mm ID x 1168.4mm L

Wheel Motor, 1168 mm (46")

4шт.

5

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Incl. 6

4шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

247323A1

HOSE,12.7mm ID x 1371.6mm L

LH Drain, 1372 mm (54")

1шт.

8

247322A1

HOSE,12.7mm ID x 1193.8mm L

RH Drain, 1194 mm (47")

1шт.

9

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Inc. 10

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

2шт.

12

1970140C1

TUBE,4.78 mm ID

Pressure

1шт.

13

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 14

1шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

15

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Inc. 16

1шт.

16

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

17

1970176C1

PLUG

Inc. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

20

218-752

CAP,37 Degree, 7/16"-20

1шт.

21

238944A1

HOSE

457 mm (18"), Pressure

1шт.

22

REF

INSTRUCTION

Solenoid Assy

1шт.

See Figure 05-16, Ref. 60 - 64

1шт.

23

237846A2

HARNESS

Solenoid

1шт.

24

238953A1

SLEEVE

60 ID x 914 mm lg

1шт.

24

238952A1

PLASTIC-RUBBER TUBE

40 ID x 914 mm lg

1шт.
