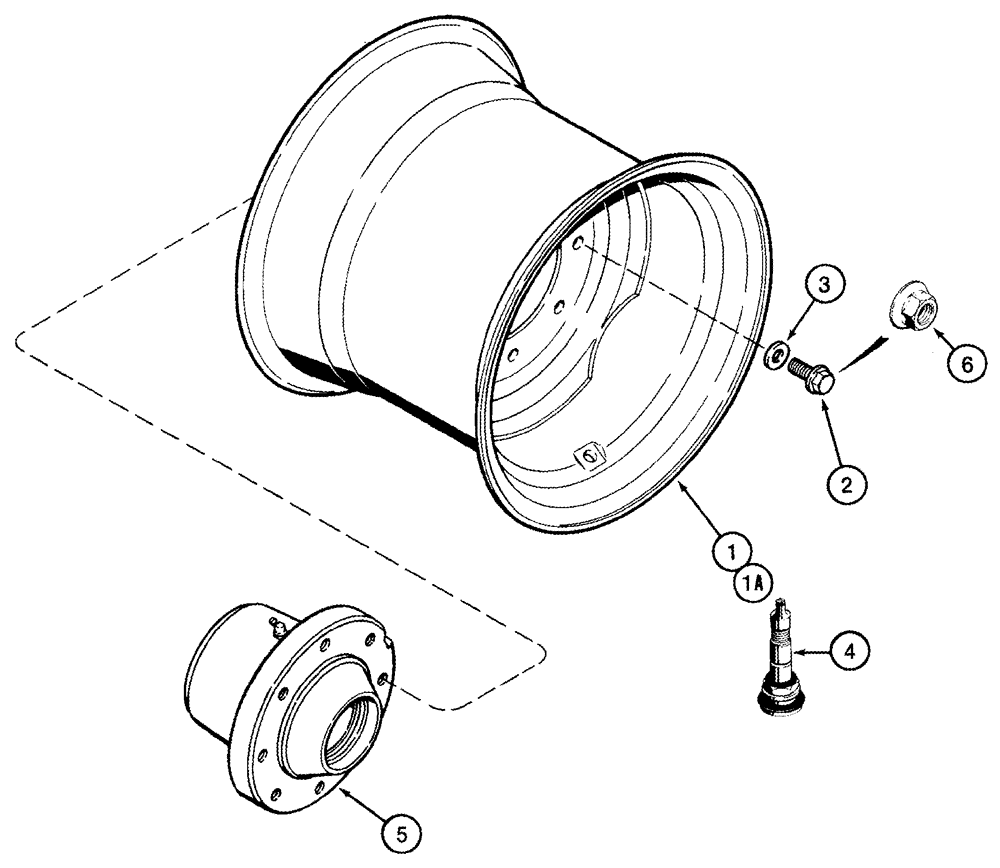

Запчасти Case IH 420 TIER 3 (05-08) - WHEELS, REAR (04) - STEERING

1

192201A2

WHEEL

12 x 24", Rear Steering, Eight Hole Pattern, Standard Axle

2шт.

1a

232777A2

RIM

WHEEL 12 x 24", Rear Steering, Ten Hole Pattern, Power Guide Axle (Not Shown)

2шт.

1a

360213A1

WHEEL ASSY.

26 x 15", Rear Steering, Ten Hole Pattern, Power Guide Axle (Not Shown)

2шт.

2

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

If Used

16шт.

2

460-924

BOLT,Hex, 9/16" - 18 x 1 1/2", Gr 8

If Used

16шт.

3

496-21059

WASHER,0.59" ID x 1.19" OD x 0.13" Thk

Use W/192201A2

16шт.

4

179482C1

VALVE STEM

7/16" dia

2шт.

4a

407184R1

VALVE

Core (Not Shown)

2шт.

4b

359846A1

PLUG

(Not Shown)

2шт.

5

1259528C1

HUB

Rear Wheel

2шт.

See Figure 05-06

1шт.

6

1541701C1

FLANGE NUT

Use W/232777A2, 360213A1

20шт.
