Запчасти Case IH 420 TIER 3 (06-12) - MOTOR ASSY - HYDROSTATIC - RELIEF VALVE BLOCK (03) - POWER TRAIN

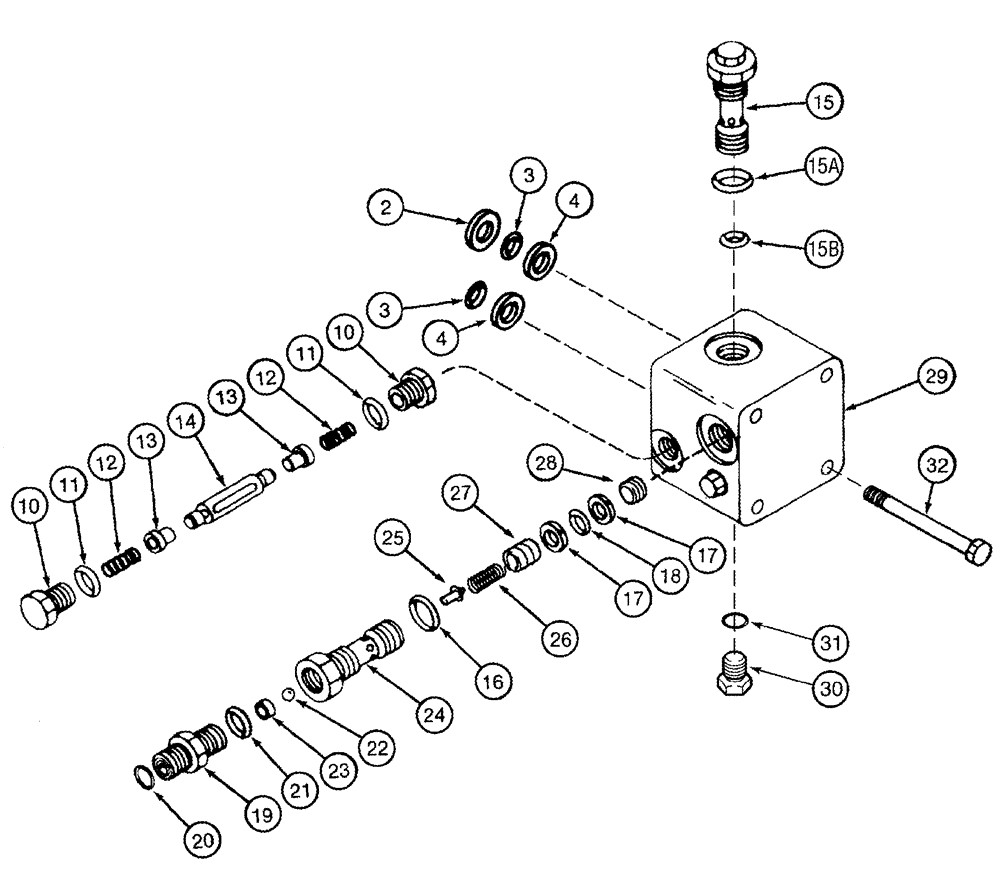

Схема запчастей Case IH 420 TIER 3 - (06-12) - MOTOR ASSY - HYDROSTATIC - RELIEF VALVE BLOCK (03) - POWER TRAIN
11
32
10
17
10
17
23
18
15b
21
22
4
28
12
14
12
20
27
15
25
29
15a
16
13
4
2
30
13
24
3
26
19
31
11
3

Артикул

Название

Примечание

Количество

400475A2

HYDROSTATIC MOTOR,89.13CC

1шт.

See Figure(s) 06-13, 06-14

1шт.

400475A2R

REMAN-HYD MOTOR

Reman For New PN 400475A2

1шт.

400475A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

193646A2

BLOCK

Relief Valve, Inc. 2 - 31

1шт.

140747C92

SEAL KIT

Valve Block, Inc. 2 - 4

1шт.

2

239-5018

O-RING,Square, 0.062" Thk x 0.75" ID, -18, Cl 5, 75 Duro

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

4

631458C1

RING

2шт.

145559C91

KIT

Shuttle Valve, Inc. 10 - 14

1шт.

10

86512512

PLUG,7/8" - 14 ORB

Incl. 11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

12

145560C1

SPRING

2шт.

13

NSS

NOT SOLD SEPARAT

VALVE, Regulator, Shuttle

2шт.

14

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

15

140761C1

VALVE PRESSURE RELIE

Low, Incl. Ref. 15A, 15B

1шт.

15a

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

15b

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

193647A1

VALVE PRESSURE RELIE

Feathering Relief, Inc. 393885R92, 222167A1, Ref. 16 - 28

2шт.

393885R92

SEAL KIT

Relief Valve, Inc. 16 - 18

3шт.

16

NSS

NOT SOLD SEPARAT

O-RING

1шт.

17

NSS

NOT SOLD SEPARAT

RING, Backup

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING

1шт.

222167A1

REPAIR KIT

Check Valve, Inc. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

22

211-1008

BALL,1/4" Dia

1шт.

23

NSS

NOT SOLD SEPARAT

BUSHING, Ball Guide

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

25

NSS

NOT SOLD SEPARAT

ORIFICE

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG

1шт.

29

NSS

NOT SOLD SEPARAT

BLOCK

1шт.

30

9672438

PLUG,7/16" - 20 ORB

Incl. 31

1шт.

31

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

32

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

Выбрано товаров: 38
