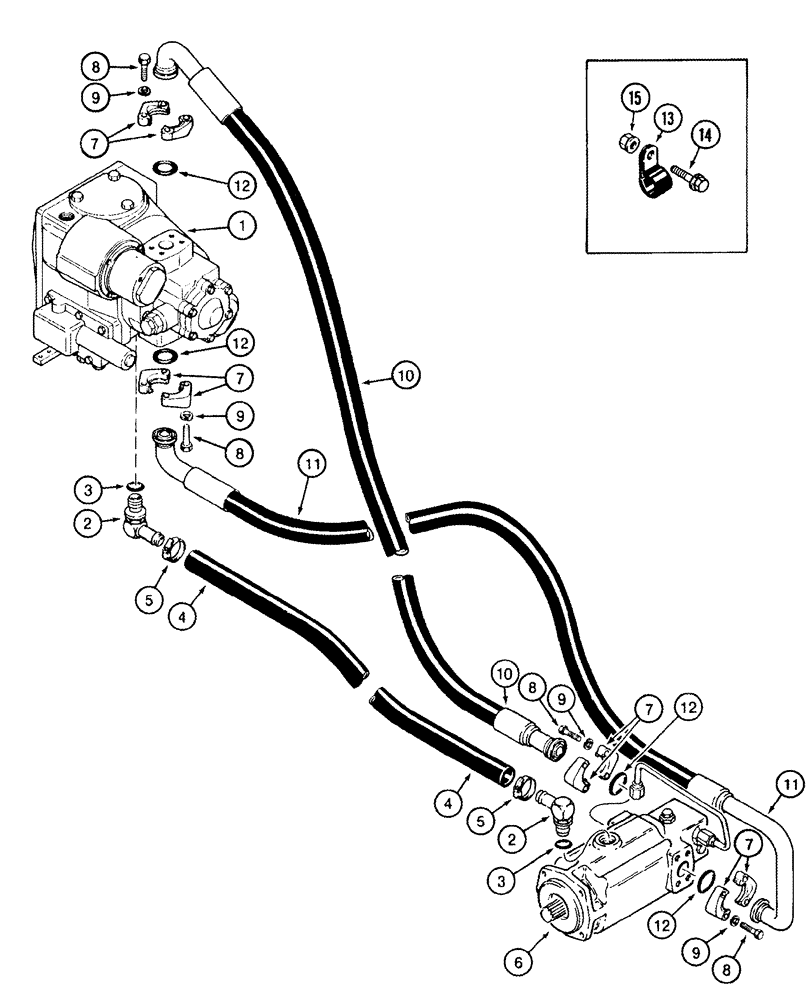

Запчасти Case IH 420 TIER 3 (06-04) - HYDROSTATICS - PUMP AND MOTOR (03) - POWER TRAIN

1

1986824C5

PUMP, HYDROSTATIC

HYDROSTATIC PUMP New

1шт.

See Figure(s) 06-09 - 06-12

1шт.

1

1986824C5R

REMAN-HYDROSTAT PUMP

420 TIER 3 COTTON EXPRESS COTTON PICKER, PUMP AND MOTOR (3/08-)

1шт.

1

1986824C5C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

1546404C1

ELBOW

1 barb x 1-1/16 Or, Special, Inc. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

1984278C1

HOSE,25.40 mm ID x 1725.00 mm, SAE 30R2 Type 1 (or) 3, CLASS 1 (or) 3

Motor Case Drain

1шт.

5

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

6

400475A1

MOTOR, HYDRAULIC

New

1шт.

See Figure(s) 06-13, 06-14

1шт.

6

400475A2R

REMAN-HYD MOTOR

Reman For New PN 400475A1

1шт.

6

400475A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

7

S97224

CLAMP

1", Split Flange

8шт.

8

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

16шт.

9

492-11044

LOCK WASHER,7/16"

16шт.

10

1984276C2

HOSE,25.4mm ID x 1450mm L

1450 mm (57-1/16"), Hydrostatic Pressure, Forward

1шт.

11

1984277C2

HOSE,25.4mm ID x 1575mm L

1575 mm (62"), Hydrostatic Pressure, Reverse

1шт.

12

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

13

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

3шт.

14

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.

15

231-5146

FLANGE NUT,3/8"-16

1шт.
