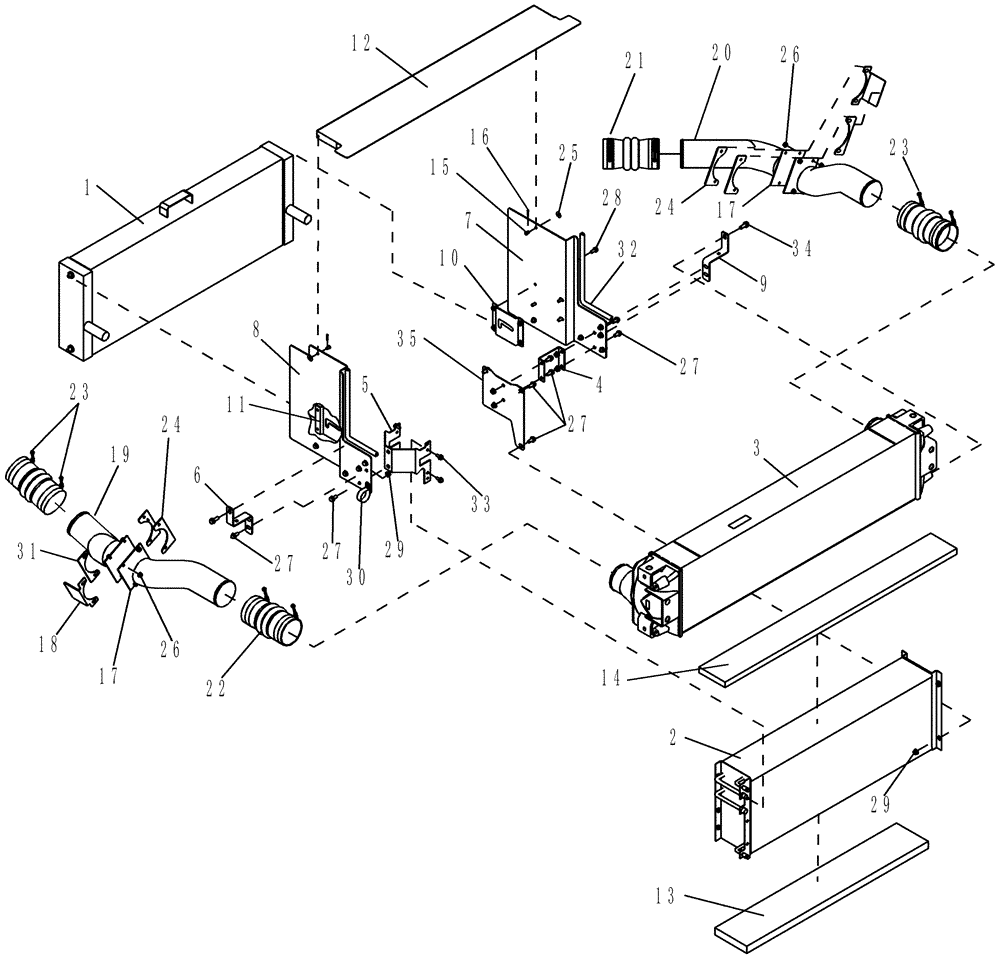

Запчасти Case IH 420 TIER 3 (06-02) - OIL COOLER MOUNTING (03) - POWER TRAIN

1

87682273

COOLER

1шт.

2

87682775

COOLER

Fuel/Condenser

1шт.

3

87578692

INTERCOOLER,Charge Air

1шт.

4

87682353

BRACKET

Right Hand, Cooler

1шт.

5

87687493

BRACKET

Left Hand, Cooler

1шт.

6

87682354

BRACKET

1шт.

7

87687476

PLATE ASSY.

1шт.

8

87687491

PLATE ASSY.

1шт.

9

87682354

BRACKET

2шт.

10

87693016

BRACKET

Right Hand, Cooler

1шт.

11

87687483

BRACKET

Left Hand, Cooler

1шт.

12

87713150

PLATE ASSY.

1шт.

13

87682350

SEAL

Bottom, Cooler

1шт.

14

87584962

SEALING STRIP

1шт.

15

439-158

HEADED PIN,5/16" x 1/2"

2шт.

16

432-810

COTTER PIN,1/8" x 5/8"

2шт.

17

87701199

SEAL

Charge Air Tubes

4шт.

18

87757447

COVER

2шт.

19

87696494

TUBE,101.6 mm OD x 855 mm L

Hot Chute

1шт.

20

87696495

TUBE,4" OD

Cold Chute

1шт.

21

87381812

HOSE

Charge Air Cooler, Return

2шт.

22

291883A1

HOSE

Charge Air Cooler

2шт.

23

349360A1

CLAMP

8шт.

24

87701200

PLATE ASSY.

Charge Air Tube Seal

4шт.

25

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

2шт.

26

231-5345

FLANGE NUT,Flg, 5/16"-18

16шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

19шт.

28

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

29

231-5146

FLANGE NUT,3/8"-16

11шт.

30

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

31

87756789

SUPPORT ASSY.

2шт.

32

87757013

SEAL

2шт.

33

905-8016

BOLT,Hex Flg, M8 x 16mm

4шт.

34

905-10025

BOLT,Hex Flg, M10 x 25mm

2шт.

35

87682351

PLATE ASSY.

Right Hand, Cooler

1шт.
