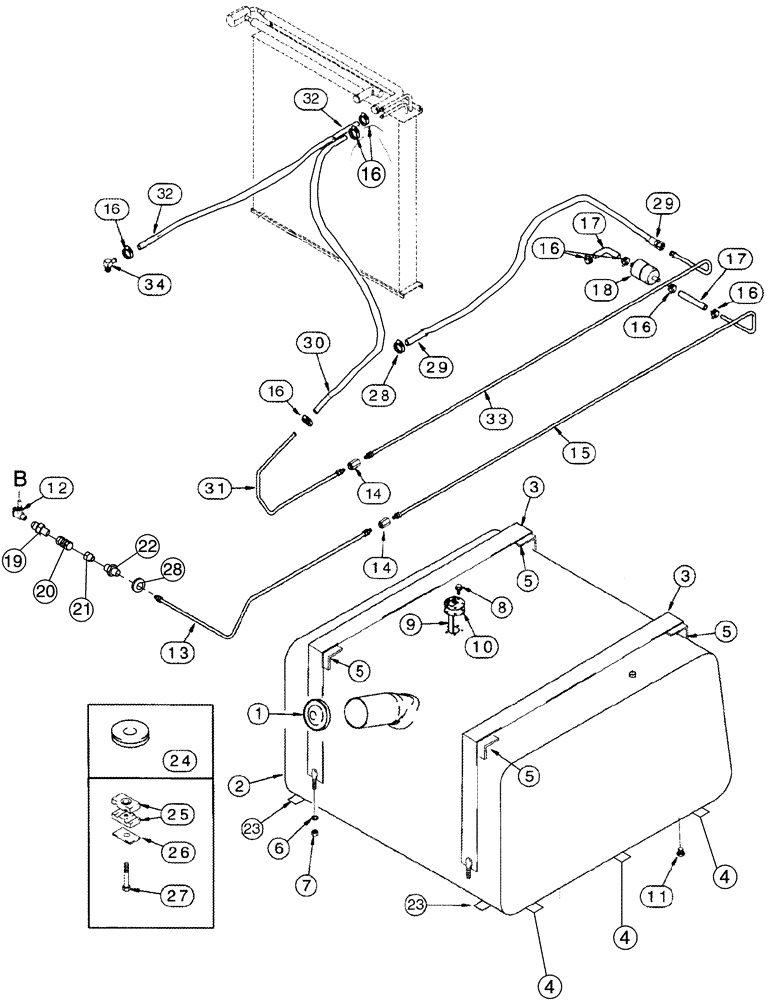

Запчасти Case IH 420 TIER 3 (03-04) - FUEL TANK AND LINES (02) - FUEL SYSTEM

1982455C4

FUEL TANK

120 gal, Inc. 1 - 2

1шт.

1

23995DC

FILLER CAP

1шт.

2

NSS

NOT SOLD SEPARAT

TANK

1шт.

3

1349811C1

STRAP

2шт.

4

87470023

875 mm (34.5") Cut From 73215C1

3шт.

5

666210R1

FIXING STRIP

229 mm (9"), Cut From 990541R1

4шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

231-5146

FLANGE NUT,3/8"-16

6шт.

8

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

5шт.

9

121810C1

ELECTRICAL GAUGE

Fuel Level

1шт.

10

168515C1

GASKET,3.05mm Thk

1шт.

11

217-434

PLUG,Hex Soc, 3/8" - 18 NPTF

1шт.

12

390069R91

SHUT-OFF VALVE

1шт.

13

87733435

FUEL TUBE,.5" OD

Fuel Supply, Rear

1шт.

14

87742346

UNION

2шт.

15

87733439

FUEL TUBE,12.70 mm OD x 1630 mm L

Fuel Supply, Front

1шт.

16

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

10шт.

17

399798A1

HOSE

2шт.

18

194199A1

FUEL FILTER

1шт.

19

87733373

1шт.

20

87733375

1шт.

21

87487843

SCREW ON COUPLING

1шт.

22

87733374

1шт.

23

87470024

712 mm (28"), Cut From 73215C1

2шт.

24

248-2373

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

1шт.

25

1546025C1

CLAMP

3шт.

26

1347127C1

PLATE

3шт.

27

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

3шт.

28

87742343

GROMMET,.688" x 1"

1шт.

29

87743574

HOSE ASSY.

Fuel Return

1шт.

30

87719399

FUEL HOSE,12.70 mm ID x 1286.00 mm

Fuel Return

2шт.

31

87733434

FUEL TUBE,.5" OD

Fuel Return, Rear

1шт.

32

87719398

FUEL HOSE,12.70 mm ID x 1230.00 mm

Fuel Supply

1шт.

33

87733440

FUEL TUBE,12.70 mm OD x 1560 mm L

Fuel Return, Front

1шт.

34

217-133

ELBOW,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

35

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

1шт.
