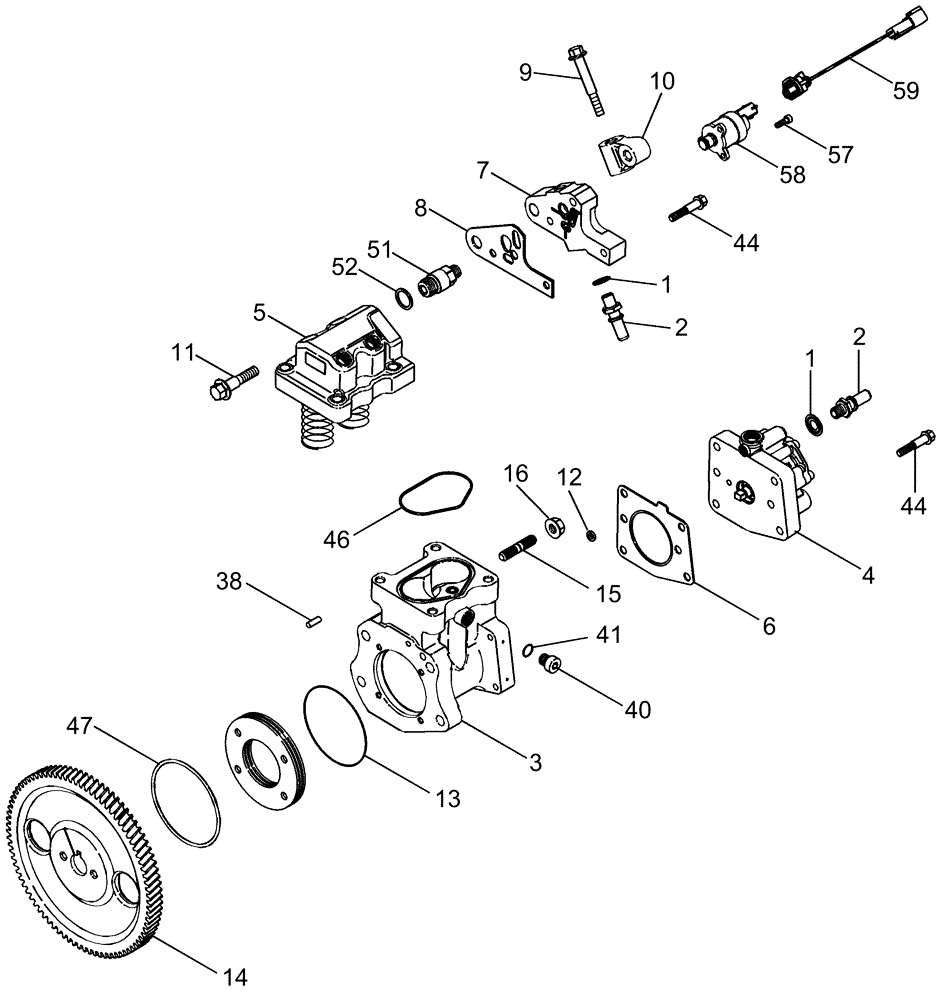

Запчасти Case IH 420 TIER 3 (03-03) - FUEL INJECTION - PUMP AND DRIVE (02) - FUEL SYSTEM

84493585R

REMAN-INJECTION PUMP

Complete Assembly

1шт.

84493585C

CORE-INJECTION PUMP

Return Number

1шт.

1

87346600

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

3шт.

2

87349484

ADAPTER

3шт.

3

87351467

HOUSING

Fuel Pump

1шт.

4

87351478

HEAD

1шт.

4

87351478R

REMAN-INJECTION PUMP

Front Half

1шт.

4

87351478C

CORE-INJECTION PUMP

Return Part Number

1шт.

5

87684601

HEAD

Fuel Pump

1шт.

5

87684601R

REMAN-FUEL PUMP HEAD

Remanufactured Fuel Pump Head

1шт.

5

87684601C

CORE-FUEL PUMP HEAD

Return Part Number

1шт.

6

87377387

GASKET,1.02mm Thk

Cover Plate

1шт.

7

NSS

NOT SOLD SEPARAT

ADAPTER, Fuel Pump

1шт.

8

87351493

GASKET

Fuel Pump to Gear Pump

1шт.

9

844-10070

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

1шт.

10

87346420

SUPPORT

1шт.

11

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

1шт.

12

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

1шт.

13

238-7241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 7, 75 Duro

2шт.

14

J942764

GEAR

Fuel Pump

1шт.

15

86991263

STUD,M10 x 1.5 x 55

(2-5/32")

4шт.

16

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

38

J329899

DOWEL,5.01mm OD x 10mm L

1шт.

39

J330252

LOCK WASHER

(Not Shown)

1шт.

40

J678923

PLUG,M10 x 1

Inc. 41

3шт.

41

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

42

J867640

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

(Not Shown)

1шт.

43

J926593

NUT

M20 x 1.5 (Not Shown)

1шт.

44

854-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

7шт.

45

87351459

SCREW

(Not Shown)

4шт.

46

J4010636

SEAL

Pump Body

1шт.

47

87351514

SEAL,0.07" Thk x 2.95" ID, 75 Duro

1шт.

48

87351521

BOLT

(Not Shown)

4шт.

49

J867641

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

(Not Shown)

4шт.

50

J867651

SEAL,1.78mm Thk x 29.8mm ID

(Not Shown)

2шт.

51

87351522

FITTING

High Pressure

1шт.

52

87351523

SEALING WASHER

1шт.

53

87351524

SEALING WASHER

(Not Shown)

2шт.

54

87351525

PLUG

(Not Shown)

2шт.

55

87351528

PLUG

(Not Shown)

2шт.

56

87351531

SEALING WASHER

(Not Shown)

2шт.

57

87351533

HEX SOC SCREW

3шт.

58

87351534

ACTUATOR

ETR Fuel

1шт.

59

NSS

NOT SOLD SEPARAT

Harness, Wire, Order 87351534

1шт.

60

87351536

ADAPTER

Fuel Pump (Not Shown)

1шт.

60

87351536R

REMAN-INJECTION PUMP

420 Tier III

1шт.

60

87351536C

CORE-INJECTION PUMP

Return Part Number

1шт.

61

87351504

HUB

Distributor Drive (Not Shown)

1шт.

62

87351537

RETAINER

(Not Shown)

1шт.

63

87351538

FILTER SCREEN

(Not Shown)

1шт.

64

87351540

ORIFICE

(Not Shown)

1шт.
