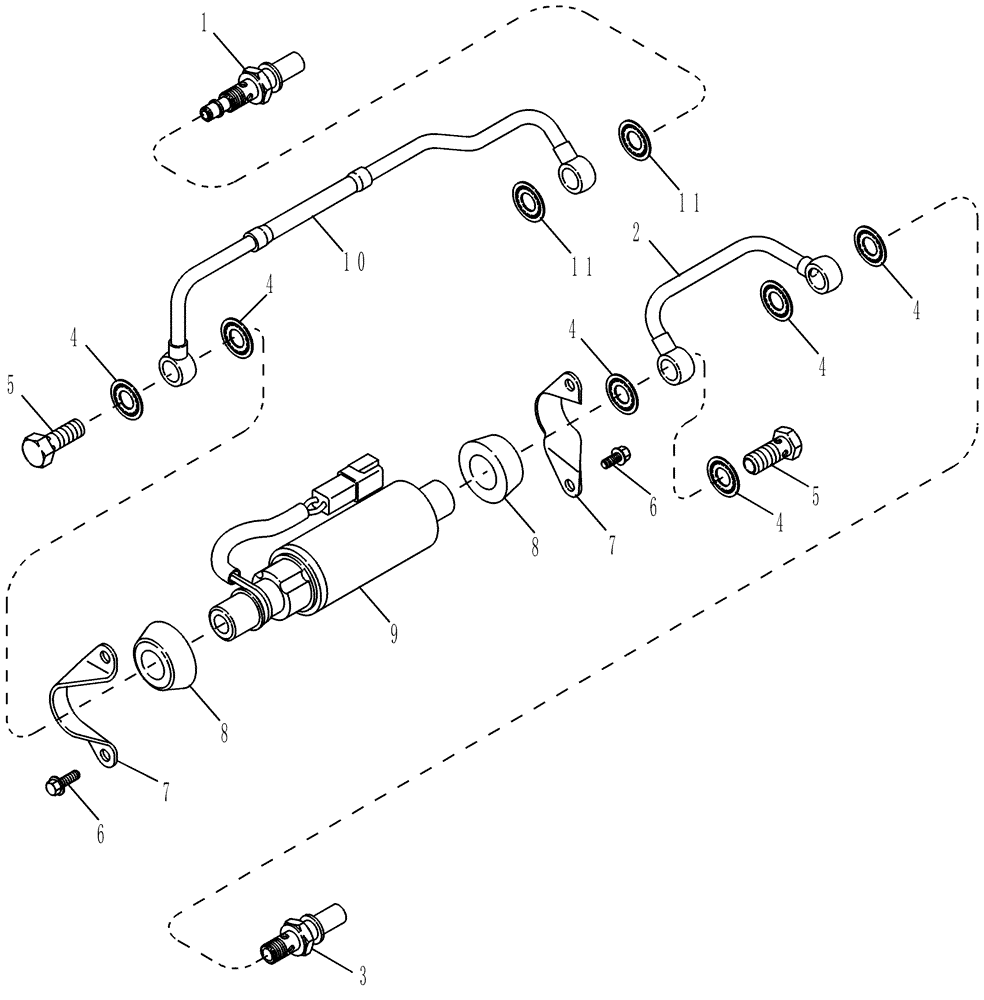

Запчасти Case IH 420 TIER 3 (03-02) - FUEL FILTER - PUMP, TRANSFER (02) - FUEL SYSTEM

1

87346904

CHECK VALVE

1шт.

2

87346902

FUEL TUBE,0.315" OD

1шт.

3

87346936

ADAPTER

1шт.

4

87346600

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

6шт.

5

J903035

BANJO BOLT

2шт.

6

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

4шт.

7

87346733

BRACKET

2шт.

8

87346917

ISOLATOR

2шт.

9

87346909

FUEL PUMP

1шт.

10

87346734

FUEL TUBE

1шт.

11

87417767

SEALING WASHER,13.67mm ID x 22.35mm OD x 1.27mm Thk

2шт.
