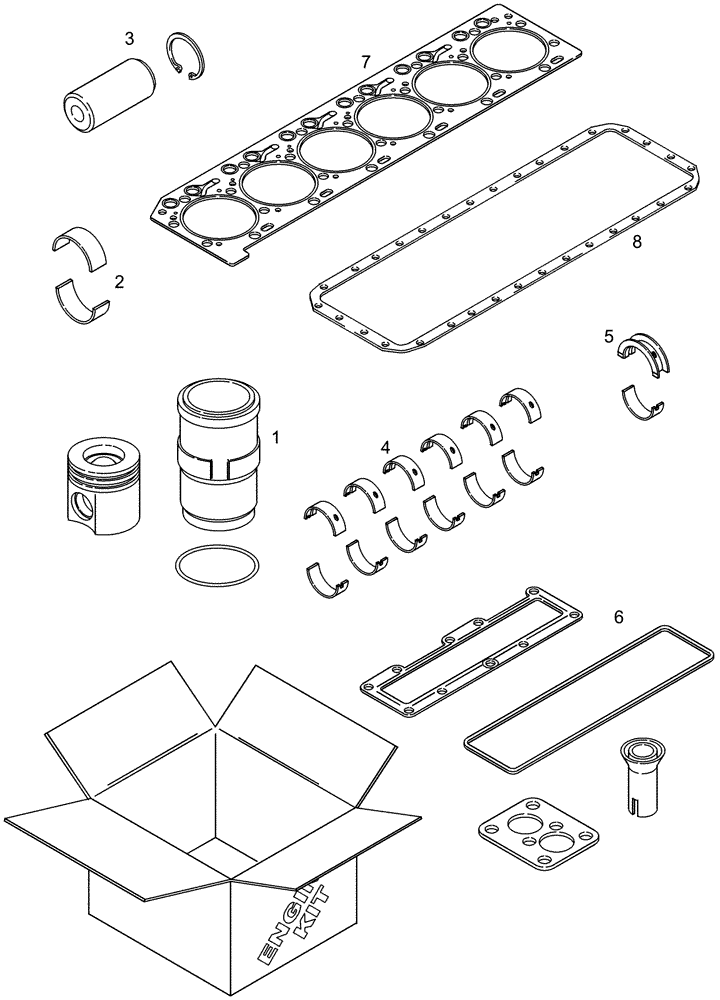

Запчасти Case IH 420 TIER 3 (02-28) - KIT ENGINE OVERHAUL (01) - ENGINE

87348859

ENGINE OVERHAUL KIT

Inc. 1 - 8

1шт.

1

87343262

KIT

6шт.

See Figure 02-22

1шт.

2

87443389

BEARING LINER

Connecting Rod, Standard

6шт.

See Figure 02-22

1шт.

3

87342670

PISTON PIN

6шт.

See Figure 02-22

1шт.

4

J945930

BEARING SET

Main, Standard

6шт.

See Figure 02-21

1шт.

5

J945929

THRUST BEARING

Thrust, Standard

1шт.

See Figure 02-21

1шт.

6

87348974

GASKET KIT

Valve Grind

1шт.

See Figure 02-26

1шт.

7

87737237

CYLINDER HEAD GASKET,1.81mm Thk

1шт.

See Figure 02-26

1шт.

8

87308050

GASKET,0.95mm Thk

Oil Pan

1шт.

See Figure 02-13

1шт.
