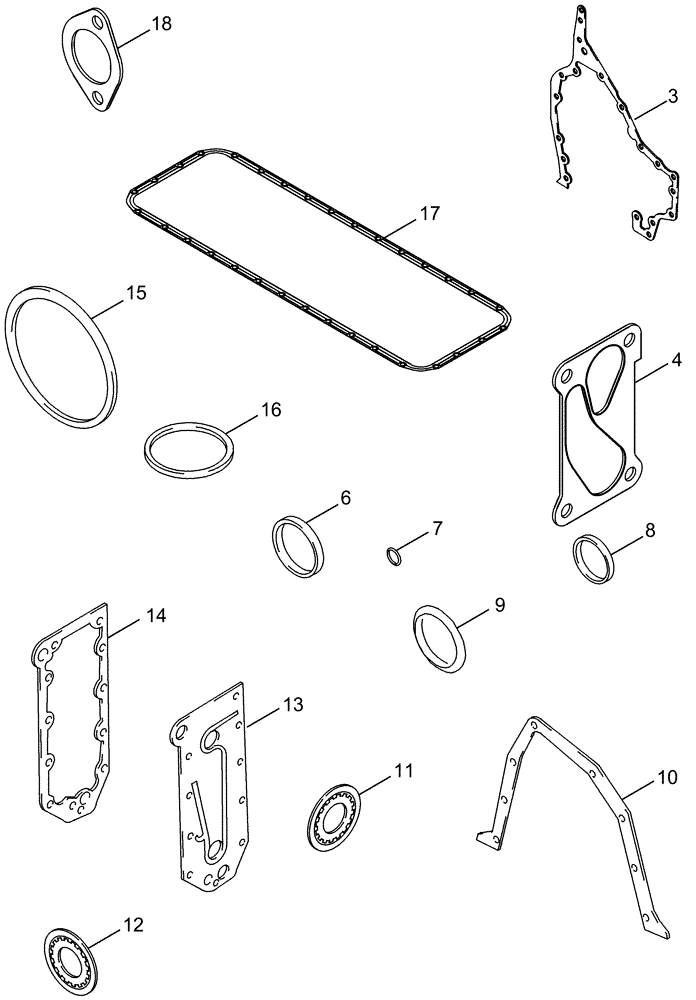

Запчасти Case IH 420 TIER 3 (02-25) - GASKET KIT - CYLINDER BLOCK (01) - ENGINE

1

87351543

GASKET KIT

Cylinder Block, Inc. 2 - 18

1шт.

3

J944293

GASKET,1.01mm Thk

Gear Housing

1шт.

4

87612306

GASKET,1.15mm Thk

Coolant Filter

1шт.

6

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

7

238-7241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 7, 75 Duro

1шт.

8

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

1шт.

9

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

10

87447962

GASKET,0.8mm Thk

Rear Cover

1шт.

11

87346600

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

6шт.

12

87417767

SEALING WASHER,13.67mm ID x 22.35mm OD x 1.27mm Thk

2шт.

13

J4063496

GASKET,0.8mm Thk

1шт.

14

J918174

GASKET,0.71mm Thk

1шт.

15

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

16

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

17

87308050

GASKET,0.95mm Thk

Oil Pan

1шт.

18

87447959

GASKET,1.2mm Thk

Oil Suction

1шт.
