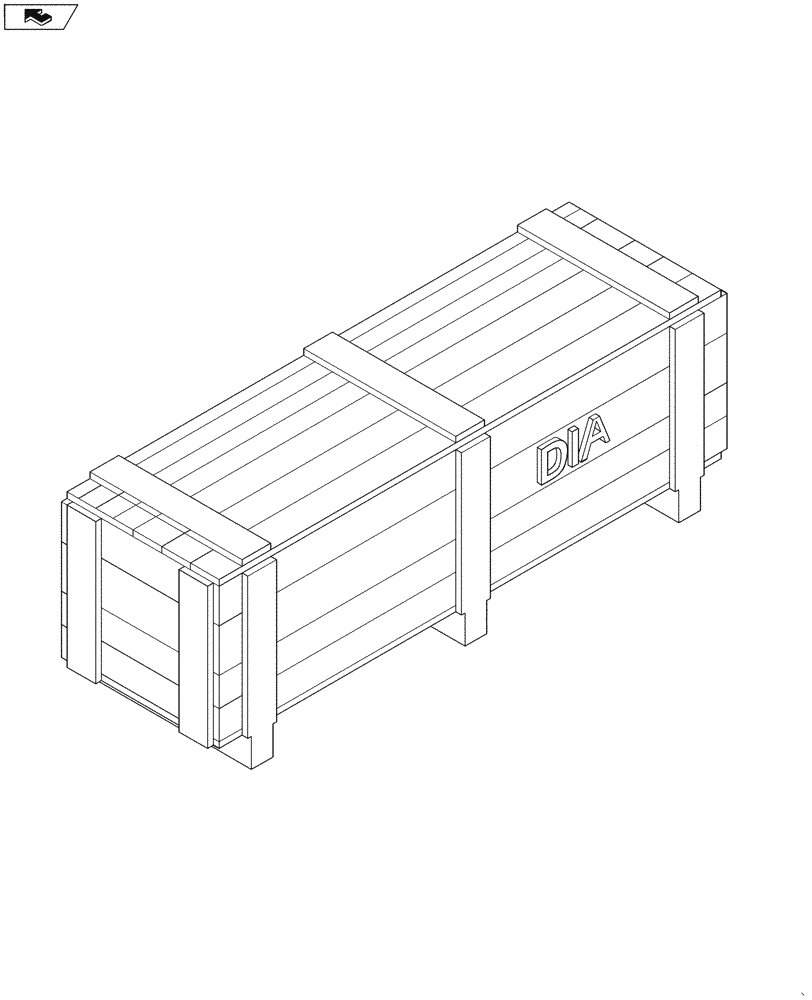

Запчасти Case IH 420 TIER 3 (88.050.01) - DIA KIT, HEATER AND AIR CONDITIONING (88) - ACCESSORIES

1

84254167

SERVICE KIT

Heater And Air Conditioning, Incl 2 - 123

1шт.

2

84253796

INSTRUCTION

Instruction, Installation - Heater A/C

1шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

4

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

5

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

7

120108

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

1шт.

8

291809

SEALING STRIP

1шт.

9

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

10

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

11

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

1шт.

12

9628098

NUT,M8 x 1.25, Cl 10

6шт.

13

9635806

CIRCLIP,Ext., 0.392" Dia

2шт.

14

9706690

NUT,M8 x 1.25, Cl 8

2шт.

15

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

16

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

15шт.

17

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

18

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

19

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

20

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

21

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

22

84129073

AIR CONDITIONER

Heater, Assembly

1шт.

23

84129087

COVER

Hose RH

1шт.

24

84129088

COVER

Hose LH

1шт.

25

84207144

HOOD

Rear

1шт.

26

84207148

EXHAUST SYSTEM PIPE

1шт.

27

84207184

EXHAUST SYSTEM PIPE

Extension

1шт.

28

84245940

VALVE

Water Supply - 3 Way

1шт.

29

84245954

HEATER HOSE

Return

1шт.

30

84245980

HEATER HOSE

Supply

1шт.

31

84247343

BRACKET

Water Valve And Dryer

1шт.

32

84247501

HEATER HOSE

Return

1шт.

33

84249456

HEATER HOSE

2шт.

34

86025725

BOLT,Hex, M5 x 40mm, Cl 8.8

4шт.

35

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

36

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

5шт.

37

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

38

86511444

FLANGE NUT,Hex, M6 x 1

4шт.

39

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

40

86530043

FITTING,5/8” Y-Fitting

1шт.

41

86592710

WASHER,6.4mm ID x 17mm OD x 3mm Thk

4шт.

42

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

43

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

10шт.

44

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

45

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

46

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

47

86625481

RECEIVER-DRYER

1шт.

48

86625515

PRESSURE SWITCH

1шт.

49

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

50

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

5шт.

51

86639409

DECAL

1шт.

52

86729669

SWITCH

1шт.

53

86729670

KNOB

2шт.

54

86729675

SWITCH,5000 Ohm

Switch

1шт.

55

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

4шт.

56

87013357

WASHER,5.5mm ID x 15mm OD x 1.6mm Thk

4шт.

57

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

3шт.

58

87016585

NUT,Spring, M6 x 1

Spring

2шт.

59

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

Multi-Thread

6шт.

60

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

61

87035391

SELF-TAP SCREW,Pan Hd, M4.8 x 38

2шт.

62

87301324

NUT,Spring, M5 x 0.8

4шт.

63

87305403

SPACER,13.51mm ID x 19.05mm OD x 17.5mm Thk

2шт.

64

87307909

GROMMET

2шт.

65

87310592

JAM NUT,7/16" - 28, Gr 5

2шт.

66

87436118

A/C HOSE

Suction

1шт.

67

87436247

THREADED INSERT

2шт.

68

87437501

BRACKET

Drier

1шт.

69

87439844

GUARD

Trim Rops Front

8шт.

70

87441006

TUBE,4.6mm ID x 1350mm L

Hoses

2шт.

71

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

Hose

11шт.

72

87445908

HARNESS

Compressor

1шт.

73

87452009

A/C HOSE

1шт.

74

87459075

ROD

Hood Pivot

1шт.

75

87459076

LOCKING BAR

1шт.

76

87462144

INSULATION,25.4mm W x 1070mm L x 12.7mm Thk

Side Screen

3шт.

77

87482933

HARNESS

1шт.

78

87492414

PLATE

Cover

1шт.

79

87492860

SELF-TAP SCREW,1/4" - 20 x 3/4"

Tapping

3шт.

80

87496285

FOAM INSULATION

2шт.

81

87555249

SWITCH

1шт.

82

87563692

CONDENSER

1шт.

83

504249332

FITTING,M35 x 1.5, 18mm

use with Gasket 99469380

1шт.

84

87574372

SPACER,6.8mm ID x 10.3mm OD x 19mm L

4шт.

85

87584302

CLAMP,16mm - 19mm, Spring

Hose

2шт.

86

87594971

GUARD

Fan, Option

1шт.

87

87617163

HEATER HOSE,15.00 mm ID, 18.00 mm ID x 73.00 mm, SAE 20R4

Supply

1шт.

88

87617165

ADAPTER

Hose

1шт.

89

87622384

BUSHING,11mm ID x 20mm OD x 28mm L

Bracket

1шт.

90

87625599

V-BELT,14.24 mm W x 927.00 mm L

1шт.

91

87649945

BRACKET

Compressor

1шт.

92

87649979

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

Tensioner

1шт.

93

87649991

AIRCOND. COMPRESSOR,12V, W/ Clutch, W/ Pulley

1шт.

93

87649991R

REMAN-A/C COMPRESSOR,12V, W/ Clutch, W/ Pulley

1шт.

93

87649991C

CORE-COMPRESSOR

Return Number

1шт.

94

87655334

RELAY,12V, 35A, Micro

1шт.

95

87661763

RUBBER SEAL

Adhesive Bulb

1шт.

96

87669939

METAL LINER

1шт.

97

87687236

DECAL

Control

1шт.

98

87691470

HOSE,12.7mm ID x 3500mm L

Suction

1шт.

99

87691471

HOSE,7.94mm ID x 3450mm L

Liquid

1шт.

100

87691473

A/C HOSE

Drain

2шт.

101

87705419

TRIM PANEL

Rear Window LH

1шт.

102

87705420

TRIM PANEL

Rear Window RH

1шт.

103

87711926

BRACKET

Tensioner

1шт.

104

87713668

FASTENER

Push In

8шт.

105

87717211

HEATER HOSE,15.75" mm ID, 3400.00 mm, SAE 20R3

1шт.

106

87717220

HOSE

Liquid

1шт.

107

87729516

FOAM INSULATION

Foam

5шт.

108

87742305

GLASS

Window Assy, Rear

1шт.

109

87742340

SCREW,Pan, M6 x 25mm, Cl 4.8

2шт.

110

87743081

FASTENER

Spacer

2шт.

111

87743315

INSULATING PANEL

External, Heat Shield - Gray

1шт.

112

87746892

DECAL

Key Blank

2шт.

113

189609A1

BALL STUD,M8 x 1.25

2шт.

114

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

115

254698A1

SPACER

Pivot Assist Helper Spring

1шт.

116

381176A2

SEALING STRIP,12.7mm W x 844mm L x 6.35mm Thk

Breast Plate

1шт.

117

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

Gas

1шт.

118

406256A1

HANDLE

Rear Hood

1шт.

119

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

2шт.

120

L11541

CABLE TIE,203.2mm L, Nylon

6шт.

121

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

122

87301340

SEALANT

500шт.

123

87301341

ADHESIVE

Rubber Rope

830шт.
