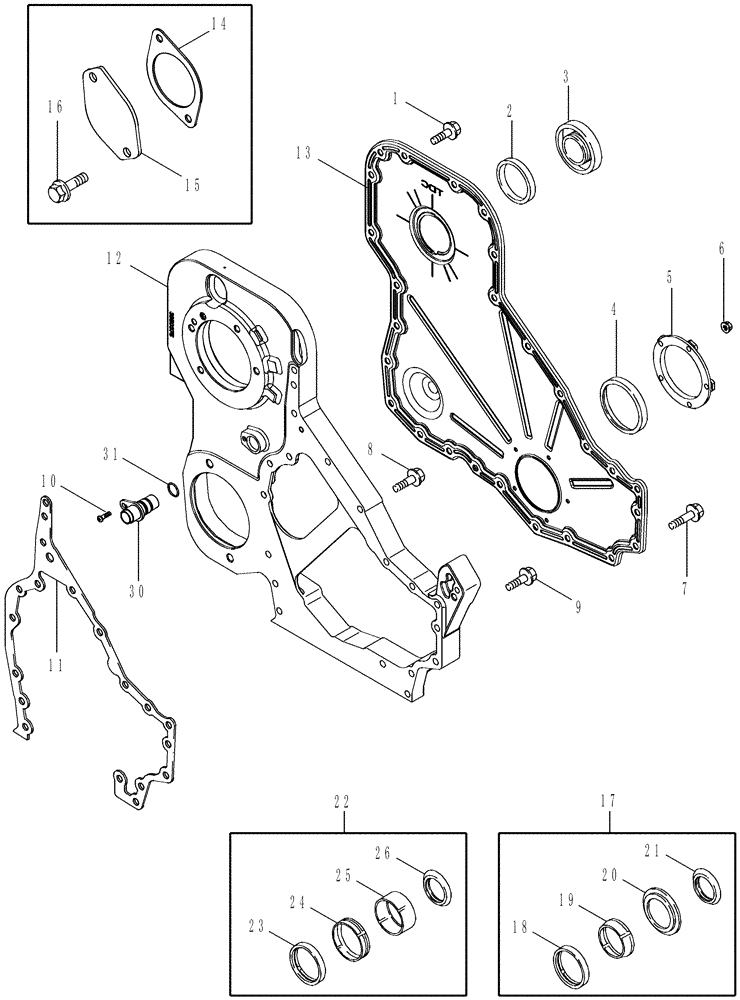

Запчасти Case IH 420 TIER 3 (02-17) - FRONT GEAR COVER (01) - ENGINE

1

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

14шт.

2

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

3

J903463

PLUG,M63 x 5

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order A77790 or A77808

1шт.

5

J941786

CARRIER

1шт.

6

87493304

FLANGE NUT

M6

5шт.

7

J926863

FLANGE BOLT

M8 x 50

12шт.

8

J943885

BOLT

M8 x 40

3шт.

9

J926846

FLANGE BOLT

M8 x 20

3шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

1шт.

11

J944293

GASKET,1.01mm Thk

1шт.

12

J945853

HOUSING

Gear

1шт.

13

87562839

COVER

Front Gear

1шт.

14

87437884

1шт.

15

87437883

Accessory Drive

1шт.

16

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

17

A77790

SEAL KIT

Crankshaft, Front, Inc. 22 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

Seal

1шт.

19

NSS

NOT SOLD SEPARAT

Tool

1шт.

20

NSS

NOT SOLD SEPARAT

Tool

1шт.

21

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

22

A77808

SERVICE KIT

Crankshaft, Front, Inc. 27 - 30

1шт.

23

NSS

NOT SOLD SEPARAT

Seal, Oil, Oversized

1шт.

24

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

25

NSS

NOT SOLD SEPARAT

Tool

1шт.

26

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

27

J920706

PLUG

(Not Shown)

1шт.

28

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

(Not Shown)

2шт.

29

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC (Not Shown)

1шт.

30

87338343

PLUG

1шт.

31

4010643

1шт.
