Запчасти Case IH 420 TIER 3 (09D-17) - BASKET, LIFT - FRONT AND REAR (16) - BASKET

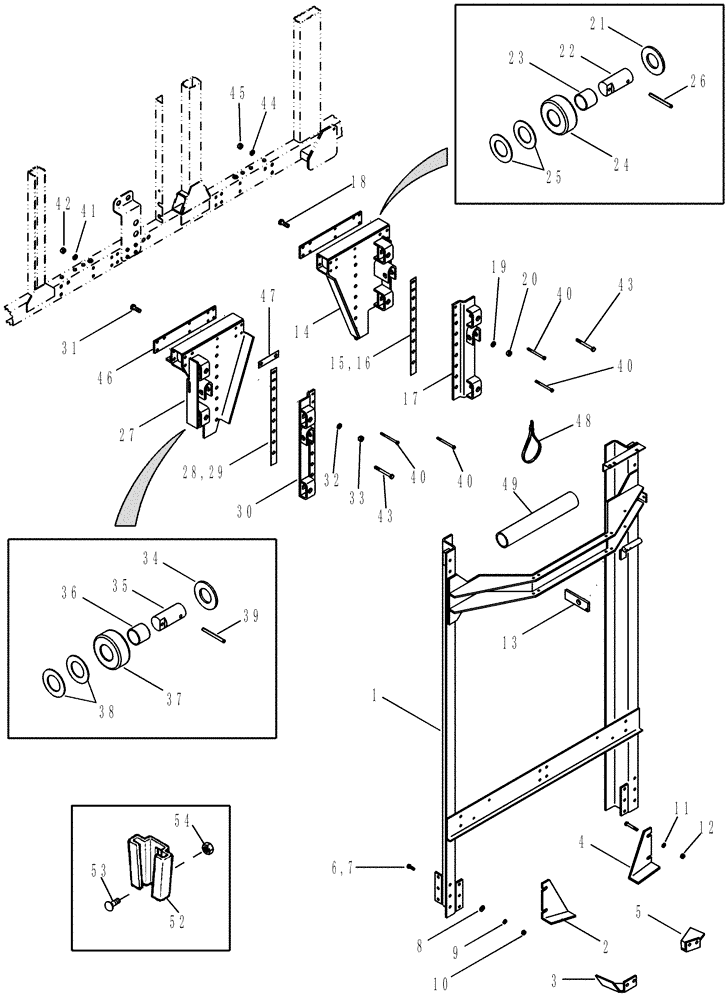

Схема запчастей Case IH 420 TIER 3 - (09D-17) - BASKET, LIFT - FRONT AND REAR (16) - BASKET
5
30
44
12
17
1
3
47
32
26
40
20
48
34
18
42
31
23
4
52
43
27
33
37
22
8
45
40
21
39
11
54
53
49
10
36
14
40
25
9
13
43
46
19
41
38
40
2
35
24

Артикул

Название

Примечание

Количество

1

87730681

FRAME

Mast, Front

1шт.

1

1345022C5

FRAME

Mast, Rear (Not Shown)

1шт.

2

1345223C1

DEFLECTOR

Front Corner, Left Hand

1шт.

3

1288804C1

DEFLECTOR

Rear Corner, Left Hand

1шт.

4

1288805C1

DEFLECTOR

Rear Corner, Right Hand

1шт.

5

1345224C1

DEFLECTOR

Front Corner, Right Hand

1шт.

6

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

28шт.

7

426-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

4шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

36шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

32шт.

10

429-108

NUT,1/2"-13, G8

32шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

4шт.

13

1270025C2

LARGE PLATE

PLATE, LARGE Bar, Basket Lock, Front And Rear

2шт.

See Figure(s) 09D-18, 09D-19

1шт.

379058A3

ROLLER ASSY.

Left Hand, Inc. 14 - 27, Not Available As An Assy., Order Components

2шт.

379056A3

SUPPORT

Basket, Left Hand, Inc. 14, 21 - 26

1шт.

248324A1

SUPPORT ASSY.

Roller Carriage, Left Hand, Inc. 17, 21 - 26

1шт.

14

379054A3

SUPPORT

1шт.

15

1266357C1

SHIM

1/32"

1шт.

16

1266358C1

SHIM

1/16"

1шт.

17

248322A1

SUPPORT ASSY.

1шт.

18

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

7шт.

19

492-11062

BEARING WASHER,5/8"

7шт.

20

429-1010

NUT,5/8"-11, G8

7шт.

21

495-11106

WASHER,1", SAE

3шт.

22

1260150C2

SHAFT

3шт.

23

1270038C1

BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L

3шт.

24

1260135C1

ROLL

3шт.

25

495-81191

WASHER,1 5/32" x 2" x .060"

6шт.

26

38-31232

PIN,4.75mm OD x 50.8mm L

3шт.

379057A3

ROLLER ASSY.

Roller Carriage, Right Hand, Inc. 27 - 39, Not Available As An Assy., Order Components

2шт.

379055A3

SUPPORT

Basket, Right Hand, Inc. 27, 34 - 39

1шт.

248325A1

SUPPORT ASSY.

Roller Carriage, Right Hand, Inc. 30, 34 - 39

1шт.

27

379053A3

SUPPORT

1шт.

28

1266357C1

SHIM

1/32"

1шт.

29

1266358C1

SHIM

1/16"

1шт.

30

248323A1

SUPPORT

1шт.

31

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

7шт.

32

492-11062

BEARING WASHER,5/8"

7шт.

33

429-1010

NUT,5/8"-11, G8

7шт.

34

495-11106

WASHER,1", SAE

3шт.

35

1260150C2

SHAFT

3шт.

36

1270038C1

BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L

3шт.

37

1260135C1

ROLL

3шт.

38

495-81191

WASHER,1 5/32" x 2" x .060"

6шт.

39

38-31232

PIN,4.75mm OD x 50.8mm L

3шт.

40

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

16шт.

40

426-680

BOLT,Hex, 3/8" - 16 x 5", Gr 8

16шт.

41

492-11038

LOCK WASHER,3/8"

36шт.

42

429-106

NUT,3/8"-16, G8

36шт.

43

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

16шт.

44

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

45

429-108

NUT,1/2"-13, G8

12шт.

46

313504A1

LARGE PLATE

PLATE, LARGE Filler, Front Carriage Rollers

4шт.

47

326807A1

LARGE PLATE

PLATE, LARGE Spacer, Carriage Rollers

4шт.

48

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

2шт.

49

231837A1

HOSE

5" Plastic

1шт.

50

BN570007

STRAP

(Not Shown)

1шт.

51

87547996

FOAM

(Not Shown)

1шт.

52

A59457

BRACKET

SMV Emblem

1шт.

53

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

54

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

Выбрано товаров: 63
