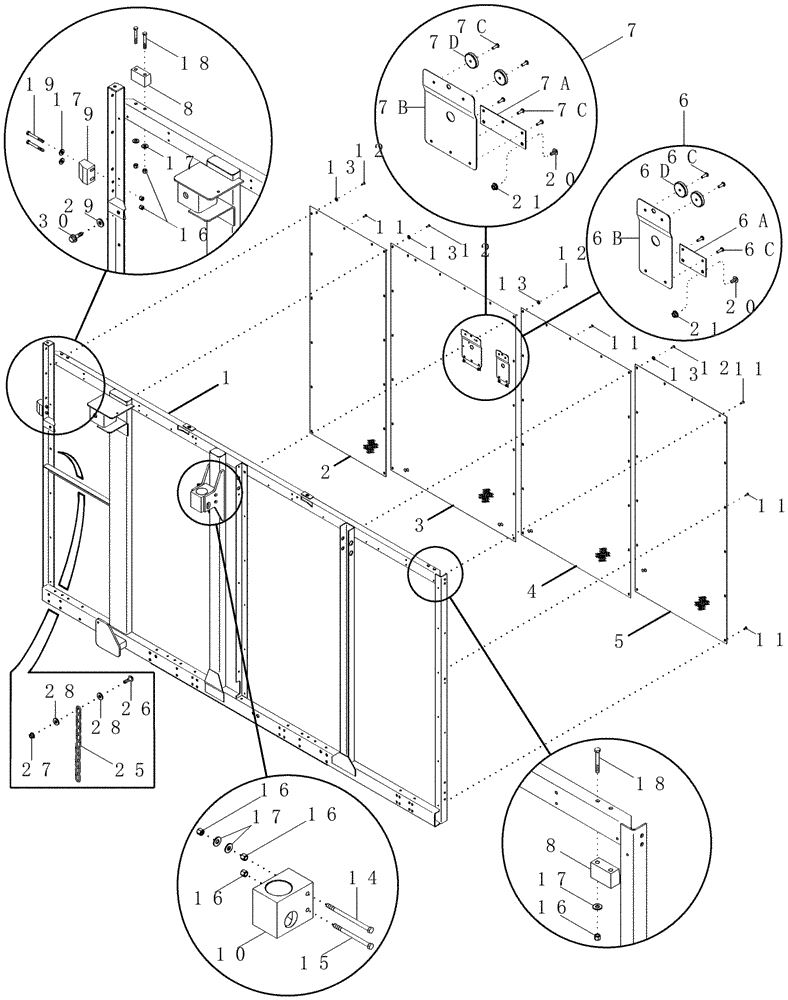

Запчасти Case IH 420 TIER 3 (09D-11) - BASKET REAR WALL (16) - BASKET

410938A2

WALL

Rear, Welded, Inc. 1 - 21

1шт.

1

320292A3

SHEET

Wall, Basket Rear

1шт.

2

298711A3

SHEET

Basket Front, Left

1шт.

3

417525A1

SHEET

Basket Rear Left Center

1шт.

3

84494233

SHEET

Basket Rear Left Center, Start Year: 04-JAN-12

1шт.

4

86990564

SHEET

Basket Rear Right Center

1шт.

4

84494238

SHEET

Basket Rear Right Center, Start Year: 04-JAN-12

1шт.

5

87459609

SHEET

Basket Rear Right

1шт.

5

84494239

SHEET

Basket Rear Right, Start Year: 04-JAN-12

1шт.

6

427365A1

DOOR ASSY.

Basket Rear Wall, Right Hand, Inc. 6A - 6D

1шт.

6a

1982672C1

HINGE

Access Cover

1шт.

6b

NSS

NOT SOLD SEPARAT

DOOR

1шт.

6c

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

4шт.

6d

NSS

NOT SOLD SEPARAT

DOOR LATCH, Magnet

1шт.

7

427363A1

DOOR ASSY.

Basket Rear Wall, Left Hand, Inc. 7A - 7D

1шт.

7a

1982668C1

HINGE

Access Cover

1шт.

7b

NSS

NOT SOLD SEPARAT

DOOR

1шт.

7c

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

5шт.

7d

NSS

NOT SOLD SEPARAT

DOOR LATCH, Magnet

1шт.

8

222680A2

GUIDE

Corner Wearstrip

2шт.

9

328227A1

GUIDE

Basket Door

1шт.

10

409509A1

GUIDE

Cylinder Mount

1шт.

11

375676A1

RIVET,Pop, 6.42mm OD x 24.64mm L

1/4

32шт.

12

375677A1

RIVET

1/4

11шт.

13

495-81107

WASHER,.281" x 7/8" x .060"

11шт.

14

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

1шт.

15

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

1шт.

16

231-1446

NUT,3/8" - 16, Gr 5

9шт.

17

495-21044

WASHER,3/8"

8шт.

18

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

4шт.

19

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

20

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

4шт.

21

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

22шт.

23

425-106

NUT,3/8"-16, Cl 5

32шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

28шт.

25

87235C1

CHAIN

Basket Upper Door

1шт.

26

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

1шт.

27

231-5146

FLANGE NUT,3/8"-16

1шт.

28

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

1шт.

29

495-81163

WASHER,17/32" x 1 1/2" x .120"

1шт.

30

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

1шт.
