Запчасти Case IH 420 TIER 3 (09D-10) - BASKET, FRONT WALL (16) - BASKET

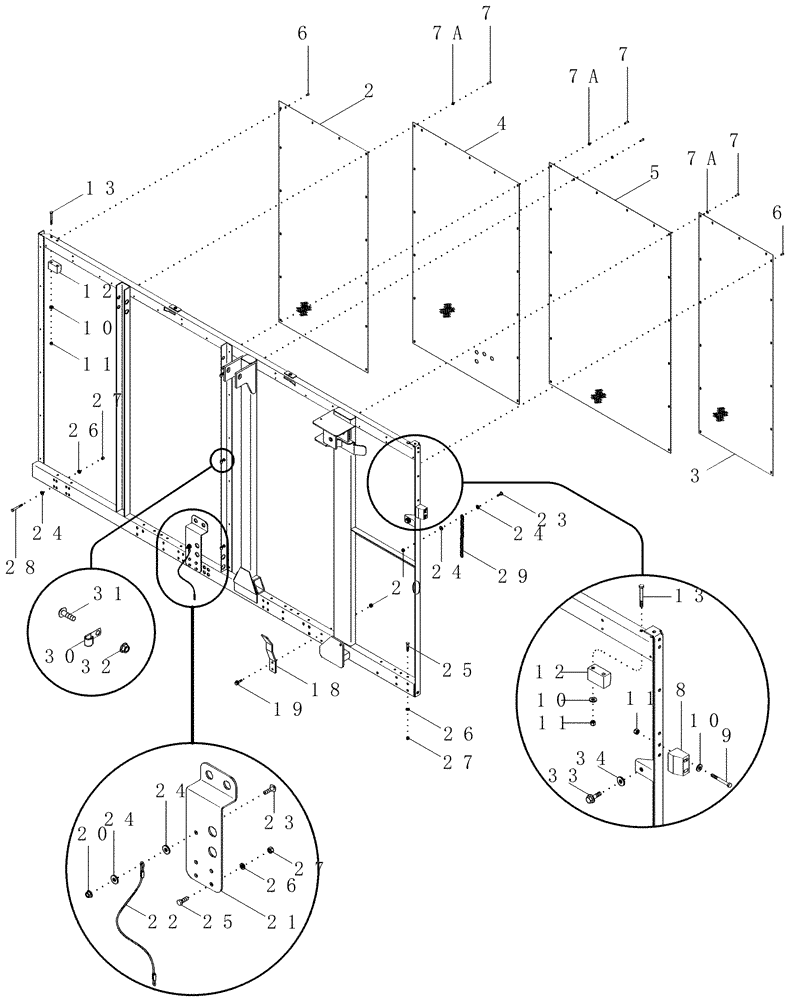

Схема запчастей Case IH 420 TIER 3 - (09D-10) - BASKET, FRONT WALL (16) - BASKET
25
7
27
11
3
24
26
27
12
24
10
8
6
6
10
12
33
7
7a
21
30
2
5
9
24
32
22
23
34
13
7a
24
26
18
24
28
7a
4
10
7
31
11
11
26
13
19
23
29
20
20
27
25

Артикул

Название

Примечание

Количество

411041A2

SHEET

Front Wall, Welded, Inc. 1 - 16

1шт.

1

409310A3

SHEET

Basket Front

1шт.

2

299268A3

SHEET

Right Hand Front

1шт.

3

298711A3

SHEET

Left Hand Front

1шт.

4

86990562

SHEET

Right Hand Front Center

1шт.

4

84494241

SHEET

Right Hand Front Center, Start Year: 04-JAN-12

1шт.

5

86990561

SHEET

Left Hand Front Center

1шт.

5

84494240

SHEET

Left Hand Front Center, Start Year: 04-JAN-12

1шт.

6

375676A1

RIVET,Pop, 6.42mm OD x 24.64mm L

1/4 x 3/8

32шт.

7

375677A1

RIVET

1/4 x 5/8

10шт.

7a

495-81107

WASHER,.281" x 7/8" x .060"

Used W/7

10шт.

8

328227A1

GUIDE

Basket Door

1шт.

9

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

10

495-21044

WASHER,3/8"

8шт.

11

231-1446

NUT,3/8" - 16, Gr 5

9шт.

12

222680A2

GUIDE

Basket Door, Upper Inner

2шт.

13

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

4шт.

14

409509A1

GUIDE

Cylinder Mount

1шт.

15

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

1шт.

16

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

1шт.

18

87407622

GUIDE

Door Shield

1шт.

19

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

20

231-5146

FLANGE NUT,3/8"-16

3шт.

21

370372A2

BRACKET

Bulkhead

1шт.

22

126840A1

CABLE

Shield Anchor

1шт.

23

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

2шт.

24

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

4шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

26

492-11038

LOCK WASHER,3/8"

36шт.

27

425-106

NUT,3/8"-16, Cl 5

36шт.

28

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

22шт.

29

87235C1

CHAIN

Basket Upper Door

1шт.

30

362123R1

CLIP

Harness

1шт.

30

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Harness

12шт.

31

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

7шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

33

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

2шт.

34

495-81163

WASHER,17/32" x 1 1/2" x .120"

2шт.

Выбрано товаров: 38
