Запчасти Case IH 420 TIER 3 (09D-09) - HANDRAIL, BASKET (16) - BASKET

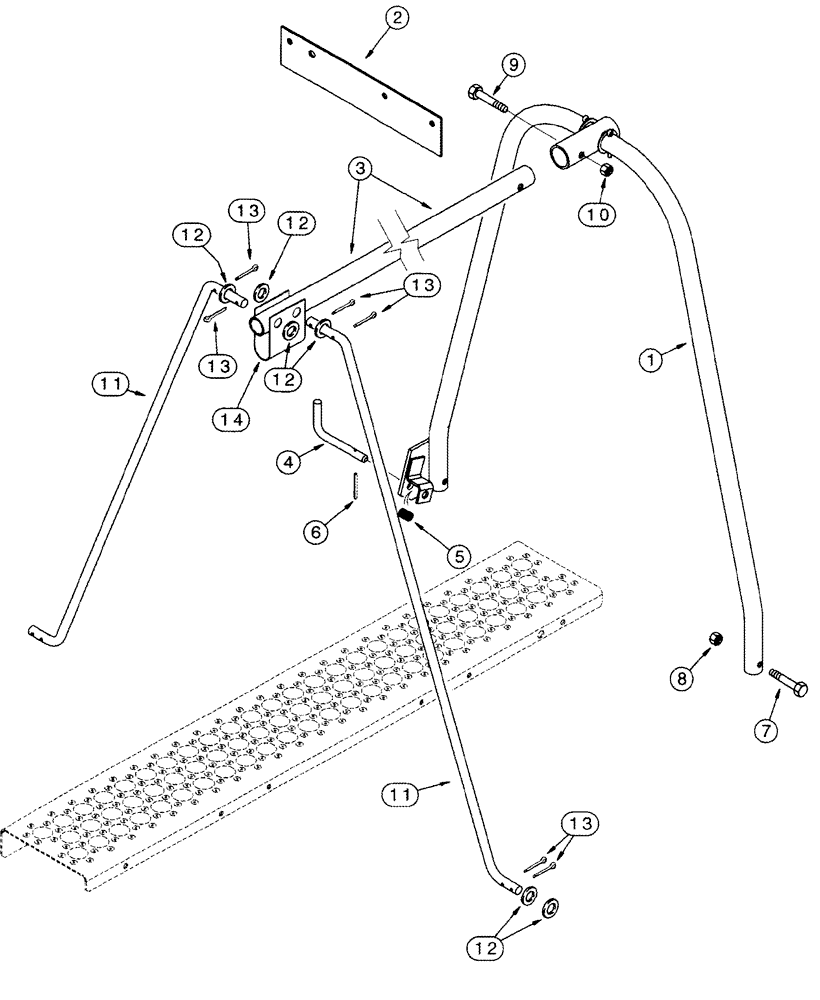

Схема запчастей Case IH 420 TIER 3 - (09D-09) - HANDRAIL, BASKET (16) - BASKET
11
14
13
12
1
13
8
13
12
9
10
4
5
7
12
13
11
6
2
12
3

Артикул

Название

Примечание

Количество

1

234211A2

GRAB RAIL

Front

1шт.

2

244506A2

LARGE PLATE

PLATE, LARGE Front

1шт.

3

228872A3

TUBE,34.92 mm OD

1шт.

4

1319740C2

PIN,3mm OD x 20mm OAL

Ladder Support

1шт.

5

540815R2

SPRING

Latch Pin

1шт.

6

38-1813

LOCK PIN,1/8" x 13/16", Slotted

1шт.

7

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

8

231-1446

NUT,3/8" - 16, Gr 5

2шт.

9

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

10

230-4116

LOCK NUT,3/8"-16, GA

1шт.

11

221411A2

STEM

Rear

2шт.

12

495-11066

WASHER,5/8", SAE

8шт.

13

432-1216

COTTER PIN,3/16" x 1"

8шт.

14

256495A1

SUPPORT

Handrail Lift, Rear

1шт.

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

9шт.

Выбрано товаров: 15
