Запчасти Case IH 420 TIER 3 (02-14) - CYLINDER HEAD AND COVER (01) - ENGINE

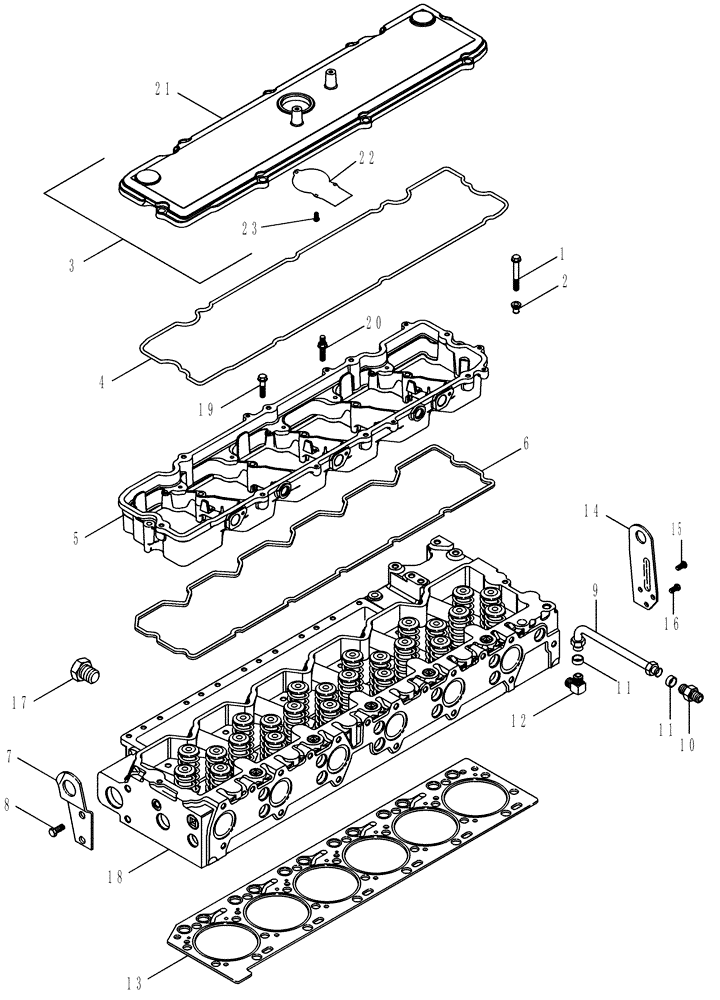

Схема запчастей Case IH 420 TIER 3 - (02-14) - CYLINDER HEAD AND COVER (01) - ENGINE
14
11
1
7
22
16
6
1
13
15
8
3
5
12
20
21
9
2
10
11
17
4
23
18
19
1

Артикул

Название

Примечание

Количество

1

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

7шт.

2

87342136

ISOLATOR

8шт.

3

87345871

VALVE COVER

Assy, Inc. 21-23

1шт.

4

87345861

GASKET,3.2mm Thk

1шт.

5

87344767

HOUSING

Rocker

1шт.

6

87344755

GASKET

Rocker Lever Housing

1шт.

7

87564629

BRACKET

Lift, Front

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

9

J924589

TUBE,6.35 mm OD x 112.6 mm L

Inc. 18

1шт.

10

87026319

HYD CONNECTOR,1/2"-24 x 1/8" NPTF w/Nut

1шт.

11

222-153

SLEEVE,1/4" Tube

2шт.

12

87026320

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

1шт.

13

87737237

CYLINDER HEAD GASKET,1.81mm Thk

Standard

1шт.

14

87340301

LIFTING EYE

Rear

1шт.

15

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

16

87340324

BOLT

1шт.

17

J906619

PLUG,1/8" - 27

1/8 PT

1шт.

18

84233778

CYLINDER HEAD

With Valves

1шт.

See Figure 02-16

1шт.

18

84233778R

REMAN-CYLINDER HEAD

Remanufactured Cylinder Head

1шт.

18

84233778C

CORE-CYLINDER HEAD

Return Part Number

1шт.

19

845-8075

BOLT,Hvy Hex, M8 x 75mm, Cl 8.8

7шт.

20

87340279

SCREW,Hex Flg, M8 x 1.25 x 35mm

M8 x 35

1шт.

21

87345904

COVER

1шт.

22

NSS

NOT SOLD SEPARAT

BAFFLE, Breather

1шт.

23

87345887

SELF-TAP SCREW,Sl Hex Wshr Hd, #6 - 32 x 3/8"

3шт.

Выбрано товаров: 26
