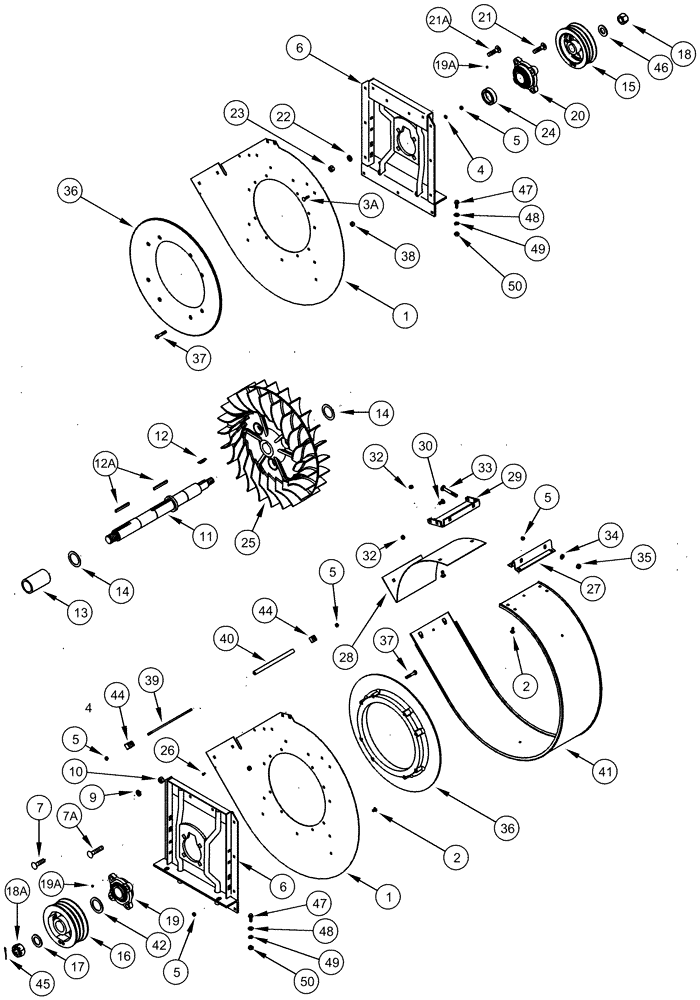

Запчасти Case IH 420 TIER 3 (09C-10) - REAR FAN (15) - HANDLING SYSTEM

450631A1

FAN

Rear, Inc. 1 - 46

1шт.

1

1260066C2

PLATE

2шт.

2

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

30шт.

5

86625061

NUT,1/4"-20, GB

32шт.

6

243038A2

SIDE ASSY.

Fan Side

2шт.

7

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

3шт.

7a

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

4шт.

11

405117A2

SHAFT

Fan Drive

1шт.

12

126-147

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

1шт.

12a

657206R1

KEY,3/8" Sq x 2 3/8", Par

2шт.

13

243037A1

SPACER

1шт.

14

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

2шт.

15

1338322C1

PULLEY

Fan Drive

1шт.

16

450597A1

PULLEY

1шт.

17

396-11131

WASHER,1 5/16" x 2 1/2" x .150"

1шт.

18

86632546

NUT,7/8"-14, GC

1шт.

18a

87355811

SLOTTED NUT

1шт.

19

242834A2

BEARING ASSY,1.708"

Front

1шт.

19a

219-438

ADAPTER,45 Degree, 1/4"-1/8 NPTF

2шт.

20

242834A2

BEARING ASSY,1.708"

Rear

1шт.

21

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

3шт.

21a

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

23

425-108

NUT,1/2" - 13, Gr 5

4шт.

24

86999734

COLLAR,44.48mm ID x 63.5mm OD x 18.3mm W

1шт.

25

243041A1

ROTOR

Fan

1шт.

26

260-1346

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

2шт.

27

204414C1

SUPPORT

Tie Bracket

1шт.

28

204416C1

BAFFLE

Cover

1шт.

29

204415C1

SUPPORT

Bolt Anchor

1шт.

30

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

32

86050277

NUT,5/16"-18, GB

6шт.

33

433-648

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

2шт.

34

495-21038

WASHER,5/16"

2шт.

35

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

2шт.

36

207515C1

BAFFLE

2шт.

37

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

16шт.

38

86050277

NUT,5/16"-18, GB

16шт.

39

215709C1

STUD

1шт.

40

215020C1

PIPE

Fan Housing

1шт.

41

221533C1

COVER

1шт.

42

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

1шт.

44

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

2шт.

45

432-1636

COTTER PIN,1/4" x 2 1/4"

1шт.

46

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

1шт.

47

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

48

495-11053

WASHER,1/2", SAE

4шт.

49

492-11050

LOCK WASHER,1/2"

4шт.

50

429-108

NUT,1/2"-13, G8

4шт.
