Запчасти Case IH 420 TIER 3 (09C-07) - DRUM OUTLET CONVERSION PARTS - FRONT AND REAR (15) - HANDLING SYSTEM

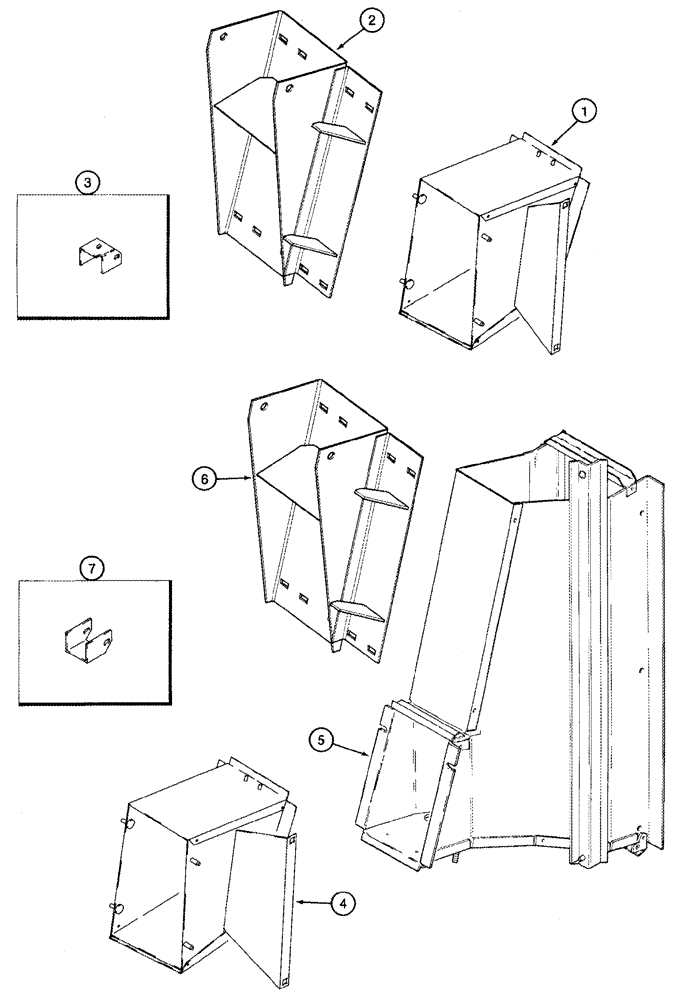

Схема запчастей Case IH 420 TIER 3 - (09C-07) - DRUM OUTLET CONVERSION PARTS - FRONT AND REAR (15) - HANDLING SYSTEM
4
3
7
6
5
1
2

Артикул

Название

Примечание

Количество

1

196912A1

EXTENSION

Front Drum Outlet, No. 2, 34" Row

1шт.

Convert 5 Row Narrow/4 Row Narrow To 34 Inch Row Spacing

1шт.

2

1984168C4

SUPPORT

Rear Outlet Extension

1шт.

Convert 5 Row Narrow/4 Row Narrow To 34 Inch Row Spacing

1шт.

3

199270A1

SUPPORT

Extension, Rear Outlet

1шт.

Convert 5 Row Narrow/4 Row Narrow To 34 Inch Row Spacing

1шт.

4

114666A1

EXTENSION

Front Drum Outlet, No. 2, 36" Row

1шт.

Convert 5 Row Wide To 36 Inch Row Spacing

1шт.

5

1984446C6

HOUSING

Front Outlet

1шт.

Convert 5 Row Wide To 36 Inch Row Spacing

1шт.

6

1984168C4

SUPPORT

Rear Outlet Extension

1шт.

Convert 5 Row Wide To 36 Inch Row Spacing

1шт.

7

1984348C2

SUPPORT

Rear Outlet

1шт.

Convert 5 Row Wide To 36 Inch Row Spacing

1шт.

Выбрано товаров: 14
