Запчасти Case IH 420 TIER 3 (09C-02) - DRUM OUTLETS - FRONT - 4 ROW WIDE, NO. 1, 2, 3 AND 4, 5 ROW NARROW, NO. 5, 4 ROW NARROW NO. 4 (15) - HANDLING SYSTEM

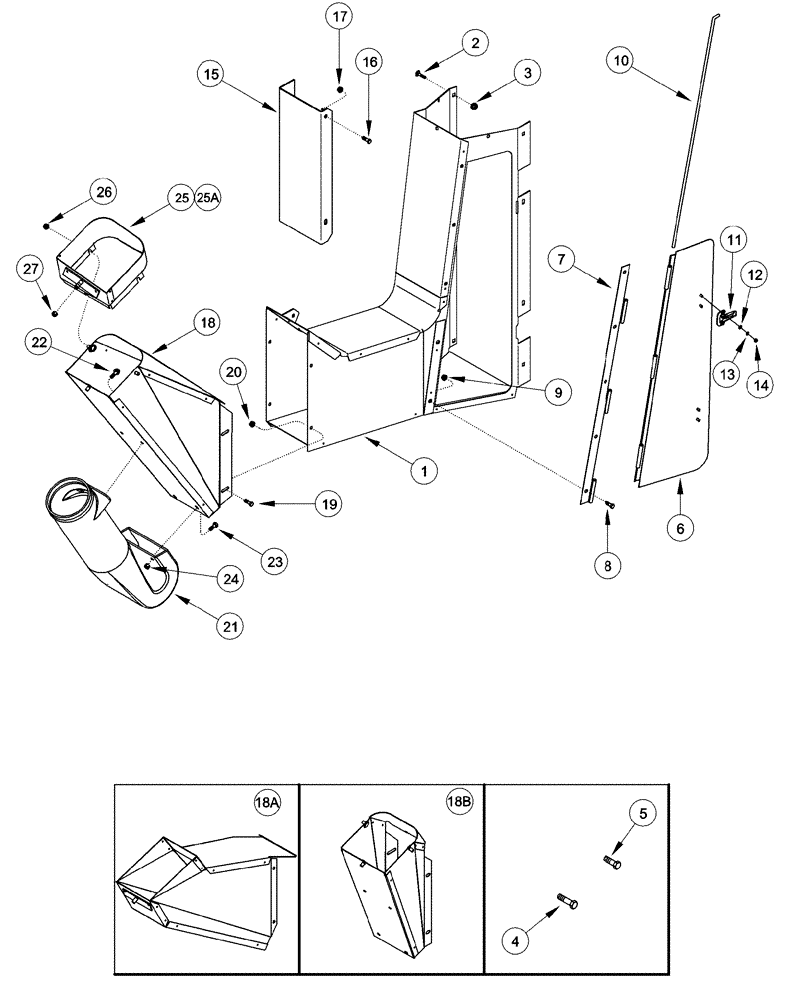

Схема запчастей Case IH 420 TIER 3 - (09C-02) - DRUM OUTLETS - FRONT - 4 ROW WIDE, NO. 1, 2, 3 AND 4, 5 ROW NARROW, NO. 5, 4 ROW NARROW NO. 4 (15) - HANDLING SYSTEM
21
12
20
10
1
5
18a
27
11
19
18
3
15
9
25
6
18b
14
26
16
13
17
2
24
8
25a
7
4
22
23

Артикул

Название

Примечание

Количество

87454857

PACKAGE

Front Outlets, Inc. 1 - 17

1шт.

1

87431913

OUTLET

Drum Outlet, Front, Inc. 6 - 14

1шт.

2

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

3шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

5

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

6

291601A1

DOOR

Front Outlet, Access

1шт.

7

291604A1

HINGE

1шт.

8

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

10

291605A1

PIN,6.35mm OD

1шт.

11

1333780C1

LATCH

2шт.

12

495-31022

WASHER,#10

4шт.

13

492-11010

LOCK WASHER,#10

4шт.

14

225-14210

NUT,#10-32

4шт.

15

280641A1

CHANNEL

1шт.

16

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

431243A1

PACKAGE

Front Extension, Inc. 18, 19, 20

1шт.

431480A1

PACKAGE

Front Extension, Inc. 18A, 19 (4), 20 (4), 27 (1)

1шт.

431496A1

PACKAGE

Front Extension, Inc. 18B, 19, 20

1шт.

18

281769A2

EXTENSION ASSY.

Front Outlet, 4 Row Wide, No. 1 and 4, 5 Row Narrow, No. 5

1шт.

18a

282872A1

EXTENSION ASSY.

Front Outlet, 4 Row Wide, No. 2

1шт.

18b

282308A3

EXTENSION ASSY.

Front Outlet, 4 Row Wide, No. 3

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

431245A1

PACKAGE

Front Nozzles, Inc. 21 - 24

1шт.

21

1984189C2

NOZZLE

Front Long

1шт.

22

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

23

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

431244A1

PACKAGE

Front Transition, Inc. 25, 26, 27

1шт.

431474A1

PACKAGE

Front Transition, Inc. 25A, 26, 27

1шт.

25

1546036C1

ADAPTER

Transition, Front Outlet, 4 Row Wide, No. 1 and 3

1шт.

25a

1546039C1

HOUSING

Transition, Front Outlet, 4 Row Wide, No. 4, 5 Row Narrow, No. 5

1шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

27

231-4116

NUT,3/8"-16, GB

2шт.

Выбрано товаров: 37
