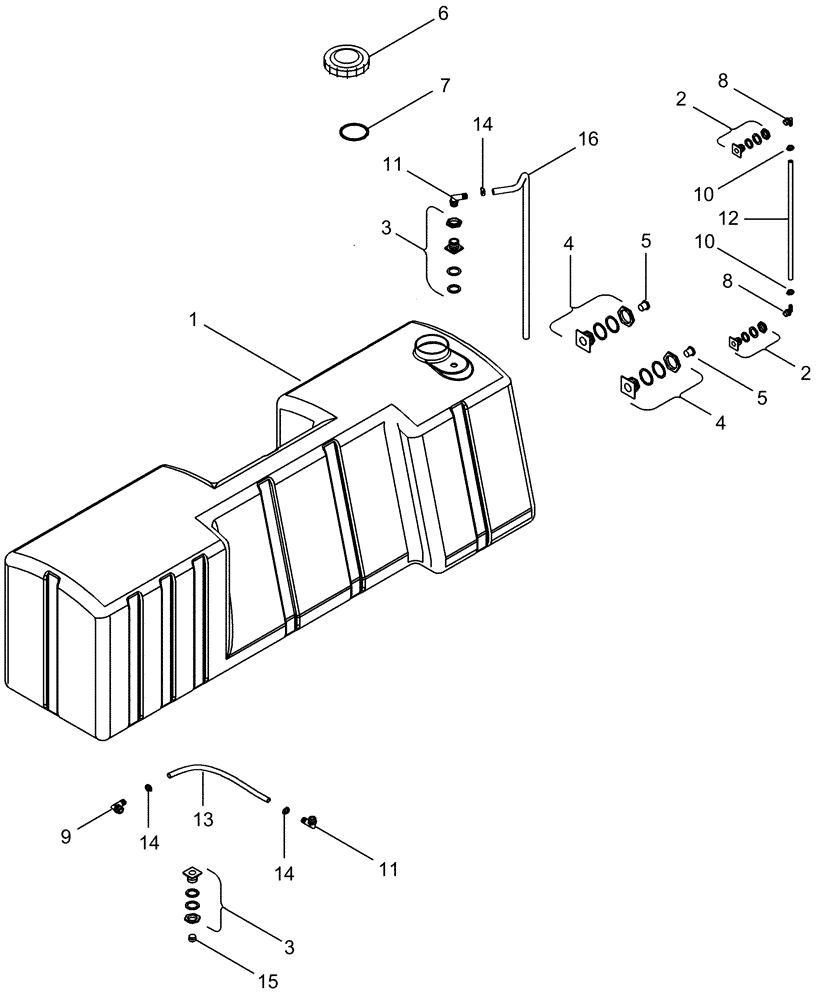

Запчасти Case IH 420 TIER 3 (09B-01) - WATER TANK (14) - WATER SYSTEM

87335117

TANK

Water Tank Service, Inc. 1 - 7

1шт.

1

87316164

TANK

Water, 1362.6 l (360 gal)

1шт.

2

BN311041

FITTING

3/4 PT, Nylon, 4 Piece

2шт.

3

BN2403685

BULKHEAD

1 PT, Plastic, 4 Piece

2шт.

4

BN310720

BULKHEAD

1-1/4 PT, Nylon, 4 Piece

2шт.

5

BN73655

PLUG,1-1/4" Male NPT, Poly

1-1/4 PT, Nylon

2шт.

6

87318697

CAP ASSY.

Inc. 7

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET

1шт.

8

1329210C1

ELBOW

1/2 Stem x 3/4 PT

2шт.

9

134271C2

ELBOW,ELBOW, 90

1 Stem x 3/4 PT

1шт.

10

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

2шт.

11

405229A1

ELBOW

1 PT x 1 barb

2шт.

12

1545978C3

HOSE

Sight Gauge, 686 mm (27"), Cut From 665181R1

1шт.

13

87364052

HOSE,25.40 mm ID x 70.00 mm

Drain, Cut From 414027A1

1шт.

14

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

3шт.

15

86625135

PLUG,1" - 11-1/2 NPT

If Equipped

1шт.

16

87414203

HOSE,25.40mm ID x 1219mm L

1219 mm (48"), Overflow, Cut From 414027A1

1шт.
