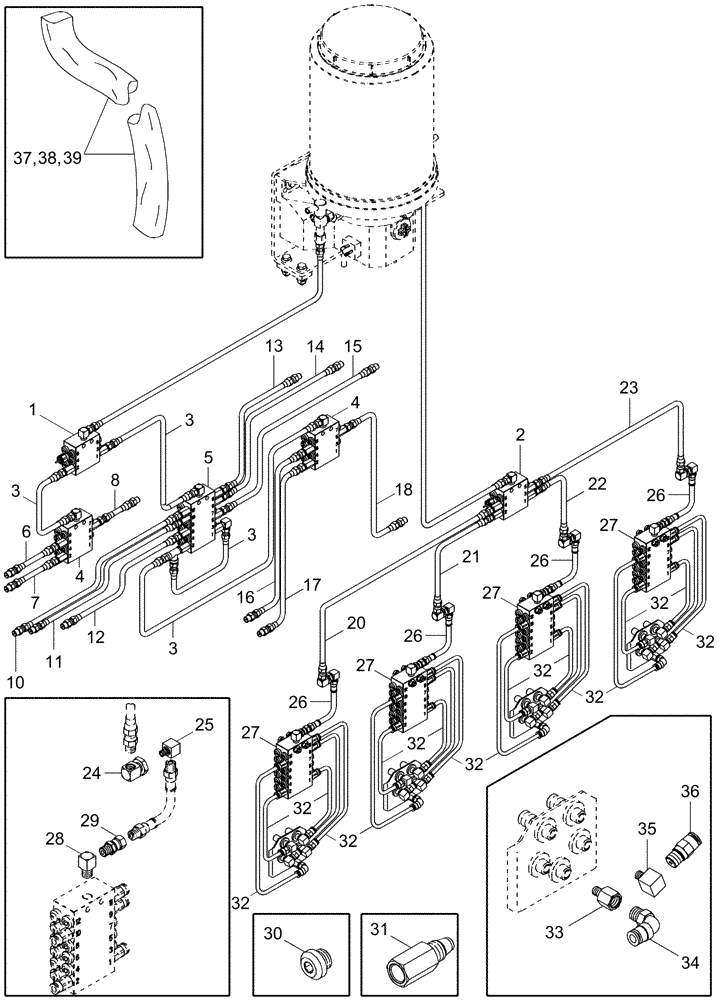

Запчасти Case IH 420 TIER 3 (09A-46) - LUBE LINES - 4 ROW WIDE (13) - PICKING SYSTEM

1

REF

INSTRUCTION

Valve, Chassis Lube

1шт.

See Figure 09A-44, REF 4

1шт.

2

REF

INSTRUCTION

Valve, Drum Lube

1шт.

See Figure 09A-44, REF 4A

1шт.

3

429358A2

HOSE,3.17mm ID x 280mm L, SAE 100R7

Lube

4шт.

4

429617A1

VALVE

Lube, 8 Port w/o Indicator Pin

2шт.

See Figure 09A-44

1шт.

5

429614A1

VALVE

Lube, 12 Port w/o Indicator Pin

1шт.

See Figure 09A-44

1шт.

6

87323246

HOSE,3.17mm ID x 2337mm L, SAE 100R7

Grease Filled, Right Hand Lift Arm Pivot, 2337 mm (92") Long

1шт.

7

87323248

HOSE,3.17mm ID x 4318mm L, SAE 100R7

Grease Filled, Right Hand Toolbar, Retainer Pivot, 4318 mm (170") Long

1шт.

8

87323245

HOSE,3.17mm ID x 3150mm L, SAE 100R7

Grease Filled, Left Hand Lift Arm Pivot, 3150 mm (124") Long

1шт.

10

87323253

HOSE,3.17mm ID x 3023mm L, SAE 100R7

Grease Filled, Front Right Hand Lift Cylinder Pin, 3023 mm (119") Long

1шт.

11

87323255

HOSE,3.17mm ID x 2845mm L, SAE 100R7

Grease Filled, Rear Right Hand Lift Cylinder Pin, 2845 mm (112") Long

1шт.

12

87323258

HOSE,3.17mm ID x 914mm L, SAE 100R7

Grease Filled, Front Fan Idler Pivot, 914 mm (36") Long

1шт.

13

87323251

HOSE,3.17mm ID x 3861mm L, SAE 100R7

Grease Filled, Front Left Hand Lift Cylinder Pin, 3861 mm (152") Long

1шт.

14

87323254

HOSE,3.17mm ID x 3505mm L, SAE 100R7

Grease Filled, Rear Left Hand Lift Cylinder Pin, 3505 mm (138") Long

1шт.

15

87323256

HOSE,3.17mm ID x 2159mm L, SAE 100R7

Grease Filled, Rear Fan Tightener, 2159 mm (85") Long

1шт.

16

87323242

HOSE,3.17mm ID x 1397mm L, SAE 100R7

Grease Filled, Front Fan, Front Bearing, 1397 mm (39-1/2") Long

1шт.

17

87323244

HOSE,3.17mm ID x 1041mm L, SAE 100R7

Grease Filled, Front Fan, Rear Bearing, 1041 mm (41") Long

1шт.

18

87323241

HOSE,3.17mm ID x 2184mm L, SAE 100R7

Grease Filled, Rear Fan, Front Bearing, 2184 mm (86") Long

1шт.

20

87415010

HOSE

Grease Filled, Drum #4 Lube Supply, 5766 mm (227") Long

1шт.

21

87323231

HOSE,4.76mm ID x 4598mm L, SAE 100R7

Grease Filled, Drum #3 Lube Supply, 4166 mm (164") Long

1шт.

22

87323230

HOSE,4.76mm ID x 5385mm L, SAE 100R7

Grease Filled, Drum #2 Lube Supply, 5385 mm (212") Long

1шт.

23

87323228

HOSE,3.17mm ID x 6757mm L, SAE 100R7

Grease Filled, Drum #1 Lube Supply, 6757 mm (266") Long

1шт.

24

429344A1

ELBOW

blkhd 1/8 PT x 1/4 NF

4шт.

25

219-402

ADAPTER,90 Degree, 1/4"-1/8 NPTF

4шт.

26

429348A1

HOSE

Grease Filled, 900 mm (35-7/16") Long

4шт.

429333A1

VALVE

Drum Lube, Inc. 27 - 31

4шт.

27

429614A1

VALVE

Lube, 12 Port without Indicator

1шт.

28

219-82

ELBOW,90 Degree, 1/8"-27

1шт.

29

429343A1

FITTING

1/8 PT sw

1шт.

30

429615A1

PLUG

7шт.

31

700714008

HYD CONNECTOR

5шт.

32

430140A1

TUBE

Grease Filled, 750 mm 29-1/2"), Cut From 430134A1

20шт.

33

429618A1

BUSHING

1/4 NF x 1/8 PT str

4шт.

34

429349A1

ELBOW

1/8 PT x 1/4 sw

4шт.

35

219-402

ADAPTER,90 Degree, 1/4"-1/8 NPTF

16шт.

36

429352A1

FITTING

1/4 tube x 1/8 PT str

16шт.

37

87323278

SLEEVE

Hose Cordura, Left Hand Side

1шт.

38

87323277

HOSE,60.3mm ID x 1220mm L

Hose Cordura, Right Hand Side

1шт.

39

87323276

SLEEVE,60.3mm ID x 1525mm L

Hose Cordura, Right Hand Side

1шт.
