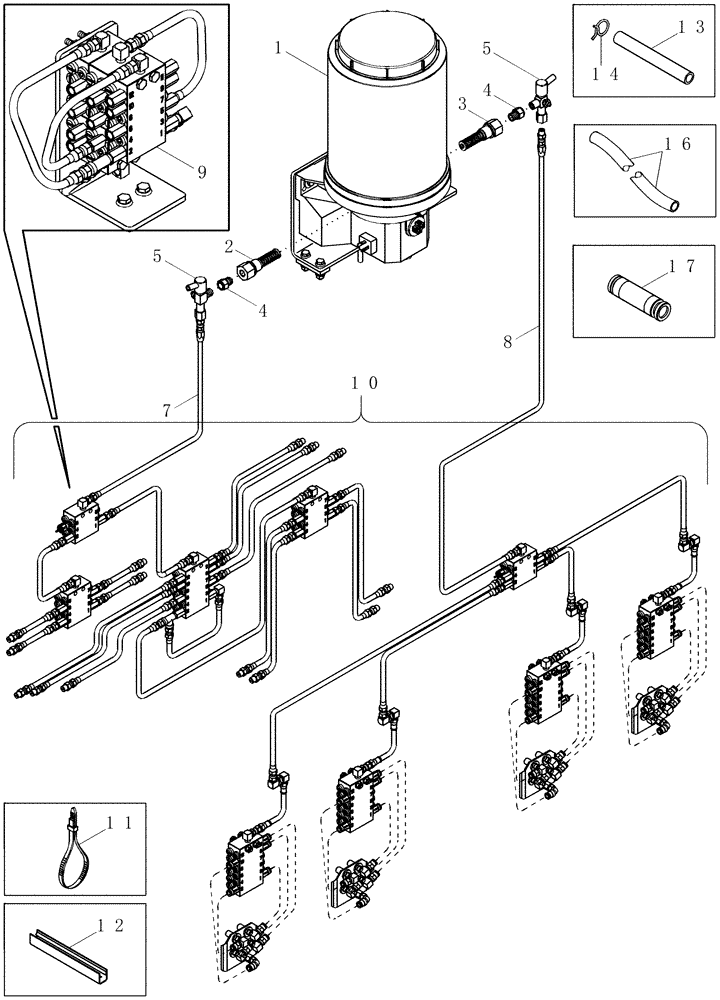

Запчасти Case IH 420 TIER 3 (09A-41) - AUTOMATIC LUBRICATION SYSTEM - 4 ROW WIDE (13) - PICKING SYSTEM

1

429330A1

PUMP

Lincoln Auto Lube

1шт.

See Figure 09A-43

1шт.

2

429340A1

ELEMENT

7 mm

1шт.

3

432854A1

ELEMENT

6 mm

1шт.

4

429341A1

FITTING

2шт.

5

429342A1

VALVE PRESSURE RELIE

2шт.

7

87323227

HOSE,4.76mm ID x 711mm L, SAE 100R7

Chassis Lube Supply

1шт.

8

87323226

HOSE

Drum Lube Supply

1шт.

9

REF

INSTRUCTION

Valve Assembly Complete, Auto Lube

1шт.

See Figure 09A-44

1шт.

10

REF

INSTRUCTION

Lube Lines, 4 Row Wide

1шт.

See Figure 09A-46

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

100шт.

12

195510A1

PROTECTION STRIP

91 mm (3-5/8"), Cut From 1977224CX

4шт.

12

1982349C3

GASKET

Strip Protection, 183 mm (7-1/4"), Cut From 1977224CX

2шт.

12

228634A1

PROTECTION STRIP

89 mm (3-1/2"), Cut From 1330108CX

10шт.

13

431125A1

HOSE

25.4 mm (1") Long, 6.3 mm (1/4) ID

12шт.

14

1988888C1

CLAMP

3/8

12шт.

16

430134A1

TUBE

Grease Filled, 15240 mm (50)

1шт.

Used For Repair of 1/4 in OD Grease Lines Inside Cotton Picker Drum Cabinet with "Push On" Fittings

1шт.

17

448990A1

TUBE,1/4" x 1/4"

1/4" OD, Repair

1шт.

Used For Repair of 1/4 in OD Grease Lines Inside Cotton Picker Drum Cabinet with "Push On" Fittings

1шт.
