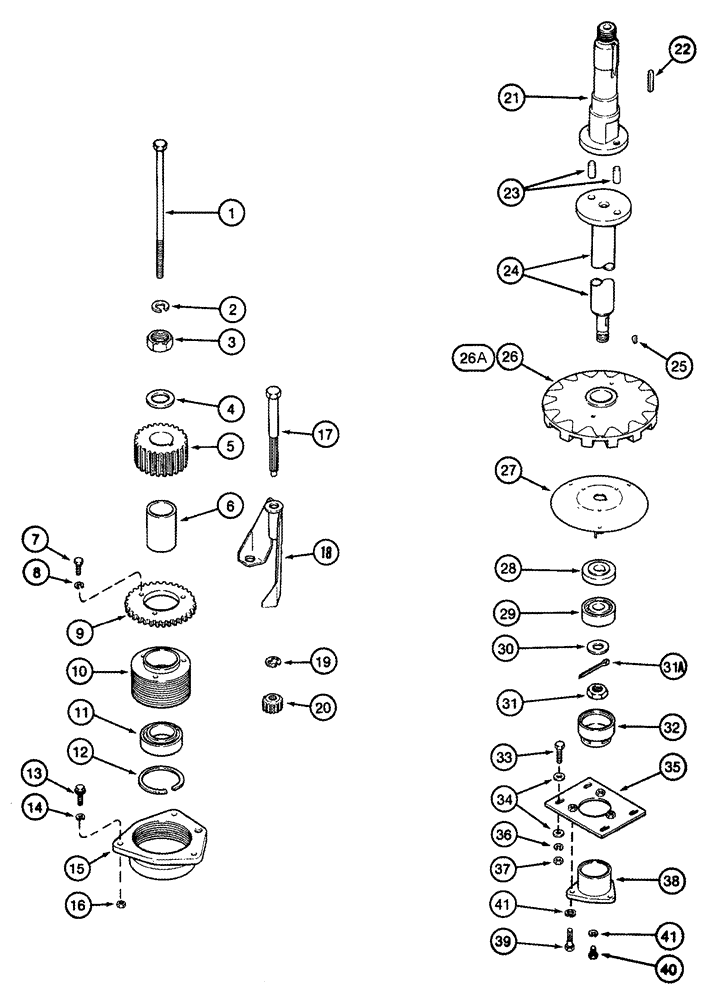

Запчасти Case IH 420 TIER 3 (09A-26) - DOFFER (13) - PICKING SYSTEM

1

413-8168

BOLT,Hex, 1/2" - 13 x 10-1/2", Gr 5

2шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

3

329-1518

JAM NUT,Jam, 1 1/8"-12, G8

2шт.

4

495-81190

WASHER,1.16" ID x 1.75" OD x 0.12" Thk

2шт.

5

87446208

GEAR

36T

2шт.

6

1982420C1

SPACER

35 x 48 x 73

2шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

8

492-11031

LOCK WASHER,5/16"

6шт.

9

1982389C1

GEAR

56T

2шт.

10

1982373C2

ADJUSTMENT SCREW

Adjusting

2шт.

11

662519R91

BALL BEARING,1.5312" ID x 80 mm OD x 1.083"

2шт.

12

49137D

RING, SNAP

RING SNAP Large

2шт.

13

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

6шт.

14

492-11038

LOCK WASHER,3/8"

6шт.

15

1982372C2

FLANGE,121.95 mm ID x 48 mm

Bearing, Drive Shaft

2шт.

16

425-106

NUT,3/8"-16, Cl 5

6шт.

17

1982419C2

BOLT

2шт.

18

1982577C2

SUPPORT

Doffer Adjusting

2шт.

19

100-3362

SNAP RING,#62, .480" Dia, E-Type

2шт.

20

216584C3

GEAR

6шт.

21

1982374C1

SHAFT

2шт.

22

457400R1

KEY,5/16" Sq x 1 3/4", Par

2шт.

123613A1R

SHAFT

Doffer Assembly, White Rubber, Remanufactured

1шт.

123613A1C

DOFFER

Core Return, White Rubber

1шт.

123613A1

SHAFT

Doffer Assembly, White Rubber, Inc. 385835A1 and Ref. 32, Order From Ship Direct B123613A1

2шт.

383429A1

SHAFT

Doffer Assembly, High Yield Urethane, Inc. 23 - 25, 26A, 27 - 31A and 32

2шт.

385835A1

SHAFT

Doffer Assembly, White Rubber, Inc. 23 - 26, 27 - 31A

1шт.

23

37-1614

DOWEL,3/8" x 7/8"

2шт.

24

1982375C1

SHAFT

1шт.

25

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

2шт.

26

123175A1

DOFFER,Assembly, Non Contaminating, White Rubber

White Rubber

18шт.

26a

383311A1

DOFFER

Urethane, High Yield

18шт.

27

1329439C1

DISC

1шт.

28

87282C1

WASHER

Used as a Spacer

1шт.

29

669807R91

BALL BEARING,0.751" ID x 52 mm OD x 0.7"

1шт.

30

495-81039

WASHER,25/32" x 1 1/4" x .120"

1шт.

31

86632554

SLOTTED NUT,3/4"-16, G5

1шт.

31a

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

32

1339066C1

BEARING CAP,48mm ID x 52mm OD x 40.10mm

Protective, Shipping

1шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

34

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

16шт.

35

223977C1

PLATE

Adjusting

2шт.

36

492-11038

LOCK WASHER,3/8"

8шт.

37

425-106

NUT,3/8"-16, Cl 5

8шт.

38

669806R2

CAGE

Bearing, Lower

2шт.

39

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

40

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

41

492-11038

LOCK WASHER,3/8"

8шт.
