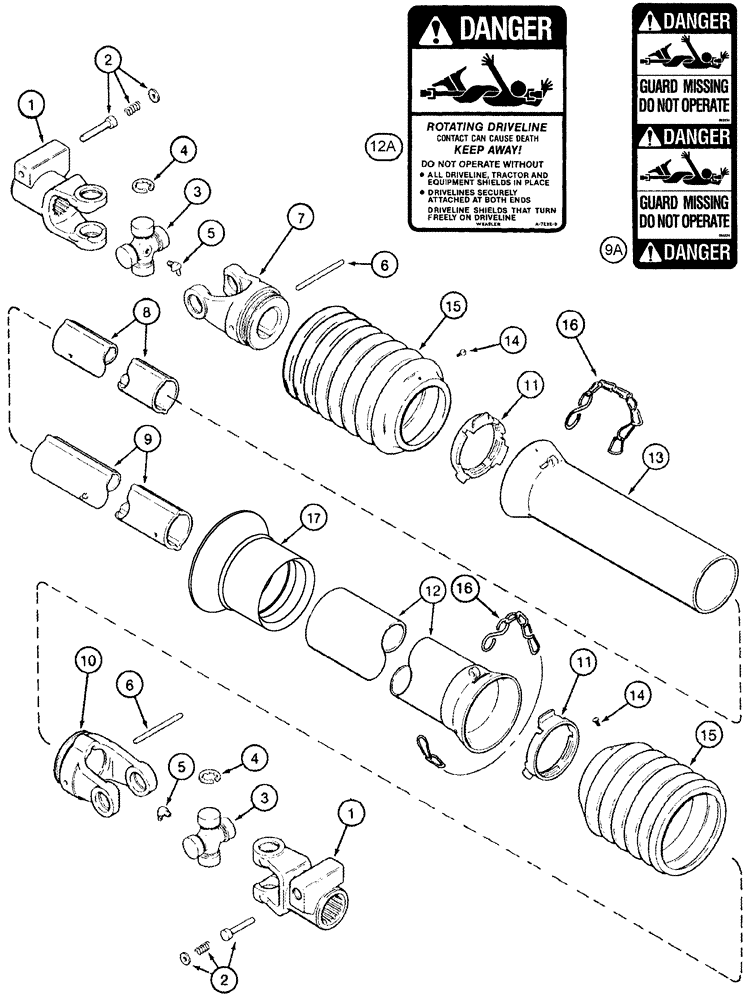

Запчасти Case IH 420 TIER 3 (09A-20) - DRIVE SHAFT - CROSS DRUM - 4 ROW WIDE (13) - PICKING SYSTEM

1984234C5

SHAFT ASSY.

4 Row Wide, Inc. 1 - 16

2шт.

1

293059A1

YOKE

2шт.

2

1281458C1

KIT

Pin

2шт.

1281444C1

KIT

Universal Joint, Inc. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

JOINT, Universal, With Bearing

1шт.

4

NSS

NOT SOLD SEPARAT

RING, Snap

4шт.

5

NSS

NOT SOLD SEPARAT

FITTING, 67-1/2 deg, Grease

1шт.

6

738-11070

LOCK PIN,M10 x 70, Slotted

2шт.

7

1281445C1

YOKE

UNIVERSAL JOINT YOKE Inner Shaft

1шт.

8

293060A2

TUBE,355 mm Length

355 mm Long, Inner Profile

1шт.

9

293061A2

TUBE,340 mm Length

340 mm Long, Outer Profile

1шт.

9a

1326528C1

DECAL

Danger, Guard Missing

1шт.

10

1326493C1

YOKE

UNIVERSAL JOINT YOKE Outer Shaft

1шт.

1984219C1

PACKAGE

10 Grease Fittings (Not Shown)

1шт.

293063A2

PACKAGE

Cross Shaft Shield, Inc. 11 -17

1шт.

11

1281450C1

RING

2шт.

12

NSS

NOT SOLD SEPARAT

SHIELD, Outer

1шт.

12a

80672C1

DECAL

Danger, Rotating Driveline

1шт.

13

NSS

NOT SOLD SEPARAT

SHIELD, Inner

1шт.

14

108884A1

SCREW

Cone Shield

2шт.

14a

NSS

NOT SOLD SEPARAT

DECAL, Warning (Not Shown)

1шт.

15

NSS

NOT SOLD SEPARAT

SHIELD, Cone

2шт.

16

293062A1

CHAIN (CE)

2шт.

17

431792A1

CONE

Guide

1шт.
