Запчасти Case IH 420 TIER 3 (09A-19) - DRIVE SHAFT - CROSS DRUM - 5 ROW NARROW AND 4 ROW NARROW IF EQUIPPED (13) - PICKING SYSTEM

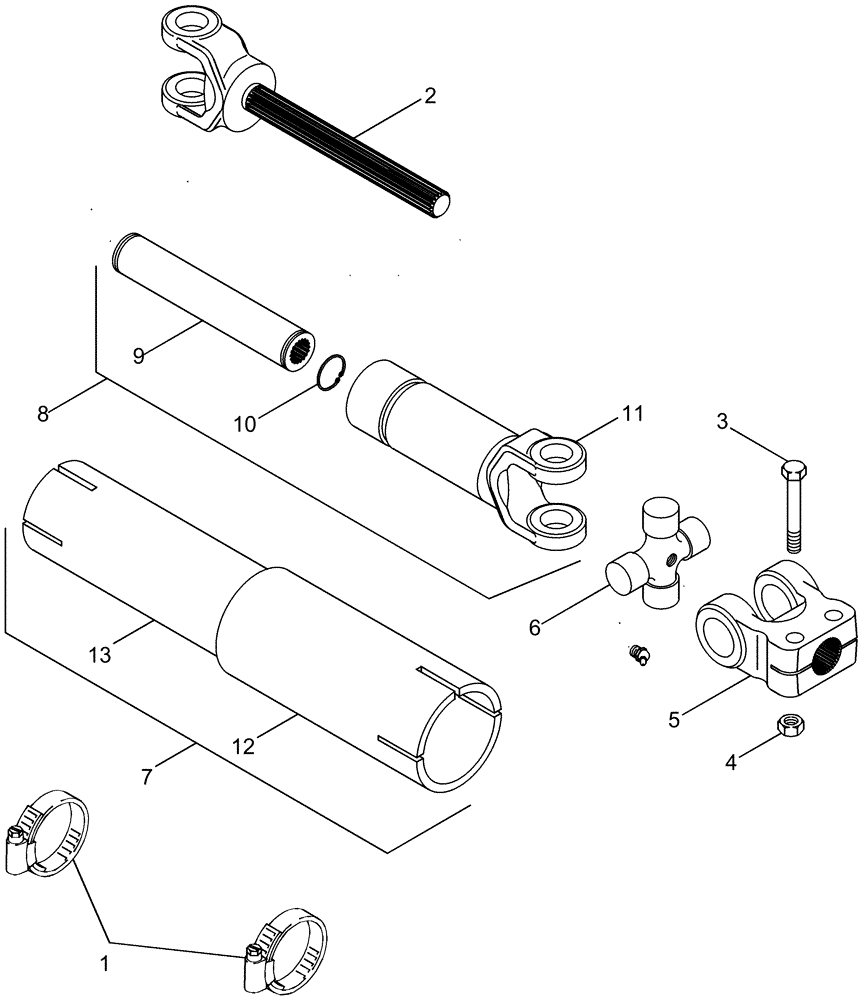

Схема запчастей Case IH 420 TIER 3 - (09A-19) - DRIVE SHAFT - CROSS DRUM - 5 ROW NARROW AND 4 ROW NARROW IF EQUIPPED (13) - PICKING SYSTEM
6
12
9
7
10
8
3
2
13
1
4
5
11

Артикул

Название

Примечание

Количество

87381633

SHAFT

Shaft Assy with Shield, Inc. 2, 5 - 11

4шт.

1

214-3196

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

2шт.

2

87515920

CROSS SHAFT

1шт.

3

426-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

4шт.

4

231-1448

NUT,1/2"-13, GB

4шт.

5

87515918

CROSS SHAFT

2шт.

6

87049178

BEARING ASSY

KIT, Cross and Bearing

2шт.

7

87366145

CROSS SHAFT

Kit, Inc. 12, 13

1шт.

8

87515921

CROSS SHAFT

Inc. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Shaft

1шт.

10

NSS

NOT SOLD SEPARAT

Retaining Ring

2шт.

11

NSS

NOT SOLD SEPARAT

Tube

1шт.

12

87366147

OUTER SHIELD

Cross Drive Shaft

1шт.

13

87366148

INNER SHIELD

Cross Drive Shaft

1шт.

Выбрано товаров: 14
