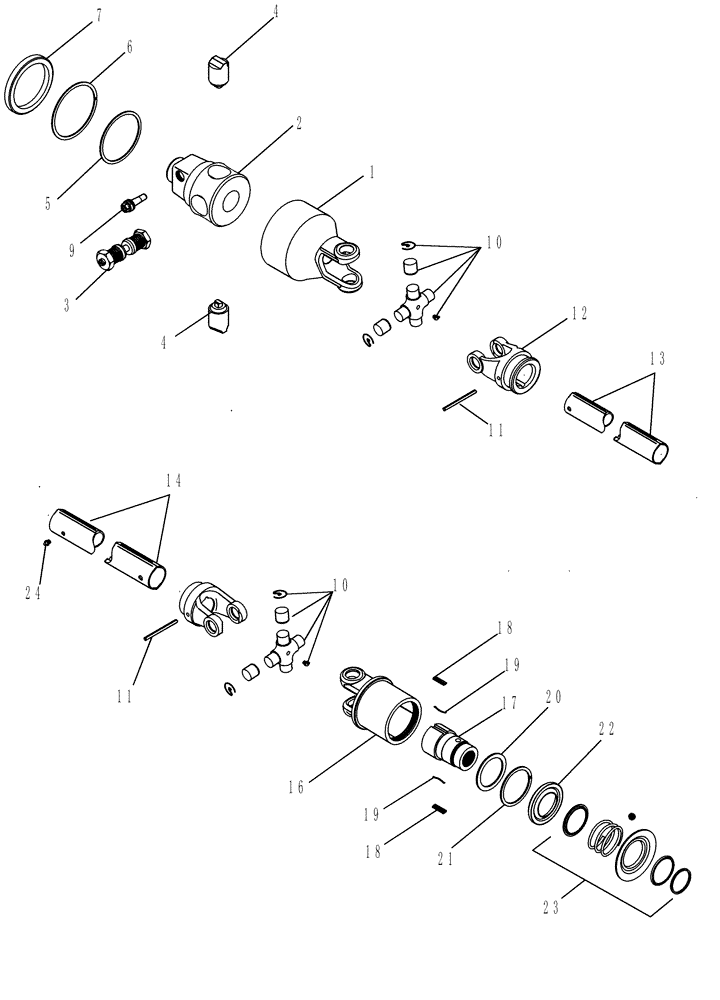

Запчасти Case IH 420 TIER 3 (09A-06) - DRIVE SHAFT - MAIN DRUM, 5 ROW NARROW RIGHT HAND, 4 ROW NARROW RIGHT AND LEFT HAND (IF EQUIPPED) (13) - PICKING SYSTEM

87744336

DRIVE SHAFT

SHAFT, DRIVE, 900 Nm, 5 Row Narrow, Right Hand, 4 Row Narrow Right and Left Hand (Qty 2), Stamped K64/1,Inc 1 - 27

1шт.

87744337

CLUTCH

CLUTCH, 900 Nm, Cut-Out, Stamped K64/1, Inc. 1 - 9

1шт.

1

87471886

YOKE

CLUTCH

1шт.

2

87471884

HUB,21T

1шт.

3

87471882

PACKAGE,SERVICE

SPRINGE PACK ASSY

1шт.

4

87471883

CAM

2шт.

5

906082R1

SHIM,M95 ID x115 OD x 3.5 Thk

1шт.

6

800-21115

SNAP RING,M115, Int

1шт.

7

387871A1

RING

1шт.

8

387872A1

BUSHING

2шт.

9

387861A1

LOCK

1шт.

10

387853A1

SPIDER ASSY.

Universal Joint

2шт.

11

387855A1

PIN

2шт.

12

387856A1

YOKE

UNIVERSAL JOINT YOKE

1шт.

13

387862A1

SHAFT

Inner

1шт.

14

387863A1

SHAFT

Outer

1шт.

15

387859A1

YOKE

UNIVERSAL JOINT YOKE

1шт.

387860A1

CLUTCH

Overrunning, Inc. 16 - 23

1шт.

16

388748A1

CLUTCH HOUSING

1шт.

17

388749A1

HUB,21T

1шт.

18

388750A1

KEY

2шт.

19

388751A1

SPRING, LEAF

2шт.

20

906084R1

SHIM,M56 ID x 72 OD x 3 Thk

1шт.

21

800-2172

SNAP RING

No. 72

1шт.

22

388752A1

RING

1шт.

23

87547C1

KIT

1шт.

24

700707556

NIPPLE, LUBE

NIPPLE

1шт.
