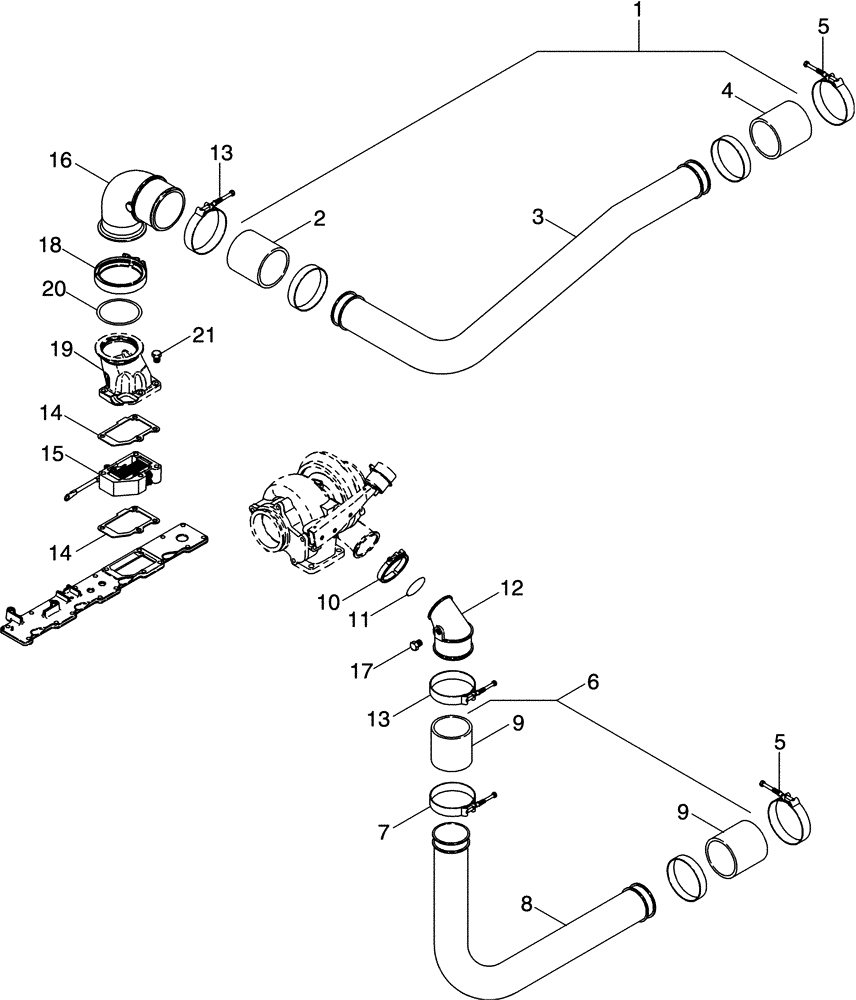

Запчасти Case IH 420 TIER 3 (02-07) - INTAKE SYSTEM, CHARGE AIR COOLER (01) - ENGINE

1

87302166

TUBE

Charge Air Cooler, Cold Side, Inc. 2 - 4

1шт.

2

87402764

HOSE

3"

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE

1шт.

4

87402762

HOSE

4"

1шт.

5

87420676

HOSE CLAMP,108mm - 115.8mm

4"

2шт.

6

87302164

TUBE

Charge Air Cooler, Hot Side, Inc. 8, 9

1шт.

7

87420676

HOSE CLAMP,108mm - 115.8mm

1шт.

8

NSS

NOT SOLD SEPARAT

TUBE

1шт.

9

87402761

HOSE

4"

2шт.

10

J069053

CLAMP,66.54mm ID

Turbo Outlet

1шт.

11

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

12

87301923

ELBOW

Turbo Outlet

1шт.

13

87421230

CLAMP,82.55mm - 90.42mm

2шт.

14

87335272

GASKET

2шт.

15

87753829

HEATER

Air Intake

1шт.

16

87350416

ELBOW

Engine Intake Manifold

1шт.

17

217-84

PLUG,Hex Hd, 1/8"-27, Brass

2шт.

18

J067979

CLAMP

1шт.

19

87340026

AIR INTAKE

1шт.

20

87350420

O-RING,2.62mm Thk x 82.22mm ID

1шт.

21

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

4шт.
