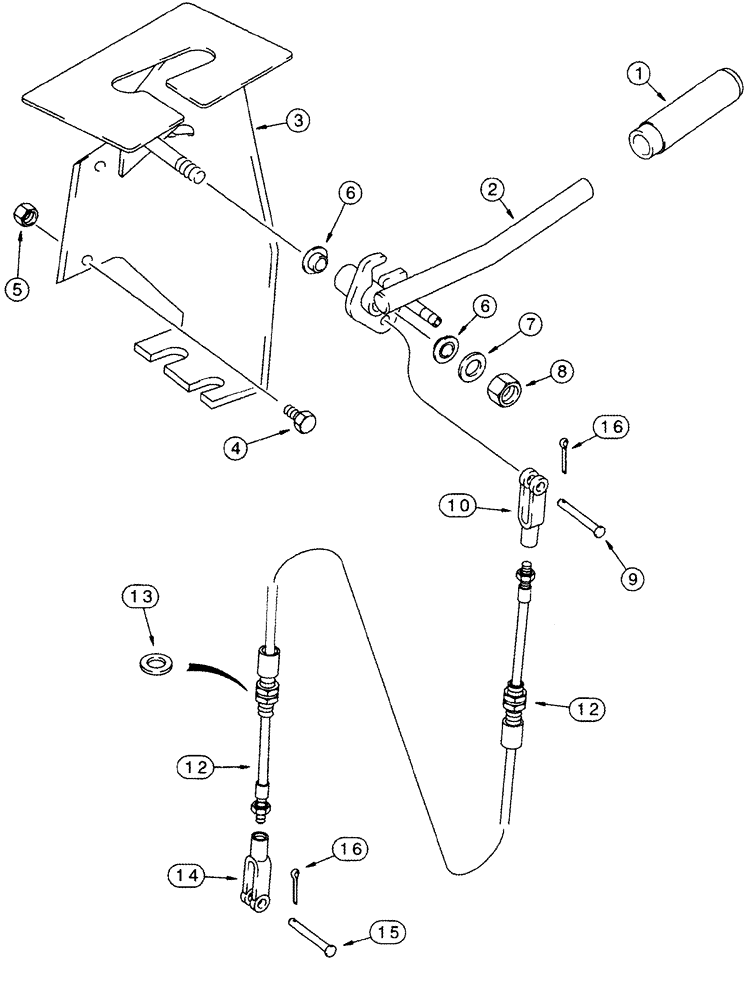

Запчасти Case IH 420 TIER 3 (09A-01) - AUXILIARY DRUM DRIVE CONTROL (13) - PICKING SYSTEM

1

283524A1

GRIP

1шт.

2

127315A2

LEVER

1шт.

3

127325A1

SUPPORT

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

6

S115001

FLANGED BEARING,0.502" ID x 0.627" OD x 0.3125"

2шт.

7

495-11053

WASHER,1/2", SAE

1шт.

8

87530607

NUT

1шт.

9

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

10

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

11

127415A2

DECAL

Drum Engage (Not Shown)

1шт.

See Figure 09F-20, REF 12

1шт.

12

124818A1

CABLE

1шт.

13

495-21081

WASHER,3/4"

1шт.

14

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

15

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

16

432-612

COTTER PIN,3/32" x 3/4"

2шт.

17

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

(Not Shown)

1шт.

18

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

(Not Shown)

3шт.
