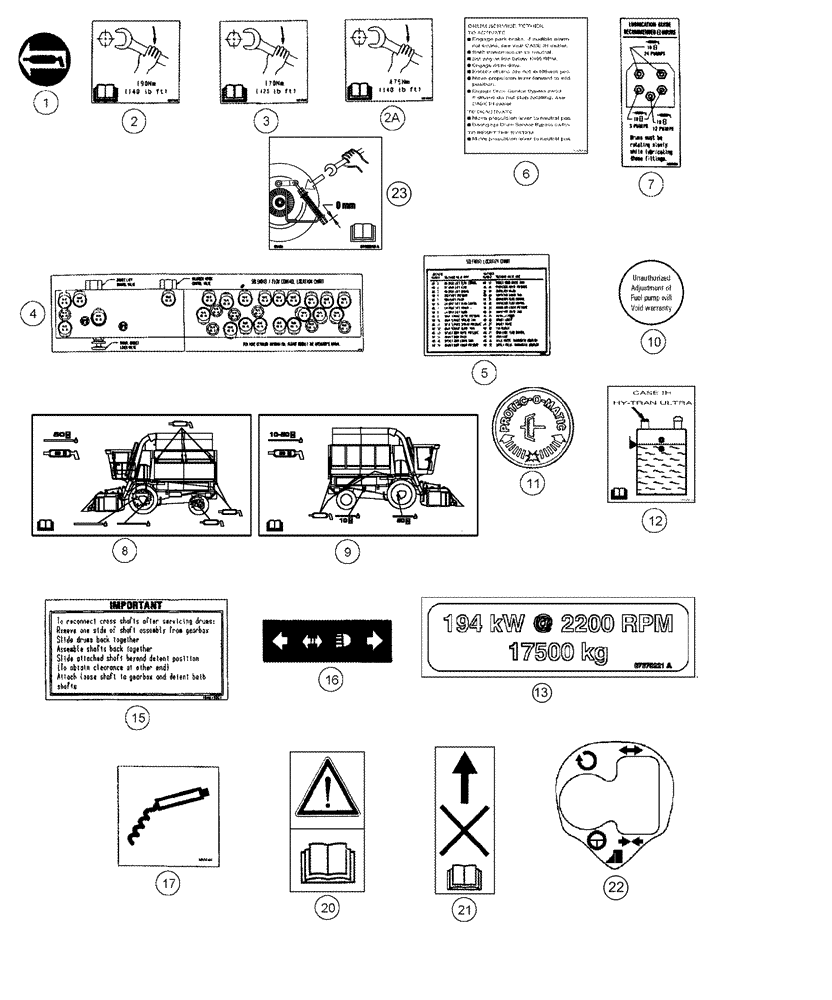

Запчасти Case IH 420 TIER 3 (09F-20) - DECALS - GENERAL INSTRUCTIONS (12) - CHASSIS

1

128490C1

DECAL

Grease Fitting Locator

8-10шт.

2

181916A2

DECAL

Wheel Bolt Torque, Models with Standard Steering

2шт.

2a

181917A2

DECAL

Wheel Bolt Torque, Models with Mud Hog

2шт.

3

181992A1

DECAL

Wheel Bolt Torque

2шт.

4

1546129C1

DECAL

Solenoid/Flow Control Location Chart, English

1шт.

4

302623A1

DECAL

Solenoid/Flow Control Location Chart, Spanish Language, European Models, Latin American Spanish

1шт.

4

302353A1

DECAL

Solenoid/Flow Control Location Chart, Portuguese Language

1шт.

5

1546130C2

DECAL

Solenoid Location Chart, English

1шт.

5

109145A1

DECAL

Solenoid Location Chart, Spanish Language, European Models, Latin American Spanish

1шт.

5

302223A1

DECAL

Solenoid Location Chart, Portuguese Language

1шт.

6

194003A2

DECAL

Drum Service Tether, English

1шт.

6

254902A2

DECAL

Drum Service Tether, Spanish Language, European Models, Latin American Spanish

1шт.

6

302229A2

DECAL

Drum Service Tether, Portuguese Language

1шт.

7

1990032C2

DECAL

Drum Lubrication Guide, Recommended Hours, English

4-5шт.

7

1546225C1

DECAL

Drum Lubrication Guide, Recommended Hours, Spanish Language European Models, Latin American Spanish

4-5шт.

7

302289A1

DECAL

Drum Lubrication Guide, Recommended Hours, Portuguese Language

4-5шт.

8

87417846

DECAL

Lubrication Chart, Left Hand Chassis

1шт.

9

87417845

DECAL

Lubrication Chart, Right Hand Chassis

1шт.

10

184666A1

DECAL

Warranty, Fuel Pump, English

1шт.

10

184669A1

DECAL

Warranty, Fuel Pump, Spanish Language, European Models, Latin American Spanish

1шт.

10

278583A1

DECAL

Warranty, Fuel Pump, Portuguese Language

1шт.

11

1545966C1

DECAL

Protec-O-Matic

1шт.

12

186936A3

DECAL

Hydraulic Oil Level

1шт.

13

87746653

DECAL

Power Rating And Mass, Greek, Turkish, Euro Spanish

1шт.

15

1546103C1

DECAL

Cross Shaft Reconnect, English

4-5шт.

15

254991A1

DECAL

Cross Shaft Reconnect, Spanish Language, European Models, Latin American Spanish

4-5шт.

15

302227A1

DECAL

Cross Shaft Reconnect, Portuguese Language

4-5шт.

16

120332A1

DECAL

Directional Arrows

1шт.

17

186944A1

DECAL

Tether Location

1шт.

20

256147A1

DECAL

Read the Operator's Manual, Spanish Language, European Models

1шт.

21

314781A1

DECAL

Spanish Language, European Models

1шт.

22

87664104

DECAL

Drum Tether

1шт.

23

84168945

DECAL

Front Fan Tensioner Adjustment

1шт.
