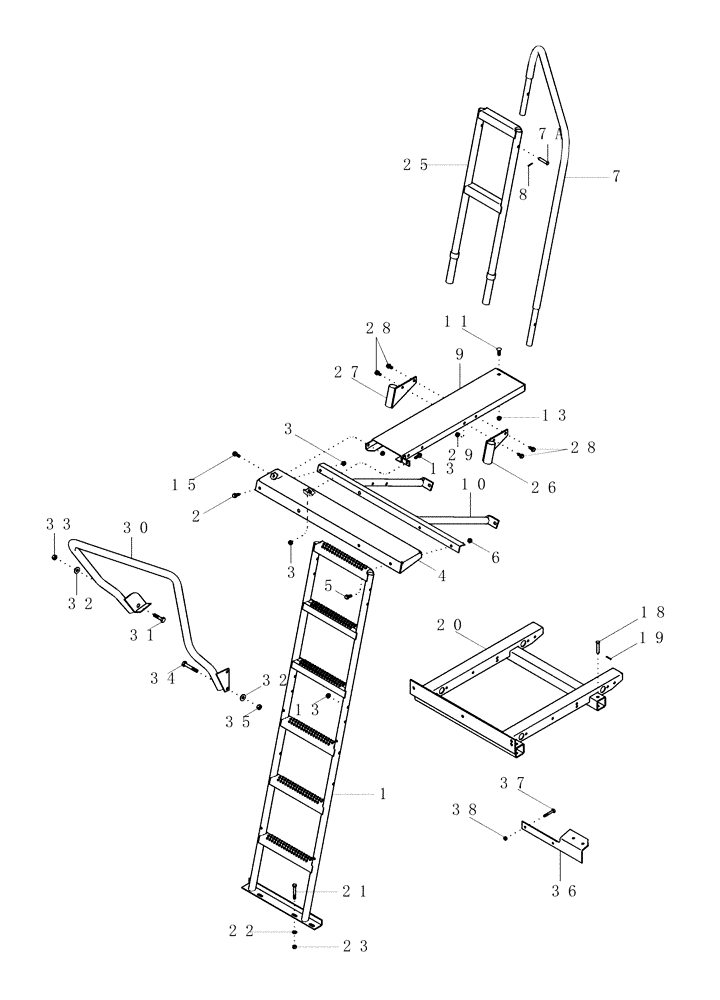

Запчасти Case IH 420 TIER 3 (09F-13) - STEPS - LADDERS (12) - CHASSIS

1

444246A2

LADDER

Basket

1шт.

2

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

87385038

STEP

Basket Ladder, Front

1шт.

5

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

5шт.

6

231-5146

FLANGE NUT,3/8"-16

5шт.

7

277782A1

RAMP

Basket, Upper, Right Hand

1шт.

7a

439-1624

HEADED PIN,3/8" x 1 1/2"

2шт.

8

586591R1

COTTER PIN

2шт.

9

87385036

STEP

Basket Ladder, Rear

1шт.

10

245140A1

SUPPORT

Basket Ladder, Upper

1шт.

11

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

12

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

13

231-5146

FLANGE NUT,3/8"-16

3шт.

15

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

16

231-4116

NUT,3/8"-16, GB

2шт.

18

439-1848

HEADED PIN,1/2" x 3"

2шт.

19

432-1216

COTTER PIN,3/16" x 1"

2шт.

20

1545968C4

SUPPORT

Ladder

1шт.

21

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

3шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

3шт.

23

231-5146

FLANGE NUT,3/8"-16

4шт.

25

245143A3

LADDER

Basket, Upper

1шт.

26

232549A1

SUPPORT

Basket Ladder, Upper, Left Hand

1шт.

27

232550A1

SUPPORT

Basket Ladder, Upper, Right Hand

1шт.

28

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

29

231-5146

FLANGE NUT,3/8"-16

4шт.

30

283089A2

TUBE,579 mm Length

Basket, Lower, Right Hand

1шт.

31

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

32

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

2шт.

33

231-5146

FLANGE NUT,3/8"-16

1шт.

34

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

35

231-4146

NUT,3/8"-16, GB

1шт.

36

259963A1

HOLDER

Mounting, Front, Fire Extinguisher

1шт.

37

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

38

231-5146

FLANGE NUT,3/8"-16

2шт.
