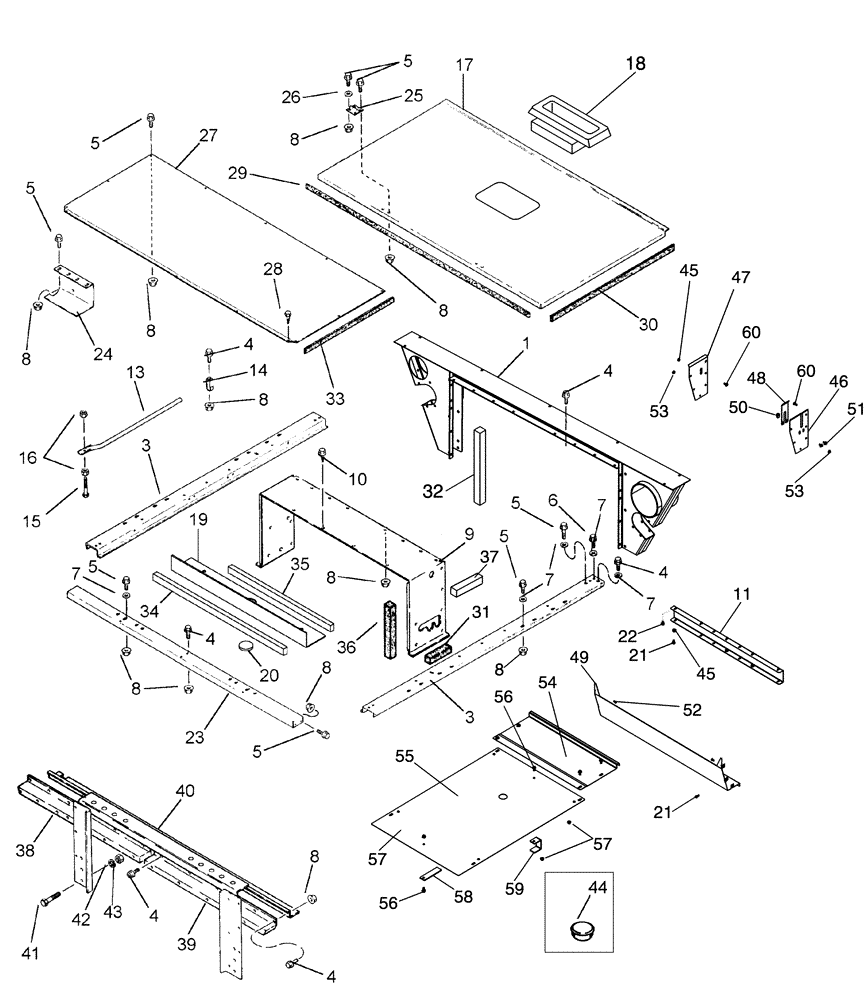

Запчасти Case IH 420 TIER 3 (09F-02) - SHIELDS, ENGINE AND RADIATOR - REAR ACCESS DOOR AND SUPPORTS (12) - CHASSIS

1

87701030

SUPPORT ASSY.

Center Basket

1шт.

3

1260025C5

SUPPORT

Shield, Outer

2шт.

4

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

6

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

10шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

9

393220A1

SHIELD

Upper, Radiator

1шт.

10

281-10810

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

4шт.

11

195388A1

SUPPORT

Lower, Oil Cooler

1шт.

12

495-21044

WASHER,3/8"

5шт.

13

87076C2

SUPPORT

Tube

2шт.

14

86952C1

CLIP,ELECTRICAL

Screen Support

2шт.

15

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

17

87737618

PANEL ASSY.

Center Rear Deck

1шт.

18

3962571

HANDLE

1шт.

19

227202A2

LARGE PLATE

PLATE, LARGE Bolster Seal

1шт.

20

353-424

PLUG,.281" Hole, Nylon

3шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

22

281-10810

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

5шт.

23

1260123C2

CHANNEL

Hinge Support

1шт.

23

47391080

CHANNEL

Hinge Support, Start Year: 04-JAN-13

1шт.

24

87758244

Radiator Hood

2шт.

25

215720C1

HINGE

Shield

2шт.

26

495-11034

WASHER,5/16", SAE

4шт.

27

1990372C1

GUARD

Rear Deck

1шт.

28

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

5шт.

29

87061C1

SEAL

Deck Shields, 1651 mm (65"), Cut From 195917C1

4шт.

30

87060C1

SEAL

Center Rear Deck Shield, 953 mm (37-1/2"), Cut From 87084C1

2шт.

31

1984246C1

GASKET

Upper and Lower Shields, 267 mm (10-1/2"), Cut From 87084C1

2шт.

32

1545942C1

SEAL

552 mm (21-3/4"), Cut From 1264566C1

2шт.

33

1301229C1

SEAL

646 mm (25-7/16"), Cut From 195917C1

2шт.

34

233394A1

GASKET

2шт.

35

246543A1

GUARD

608 mm (24"), Cut From 73215C1

1шт.

36

1278109C1

STRIP

Radiator Support Channel on Main Frame, 376 mm (14-3/4"), Cut From 1264566C1

2шт.

37

1546226C1

SEAL

Main Frame Tube, 160 mm (6-5/16"), Cut From 1264565C1

2шт.

38

1990392C2

CONDUIT

Left Hand Rear

1шт.

39

1990393C2

CONDUIT

Right Hand Rear

1шт.

40

1990376C3

SUPPORT

Rear, Basket

1шт.

41

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

6шт.

42

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

43

425-108

NUT,1/2" - 13, Gr 5

6шт.

44

353-402

PLUG,Dome, .375" hole, Nylon

6шт.

45

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

19шт.

46

87682475

PLATE ASSY.

Left Hand

1шт.

47

87682476

PLATE ASSY.

Right Hand

1шт.

48

87758527

1шт.

49

87682477

BRACKET

1шт.

50

488837C1

SPRING NUT

2шт.

51

409-758

BOLT,Hex Flg, 5/16" - 18 x 1/2", Spcl

2шт.

52

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

6шт.

53

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

54

87757935

Upper, Bolster Floor

1шт.

55

87682349

COVER ASSY

Bolster Floor

1шт.

56

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

57

231-5146

FLANGE NUT,3/8"-16

6шт.

58

87721851

1шт.

59

87721861

Floor Cover

1шт.

60

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

6шт.
