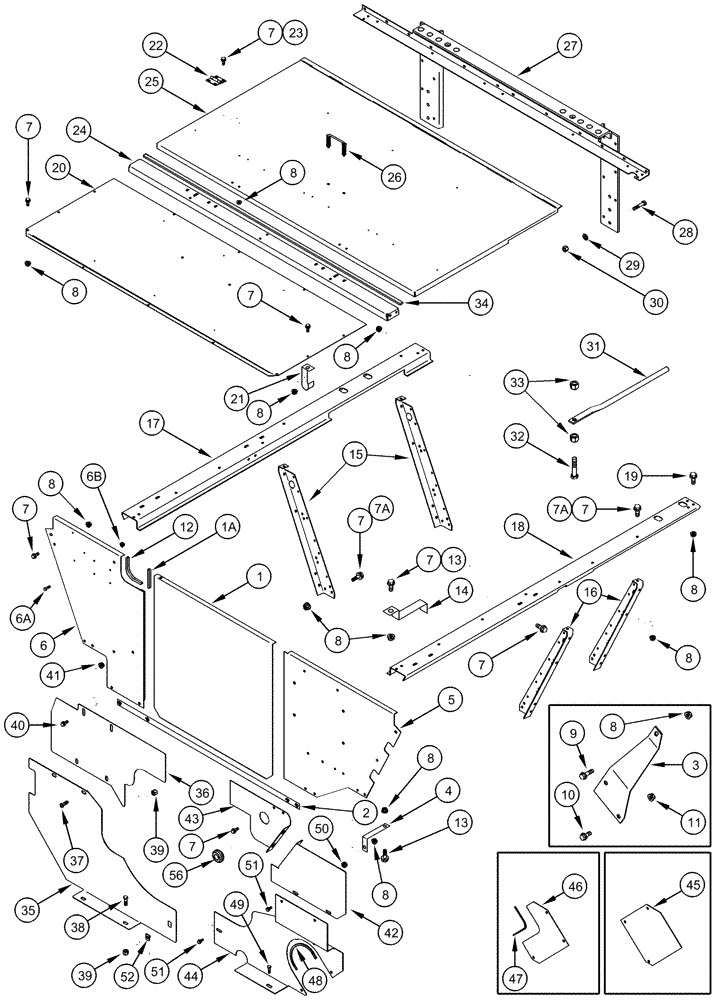

Запчасти Case IH 420 TIER 3 (09F-01) - SHIELDS, ENGINE AND RADIATOR - FRONT ACCESS DOOR AND SUPPORTS (12) - CHASSIS

1

131623A1

SHEET

Shield, Center

1шт.

1a

195510A1

PROTECTION STRIP

Center Panel, 91 mm (3-5/8"), Cut From 1977224CX

1шт.

2

1982302C4

SUPPORT

Shield Bottom

1шт.

3

1982344C1

SUPPORT

Shield, Lower Left Hand

1шт.

4

1982345C3

STRAP

Shield Support, Lower Right Hand

1шт.

5

87319432

PANEL ASSY.

Engine Shield, Right Hand

1шт.

6

87715770

PANEL ASSY.

Engine Shield, Left Hand

1шт.

6

47392283

SIDE PANEL

Engine Shield, Left Hand, Start Year: 04-JAN-12

1шт.

6a

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

6b

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

7a

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

8шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

9

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

1шт.

10

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

11

231-5146

FLANGE NUT,3/8"-16

2шт.

12

1982349C3

GASKET

Engine Shield Panel, 183 mm (7-1/4"), 1977224CX

1шт.

13

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

14

1983143C1

SUPPORT

Shield, Upper Center

3шт.

15

1345113C2

SUPPORT

Screen, Left Hand

2шт.

16

87319430

BRACKET

Screen Support, Right Hand

2шт.

17

413162A1

SUPPORT

Outer Front, Left Hand

1шт.

18

1988831C1

SUPPORT

Outer Front, Right Hand

1шт.

19

477-73808

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1/2"

3шт.

20

1982297C4

PANEL

Center Shield

1шт.

21

86952C1

CLIP,ELECTRICAL

Screen Support

2шт.

22

215720C1

HINGE

Shield

2шт.

23

495-11034

WASHER,5/16", SAE

4шт.

24

1260123C2

CHANNEL

Hinge Support

1шт.

24

47391080

CHANNEL

Hinge Support

1шт.

25

1988799C2

TRAP DOOR

Front Deck

1шт.

26

87408511

HANDLE

Retractable

1шт.

See Figure 09F-02, Ref. 18, 18A - 18D

1шт.

27

1990376C3

SUPPORT

Basket, Front

1шт.

28

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

29

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

30

425-108

NUT,1/2" - 13, Gr 5

6шт.

31

87076C2

SUPPORT

Tube

2шт.

32

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

34

1982348C1

GASKET

1655 mm (65-1/4"), Cut From 87084C1

1шт.

35

275026A4

SHIELD

Trash, Left Hand Lower

1шт.

36

275025A2

SHEET

Trash, Left Hand Upper

1шт.

37

477-73808

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1/2"

2шт.

38

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

39

231-5146

FLANGE NUT,3/8"-16

4шт.

40

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

41

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

86983514

PACKAGE

Air Management System, Inc. 42 - 55, Also Inc. 09F-04, Ref 22, 23

1шт.

42

399505A2

SHIELD

Trash, Right Hand Upper

1шт.

43

399504A2

SHIELD

1шт.

44

399506A3

SHIELD

Trash, Right Hand Lower

1шт.

45

411361A2

COVER

w/o Power Guide Axle

1шт.

46

399507A2

COVER

W/Power Guide Axle

1шт.

47

135370A1

PROTECTION STRIP

194 mm (7-5/8"), W/Power Guide Axle

1шт.

48

413776A1

PROTECTION STRIP

171 mm (6-3/4"), W/Power Guide Axle

1шт.

49

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

50

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.

51

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

52

131-137

SPRING NUT,Ret, 5/16"-18

1шт.

53

216457C2

DECAL

Important, Clean Fan

2шт.

See Figure 09F-21

1шт.

54

87417845

DECAL

Lube Guide, Right Hand

1шт.

See Figure 09F-20

1шт.

55

87417846

DECAL

Lube Guide, Left Hand

1шт.

See Figure 09F-20

1шт.

56

1321767C1

GROMMET

1шт.
