Запчасти Case IH 420 TIER 3 (02-04) - AIR INDUCTION SYSTEM (01) - ENGINE

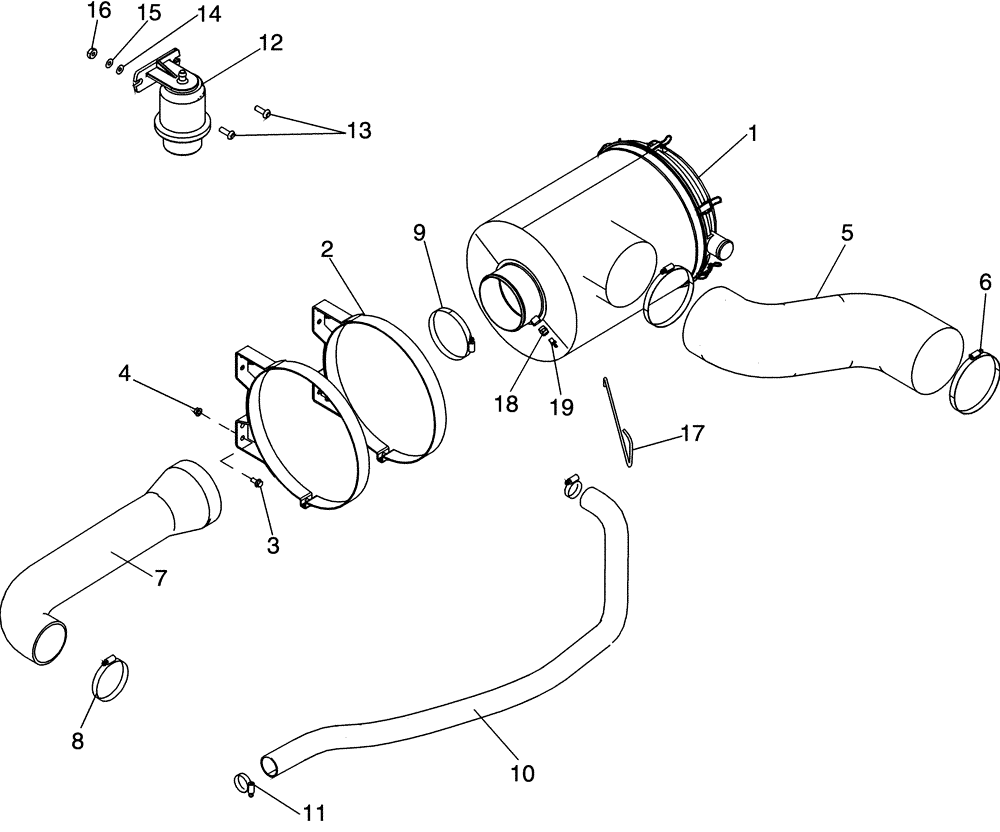

Схема запчастей Case IH 420 TIER 3 - (02-04) - AIR INDUCTION SYSTEM (01) - ENGINE
7
12
15
1
19
3
9
18
14
17
6
4
8
2
10
13
11
5
16

Артикул

Название

Примечание

Количество

1

87733701

AIR CLEANER

1шт.

See Figure 02-05

1шт.

2

87740215

CLAMP

2шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

4

231-5146

FLANGE NUT,3/8"-16

4шт.

5

87740171

INTAKE AIR HOSE,178.00 mm ID x 820.00 mm

1шт.

6

214-32120

HOSE CLAMP,6-3/4" - 7-5/8", HD Worm, W/ Liner

2шт.

7

87740152

HOSE,100.00 mm ID, 154.00 mm ID x 598.40 mm, SAE J20

1шт.

8

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

1шт.

9

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

1шт.

10

87498298

HOSE

Aspirator

1шт.

10

47455621

AIR HOSE,50.8mm ID x 2000mm L

Aspirator, Start Year: 04-JAN-12

1шт.

11

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

2шт.

12

533917C2

GAUGE

1шт.

13

87025547

SCREW,Pan, #8 - 32 x 1/2"

2шт.

14

495-31022

WASHER,#10

2шт.

15

492-11008

LOCK WASHER,#8

2шт.

16

225-14108

NUT,#8-32

2шт.

17

84410C1

LARGE HOSE

HOSE,LARGE

1шт.

18

217-1100

UNION,1/8" - 27 NPT x 1/8" - 27 NPT

1шт.

19

533916C1

FITTING

1шт.

20

REF

INSTRUCTION

Turbocharger Assy

1шт.

See Figure 02-09

1шт.

Выбрано товаров: 23
