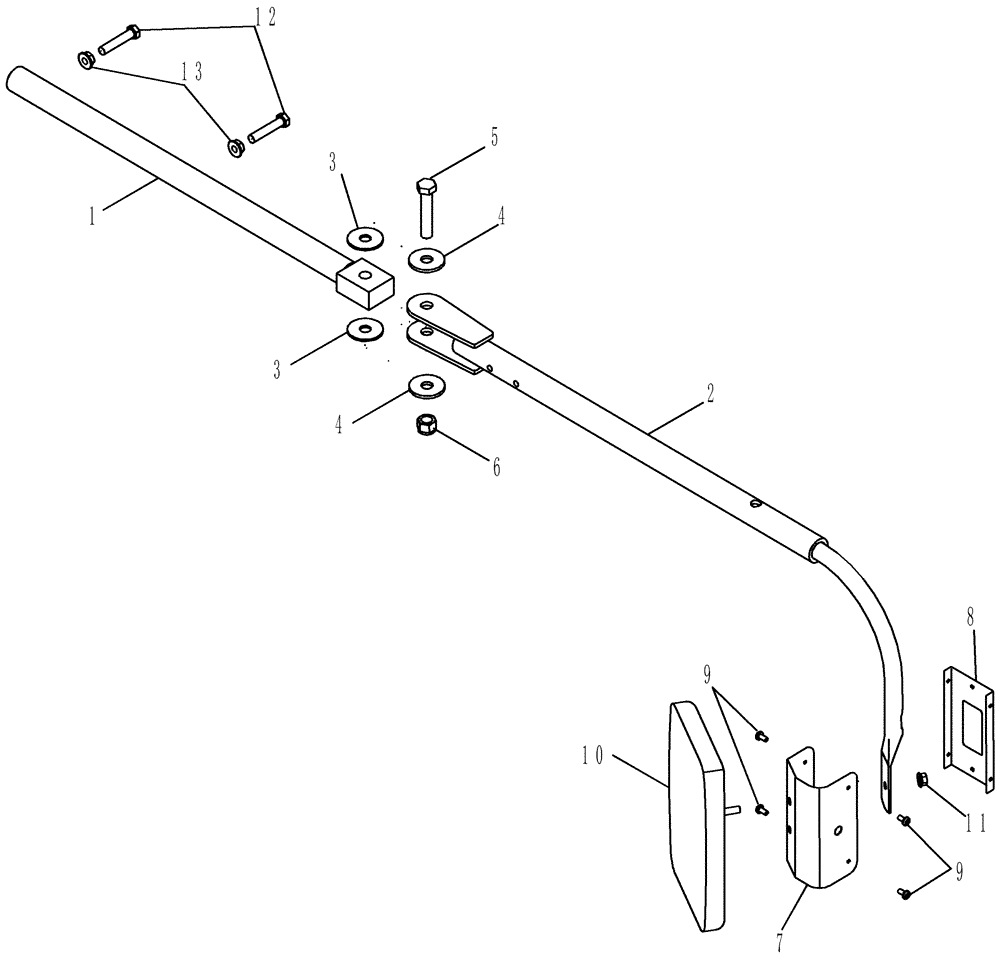

Запчасти Case IH 420 TIER 3 (09E-19) - CAB - MIRROR, REAR VIEW - RIGHT HAND (10) - CAB & AIR CONDITIONING

1

87617888

SUPPORT ASSY.

Inner Mirror, Bar Weldment

1шт.

2

87617911

SUPPORT ASSY.

Outer Mirror Bracket

1шт.

3

87646316

FRICTION WASHER

Mirror Pivot Friction

2шт.

4

495-81030

WASHER,21/32" x 2" x .179"

2шт.

5

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

6

412066

NUT,M16 x 2.0, Cl 8

1шт.

7

291911A1

SUPPORT

Flasher, Light Channel

1шт.

8

127960A1

SUPPORT

Flasher Light

1шт.

9

1321447C1

SELF-TAP SCREW,Cross Pan Hd, 1/4 -20 x 1/2" OAL

4шт.

10

1283403C1

MIRROR

1шт.

11

122379A1

FLANGE NUT

1шт.

12

614-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8, Full Thd

2шт.

13

825-51412

FLANGE NUT,M12, Flg Ser

2шт.
