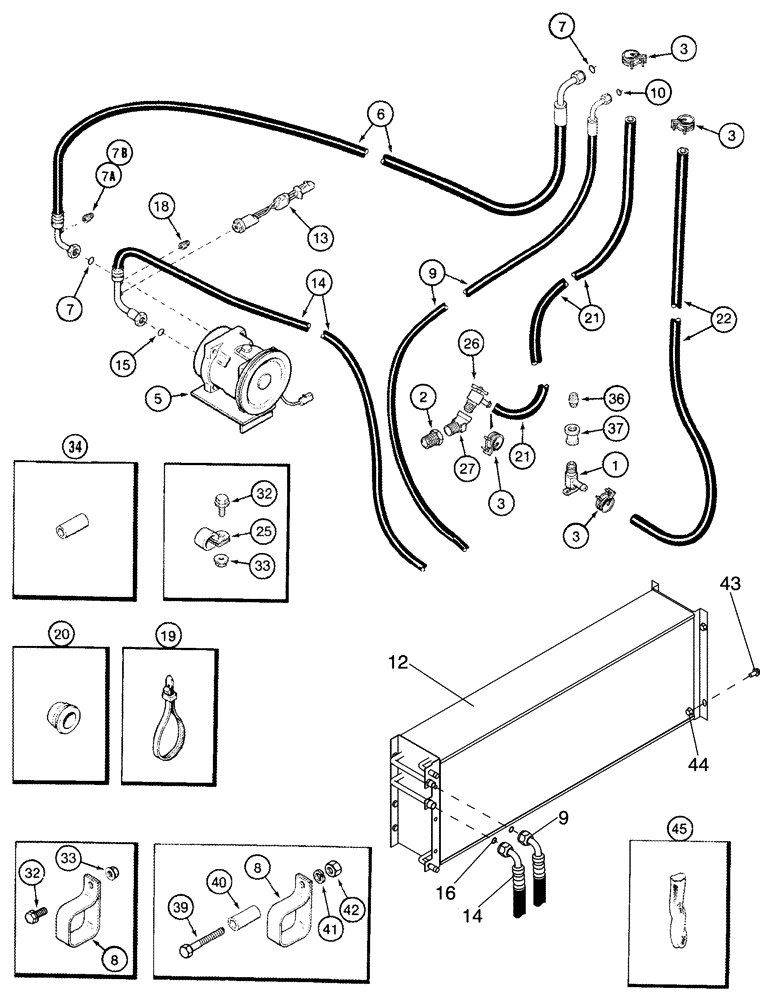

Запчасти Case IH 420 TIER 3 (09E-16) - HEATER - AIR CONDITIONING - CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

1

301803R1

SHUT-OFF VALVE

Heater

1шт.

2

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

3

1954736C1

HOSE CLAMP,#24

Adjustable

4шт.

5

86993462

AIRCOND. COMPRESSOR

1шт.

5

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

86993462R

REMAN-COMPRESSOR

420 TIER 3 (3/08-)

1шт.

86993462C

CORE-COMPRESSOR

48017123

1шт.

5

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

48017123

1шт.

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1999755C3C

CORE-COMPRESSOR

Return Number

1шт.

6

127138A1

HOSE

4175 mm (164-3/8"), Inc. 7, 7A, 7B

1шт.

7

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

7a

1250594C2

CORE

Valve

1шт.

7b

122553A1

CAP

Sealing

1шт.

8

1301387C2

CLIP

2" ID

1шт.

9

127885A1

HOSE

5240 mm (206-5/16"), Inc. 10

1шт.

10

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

12

87682775

COOLER

Air Conditioning, Hose Connectors on Side

1шт.

13

369798A2

SWITCH

High Pressure, Air Conditioning

1шт.

14

127136A2

HOSE

1970 mm (77-1/2"), Inc. 15 - 18

1шт.

15

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

16

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

17

1250594C2

CORE

Valve

2шт.

18

122554A1

CAP

Sealing

1шт.

19

306132C1

CABLE TIE,14.5" L

CABLE STRAP

4шт.

19

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

6шт.

20

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

2шт.

20

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

7/8 ID

2шт.

20

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 ID

2шт.

20

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

1 ID

1шт.

21

140585A1

HEATER HOSE,15.50 mm ID x 3853.00 mm

Cut From 97252CX

1шт.

22

140586A2

HEATER HOSE,15.50 mm ID x 5080.00 mm

Cut From 97252CX

1шт.

25

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

1шт.

26

301803R1

SHUT-OFF VALVE

Heater

1шт.

27

217-18

ELBOW,45 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

1шт.

32

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

34

150596C1

SPACER,1/2" Tube x 1 3/16"

1шт.

36

221-190

PIPE,Nipple, 1/2" NPT x 2"

Straight

1шт.

37

221-1349

COUPLING,Pipe, 1/2" x 3/8" NPT

1шт.

39

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

40

580883R1

SPACER,3/8" Pipe x 3 1/4"

1шт.

41

492-11038

LOCK WASHER,3/8"

1шт.

42

425-106

NUT,3/8"-16, Cl 5

1шт.

43

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

44

231-5146

FLANGE NUT,3/8"-16

3шт.

45

191134A1

HOSE,60.3mm ID x 956mm L

965 mm (38"), Cordura Hose, Use on Air Conditioning and Heater Hoses

2шт.

45

1546371C1

PROTECTOR

Conduit

1шт.
