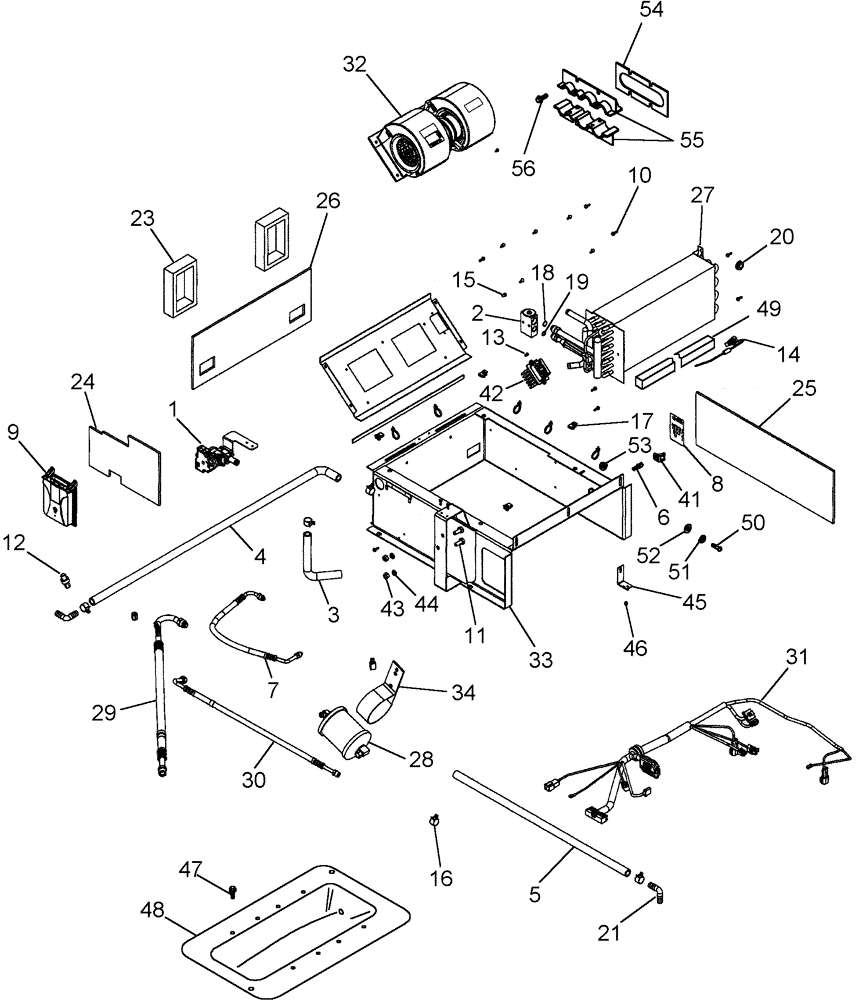

Запчасти Case IH 420 TIER 3 (09E-14) - HEATER/AIR CONDITIONING-EVAPORATOR HEATER CORE AND BLOWER MOUNTING (10) - CAB & AIR CONDITIONING

87313891

UNIT HEATER

Air Conditioning, Inc. 1 - 46, Serial Range: -Y8T013001

1шт.

87673824

UNIT HEATER

Air Conditioning, Inc. 1 - 46, Start Serial: Y8T013001

1шт.

1

87333840

HEATER VALVE,Water Control

Control, Heater

1шт.

449221A1

BODY

Core Assembly, Inc 2,18,19,27

1шт.

2

386535A1

VALVE

Thermal Expansion, Not Serviced Separately, Order 449221A

1шт.

3

377547A1

HOSE,15.50 mm ID

Valve to Core

1шт.

4

377551A1

HEATER HOSE,15.50 mm ID x 838.00 mm

Return

1шт.

5

1958774C1

HEATER HOSE

710 mm (28"), Cut From 97252CX

1шт.

6

87454442

SENSOR

Cab Temperature

1шт.

7

124912A2

HOSE

540 mm (21- 1/4")

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE, Decal Name, Kysor Logo

1шт.

9

87314291

MODULE

ATC, W/Software Loaded, Serial Range: -Y8T013001

1шт.

9

87365492

MODULE

ATC, W/Software Loaded, Start Serial: Y8T013001

1шт.

9

84268957R

REMAN ELECT CONTROL

ATC

1шт.

9

84268957C

CORE-ELECTRONIC CONT

Return Number

1шт.

10

281-54510

SELF-TAP SCREW,HWH, #10 - 24 x 5/8"

15шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

12

87323829

SWITCH, A/C LOW PRES

1шт.

13

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

2шт.

14

184720A2

SENSOR

Temperature, Evaporator

1шт.

15

87333919

CAPTIVE WASHER SCREW,Sl Hex, Tap, #10 - 32 x 3/8"

Taplite Slot

1шт.

16

1954736C1

HOSE CLAMP,#24

6шт.

17

488837C1

SPRING NUT

5/16

4шт.

18

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16, Not Serviced Separately, Order 449221A

1шт.

19

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16, Not Serviced Separately, Order 449221A

1шт.

20

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

1шт.

21

127083A1

ELBOW,16mm OD x 17mm OD Bead

2шт.

22

377566A1

GASKET

3ft

1шт.

23

124999A1

GASKET

2шт.

24

87333847

FOAM INSULATION

LH

1шт.

25

279230A2

INSULATOR

RH

1шт.

26

279233A1

INSULATOR

Front

1шт.

27

377560A1

CORE-COMPRESSOR

Evaporator And Heater, Not Serviced Separately, Order 449221A

1шт.

28

1990758C2

RECEIVER-DRYER

1шт.

29

124913A2

HOSE

900 mm (35-7/16")

1шт.

30

124914A1

HOSE

662 mm (26-1/8"), Receiver-Dryer to Cab Wall

1шт.

31

87333848

WIRE HARNESS

Heating and Air Conditioning

1шт.

32

323610A1

BLOWER

1шт.

32

84222524R

REMAN-BLOWER

1шт.

32

84222524C

CORE-BLOWER

Return Number

1шт.

33

87333857

BOX

Air Conditioning Module

1шт.

34

377562A1

BRACKET

Receiver-Drier

1шт.

35

702093C1

CABLE TIE

CABLE STRAP

6шт.

36

87333863

MOUNTING PLATE

1шт.

37

377559A1

STRAP

2шт.

38

377567A1

SEAL

8ft (Not Shown)

1шт.

39

87333865

FOAM INSULATION

(Not Shown)

1шт.

40

1978896C1

STRAP

30.6" Tie-down (Not Shown)

4шт.

41

87318294

CLIP

Sensor

1шт.

42

87306706

TERMINAL CONNECTOR

Blower Motor

1шт.

43

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

44

892-11010

LOCK WASHER,M10

2шт.

45

87351204

BRACKET

Sensor

1шт.

46

231-14408

NUT,#8-32, GB

1шт.

47

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

14шт.

48

121595A2

PAN

1шт.

49

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

500 mm (19-5/8"), Cut From 1971350C1

2шт.

50

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

3шт.

51

492-11010

LOCK WASHER,#10

7шт.

52

493-81000

LOCK WASHER,Ext-Int Tooth, #10

3шт.

53

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

54

125000A2

GASKET

1шт.

55

125264A2

CLAMP

2шт.

56

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

8шт.
