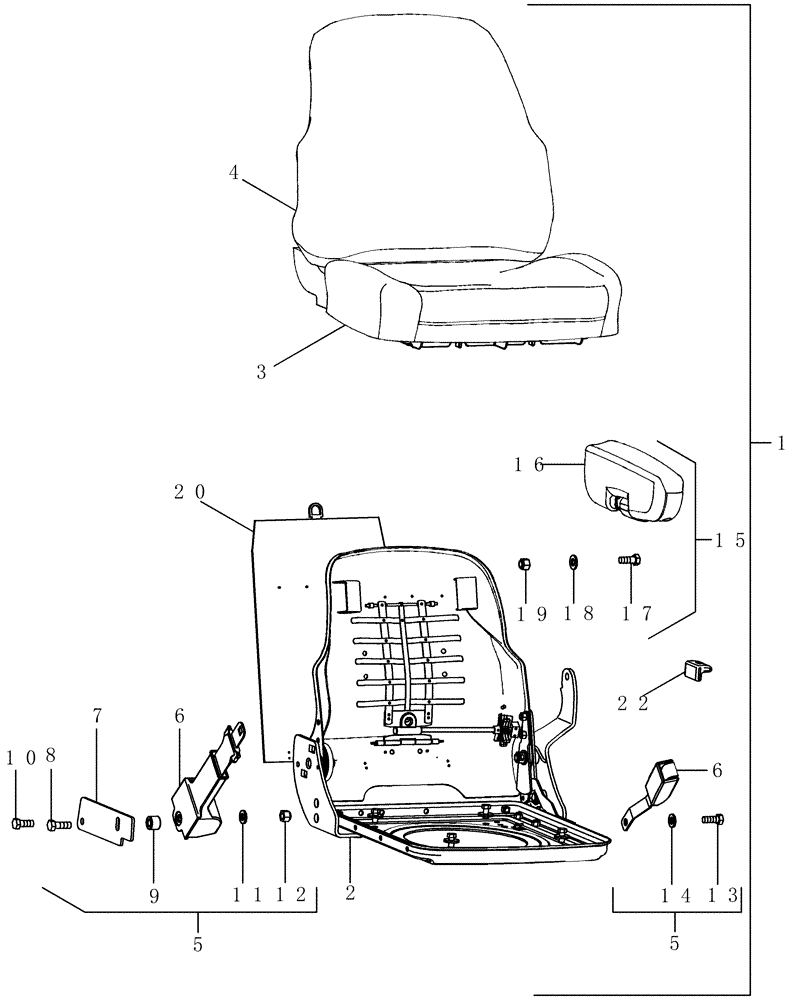

Запчасти Case IH 420 TIER 3 (09E-11) - SEAT, OPERATOR - AIR SUSPENSION, CUSHIONS AND KNOBS (10) - CAB & AIR CONDITIONING
№
Артикул
Название
Примечание
Количество
86989910
SEAT
Inc. 1 - 22, Inc. Figure(s) 09E-12, 09E-13
1шт.
Model Year 2008 And Prior
1шт.
87686695
SEAT ASSY.
Cloth, Fabriform, Inc. 1 - 22, Inc. Figure(s) 09E-12, 09E-13
1шт.
Model Year 2009 And After
1шт.
1
87413044
SEAT
Assy., Top, Inc. 2 - 22
1шт.
Model Year 2008 And Prior
1шт.
1
84151261
SEAT ACCESSORY
Top, Cloth With Fabriform Cushions, In. 2 - 22
1шт.
Model Year 2009 And After
1шт.
2
87416485
KIT
Seat Top
1шт.
3
87416486
SEAT CUSHION
Assy., Cushion, W/Operator's Presence System
1шт.
Model Year 2008 And Prior
1шт.
3
87758013
CUSHION
Kit, Seat, Cloth Fabriform, With Operator's Presence Switch
1шт.
Model Year 2009 And After
1шт.
4
87416487
KIT
Back Cushion
1шт.
Model Year 2008 And Prior
1шт.
4
87758229
CUSHION
Kit, Back, Cloth Fabriform
1шт.
Model Year 2009 And After
1шт.
5
87416490
KIT
Seat Belt, Inc. 6 - 14
1шт.
6
279671A1
SAFETY BELT ,48.00 mm W
1шт.
7
87416920
PLATE
Seat Belt Mounting
1шт.
8
815-12050
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
1шт.
9
NSS
NOT SOLD SEPARAT
SPACER, Mounting Plate
1шт.
10
615-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd
1шт.
11
895-10010
WASHER,11mm ID x 20mm OD x 2mm Thk
1шт.
12
832-41410
NUT,M10 x 1.5, Cl 10
1шт.
13
613-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd
1шт.
14
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
1шт.
15
87416488
KIT
LH Armrest, Incl. 16 - 19
1шт.
Model Year 2008 And Prior
1шт.
15
84120494
ARMREST
Kit, Left Hand, Inc. 16 - 19, Does Not Include Foam Cover
1шт.
Model Year 2009 And After
1шт.
15
87620257
ARMREST
Black Foam Cover, Order With 84120494 Kit
1шт.
16
NSS
NOT SOLD SEPARAT
ARMREST
1шт.
17
854-12040
BOLT,Hvy Hex, M12 x 40mm, Cl 10.9
1шт.
18
395-11053
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
1шт.
19
832-10312
NUT,M12 x 1.75, Cl8
1шт.
20
86994172
SERVICE KIT
Manual Holder
1шт.
21
86994165
SEAT ACCESSORY
Kit, Recliner Service (Not Shown)
1шт.
22
87416475
KNOB
Recliner
1шт.
23
375200A1
PLUG
No Heater Switch (Not Shown)
1шт.
Выбрано товаров: 40
