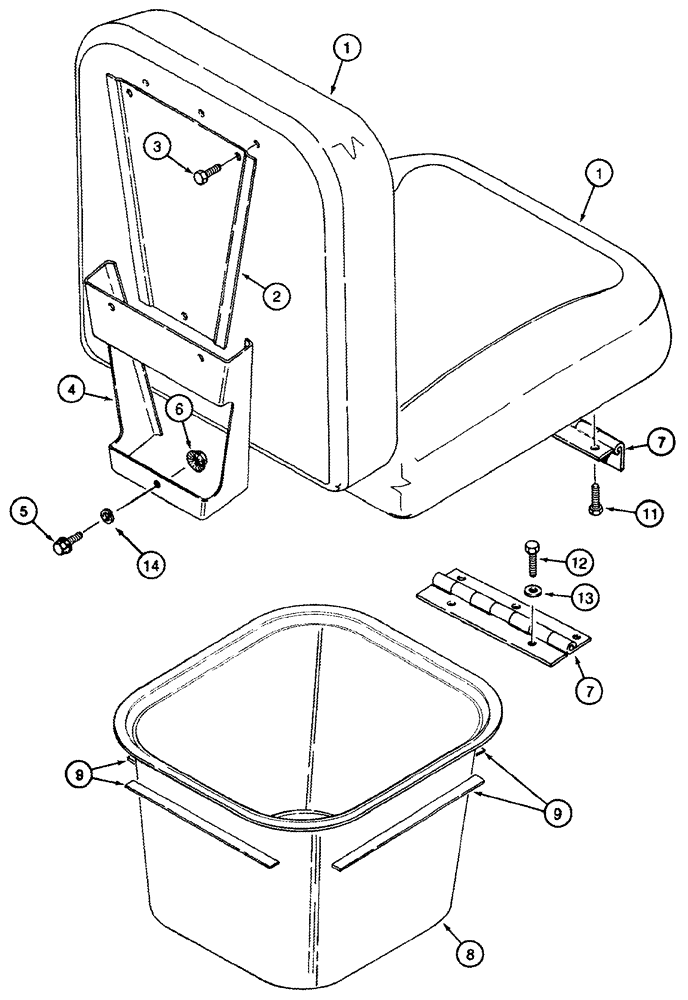

Запчасти Case IH 420 TIER 3 (09E-09) - SEAT, INSTRUCTIONAL - STORAGE TRAY (10) - CAB & AIR CONDITIONING

1

304474A1

CUSHION

Medium Grey

2шт.

Model Year 2008 And Prior

1шт.

1

84129538

SEAT CUSHION

Wheat

2шт.

Model Year 2009 And After

1шт.

2

119890A1

SUPPORT

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

4

119891A1

SUPPORT

1шт.

5

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

3шт.

6

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

7

121062A1

HINGE

1шт.

8

119308A2

TRAY

1шт.

9

187783C1

SEALING STRIP

300 mm (11-13/16"), Cut From 195917C1, If Used

4шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

12

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

14

492-11010

LOCK WASHER,#10

3шт.
