Запчасти Case IH 420 TIER 3 (09E-07) - CAB - INTERIOR (10) - CAB & AIR CONDITIONING

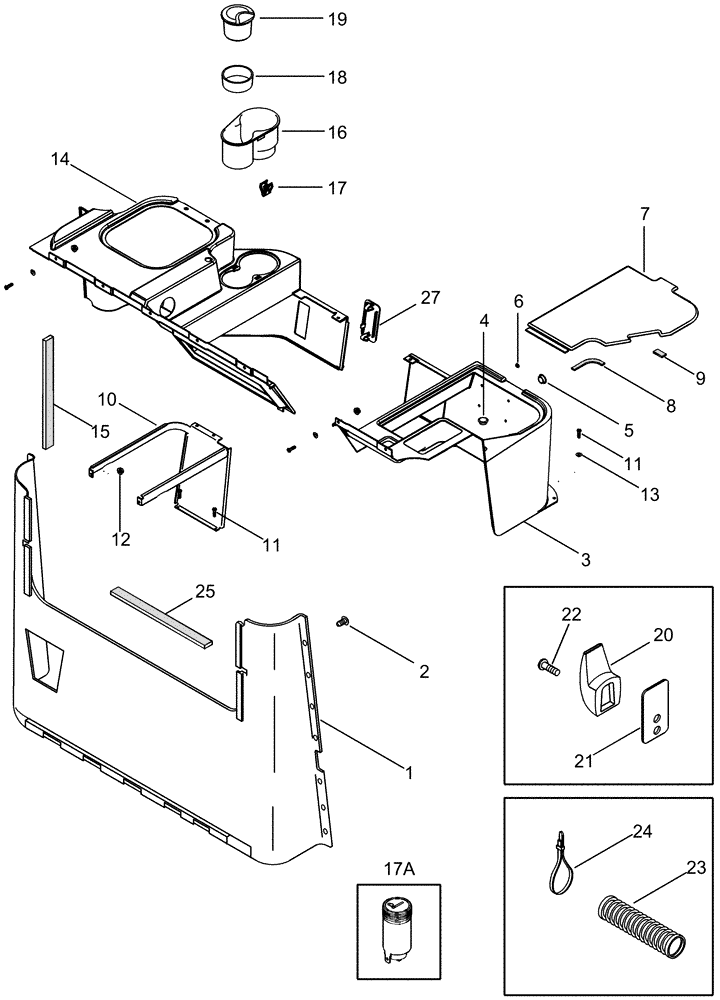

Схема запчастей Case IH 420 TIER 3 - (09E-07) - CAB - INTERIOR (10) - CAB & AIR CONDITIONING
17a
11
11
18
5
14
25
9
4
2
20
10
19
1
24
21
6
13
16
12
27
17
22
3
23
15
7
8

Артикул

Название

Примечание

Количество

1

87369043

PANEL

Rear Trim, Inc. 2

1шт.

Model Year 2008 And Prior

1шт.

1

87714843

PANEL

Rear Trim, Inc. 2

1шт.

Model Year 2009 And After

1шт.

2

121064A1

CLASP

14шт.

3

401088A1

COVER

Pedestal, RH

1шт.

Model Year 2008 And Prior

1шт.

3

87342568

SHIELD

Pedestal, Right Hand

1шт.

Model Year 2009 And After

1шт.

4

353-410

PLUG,Dome, .875" hole, Nylon

1шт.

5

86625129

PLUG,Dome, 1" Hole, Nylon

1шт.

6

353-400

PLUG,Dome, .250" hole, Nylon

4шт.

7

401090A1

COVER

Fuse Access

1шт.

Model Year 2008 And Prior

1шт.

7

87342570

ACCESS COVER

Fuse Access

1шт.

Model Year 2009 And After

1шт.

8

1990258C1

SEAL

80 mm (3-5/32"), Cut From 187874C2

2шт.

9

121067A1

FASTENER

1 x 12, Velcro, Cut From 121068A1

2шт.

10

398456A1

SUPPORT

Pedestal, LH

1шт.

11

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

12

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

13

495-31022

WASHER,#10

11шт.

14

401089A1

COVER

Pedestal, LH

1шт.

Model Year 2008 And Prior

1шт.

14

87342569

COVER

Pedestal, Left Hand

1шт.

Model Year 2009 And After

1шт.

15

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

500 mm (19-5/8")

3шт.

16

401091A1

HOLDER

Cup

1шт.

Model Year 2008 And Prior

1шт.

16

87342571

SHIELD

Cup Holder

1шт.

Model Year 2009 And After

1шт.

17

278316A2

CLIP

2шт.

434227A1

CIGAR LIGHTER

Inc. 17A, 18, 19

1шт.

17a

371831A1

CIGAR LIGHTER

12V

1шт.

18

301901A1

INSERT

Cup Holder

1шт.

19

302456A1

ASH TRAY

1шт.

20

3234176R1

COAT HOOK

1шт.

21

60-6520T1

PLATE

1шт.

22

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

1шт.

23

236586A1

CONDUIT

990 mm (39"), Cable

1шт.

24

1978896C1

STRAP

774.7 mm (30.6")

1шт.

25

118206C1

SEALING STRIP

1шт.

27

302118A1

COVER

1шт.

Выбрано товаров: 43
