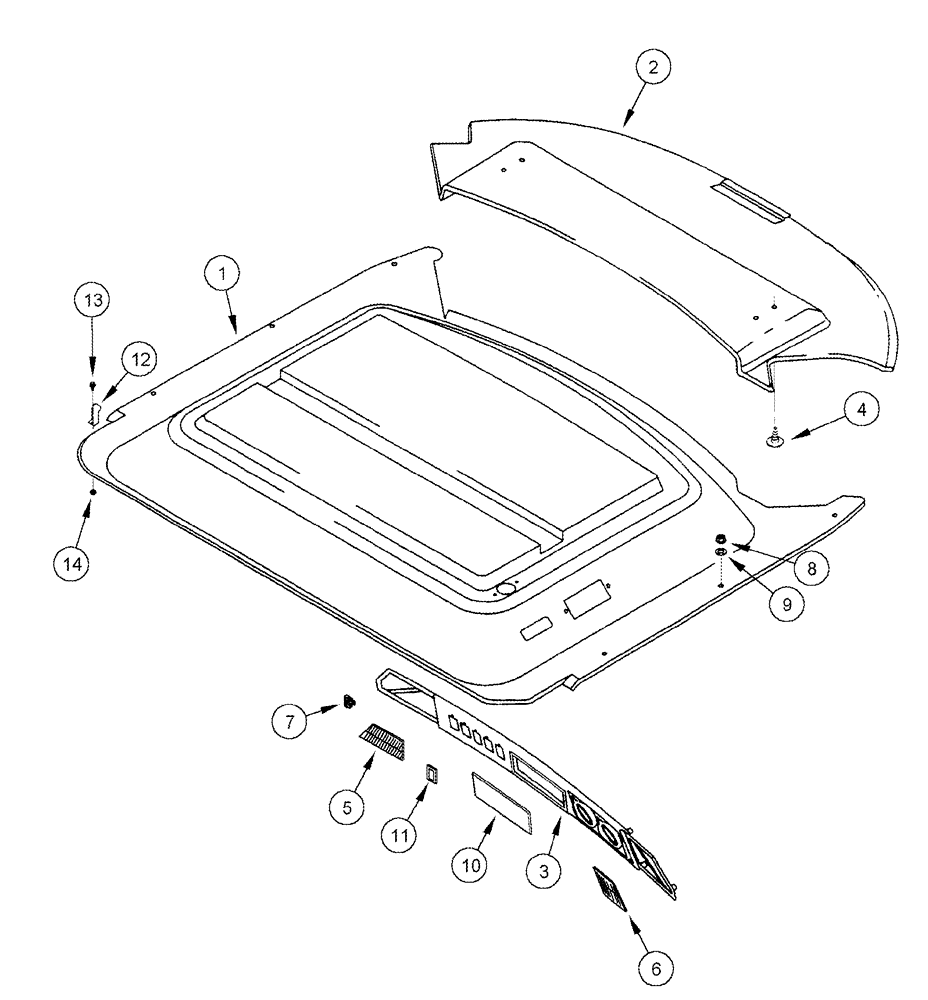

Запчасти Case IH 420 TIER 3 (09E-06) - CAB - HEADLINER (10) - CAB & AIR CONDITIONING

1

87363445

ROOF LINING

Rear

1шт.

Model Year 2008 And Prior

1шт.

1

87388118

LINER

Rear

1шт.

Model Year 2009 And After

1шт.

2

87363444

ROOF LINING

Front

1шт.

Model Year 2008 And Prior

1шт.

2

87388120

LINER

Front

1шт.

Model Year 2009 And After

1шт.

3

87309490

PANEL

1шт.

4

260-16524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

12шт.

5

1971229C2

COVER

LH

1шт.

6

1971349C2

COVER

RH

1шт.

7

97058C1

CLIP

4шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

9

96814C3

WASHER,10mm ID x 22.25mm OD x 2.25mm Thk

6шт.

10

1535219C1

COVER

1шт.

11

245918C1

LENS

Blank Slot

1шт.

12

87718124

CLIP

2шт.

13

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

2шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.
