(09E-04) - CAB - REAR WINDOW

Запчасти Case IH 420 TIER 3 (09E-04) - CAB - REAR WINDOW (10) - CAB & AIR CONDITIONING

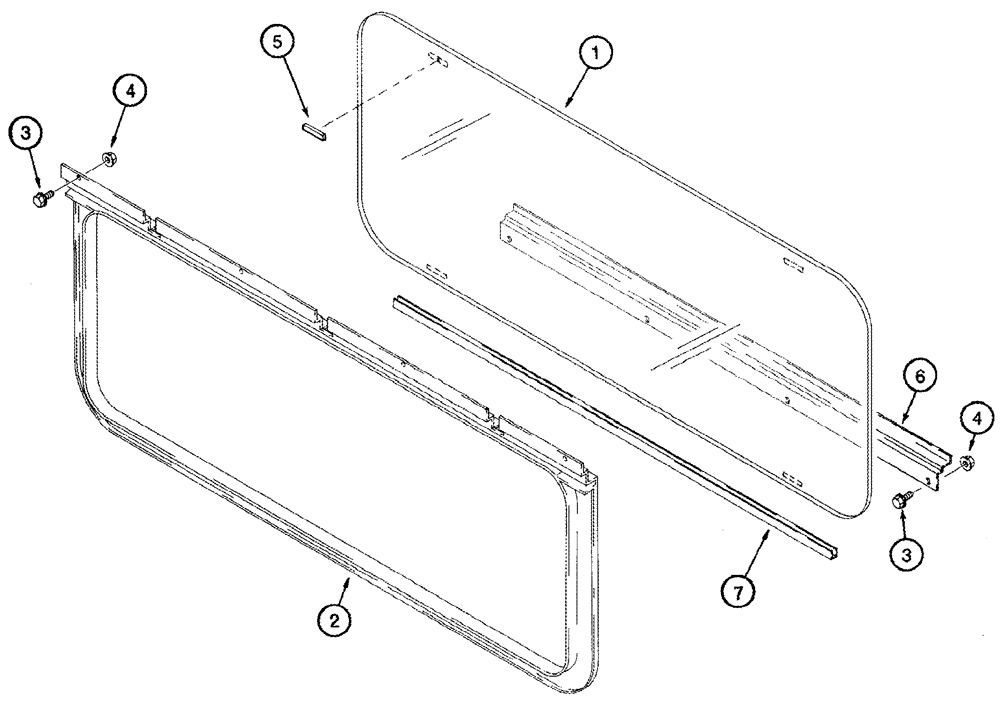

Схема запчастей Case IH 420 TIER 3 - (09E-04) - CAB - REAR WINDOW (10) - CAB & AIR CONDITIONING
4
7
2
6
3
5
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

117725A2

GLASS,CAB

Rear Window

1шт.

2

122722A2

FILLING STRIP

Rear Window

1шт.

Model Year 2008 And Prior

1шт.

2

87714844

FOAM INSULATION

Rear Window

1шт.

Model Year 2009 And After

1шт.

3

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

8шт.

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

4шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

5

97268C1

SPACER

4шт.

6

117726A1

SUPPORT

Window Frame

1шт.

7

118185A1

PROTECTOR

1000 mm (39-3/8"), Cut From 2-6789T1

1шт.
