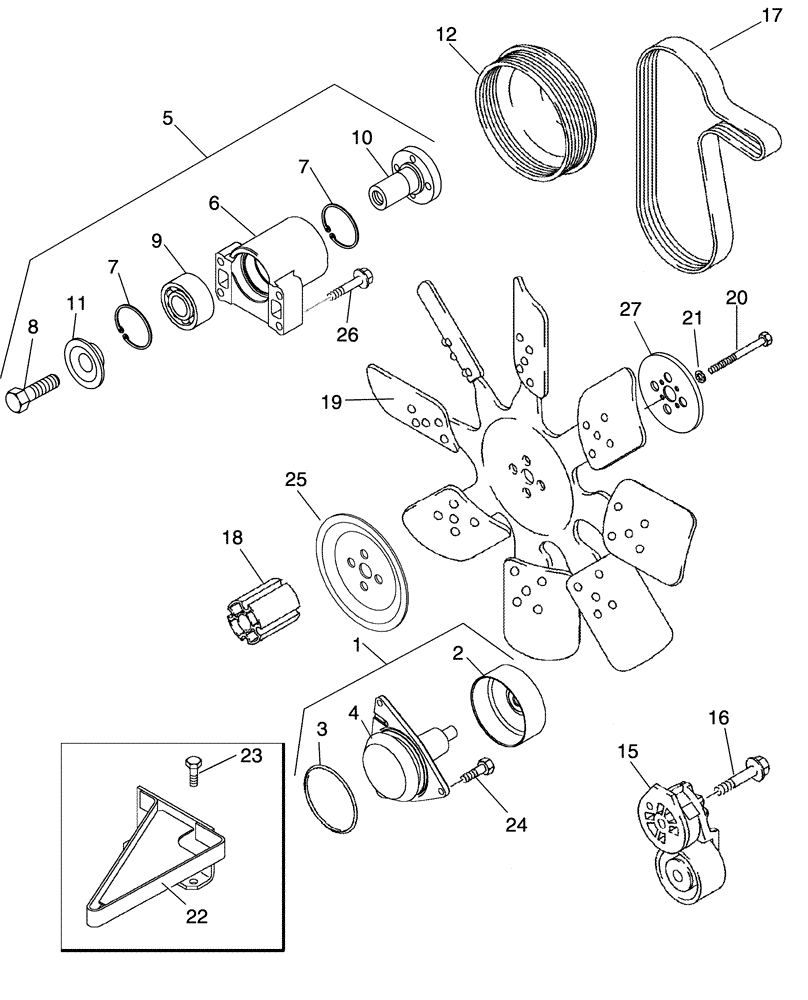

Запчасти Case IH 420 TIER 3 (02-02) - WATER PUMP SYSTEM (01) - ENGINE

1

87308650

KIT, WATER PUMP REPA

Inc. 2 - 4

1шт.

87308650R

REMAN-WATER PUMP

420 TIER 3 (3/08-)

1шт.

87308650C

CORE-WATER PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley, Incl in 1

1шт.

3

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Pump, Incl in 1

1шт.

5

J942896

SUPPORT

Fan, Incl 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

Support, Incl in 5

1шт.

7

100-21250

SNAP RING,2.50", Int, #250

2шт.

8

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

1шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

Fan

1шт.

11

J923044

RETAINER

Fan

1шт.

12

84244661

PULLEY,235.65mm OD

1шт.

15

87317615

BELT TENSIONER

1шт.

16

J282433

FLANGE BOLT,Hex, M10 x 1.5 x 85mm

1шт.

17

A78022

V-BELT,3.56 mm W x 2005.00 mm L, 8 Ribs

1шт.

18

A184751

SPACER,Fan, 74/75mm Thk

1шт.

18

A184548

SPACER,Fan, 89/90mm Thk

used with Nylon Fan , Start Year: 01-OCT-13

1шт.

19

444610A1

FAN

Aluminum Blades, use with 75mm spacer

1шт.

When changing over to new Fan 47536548, discard spacer A184751 and bolt 814-10105. Change to new spacer A184548 and Bolt 86980412

1шт.

19

47536548

FAN

Nylon Blades, use with 90mm Spacer, Start Year: 01-OCT-13

1шт.

20

814-10105

BOLT,Hex, M10 x 1.5 x 105mm, Cl 8.8

4шт.

20

86980412

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

, Start Year: 01-OCT-13

4шт.

21

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

22

87411538

GUIDE

Engine Fan Belt

1шт.

23

857-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

24

87351192

BOLT

3шт.

25

87573769

SHIELD

Fan Hub

1шт.

26

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

27

J915490

PLATE

1шт.
