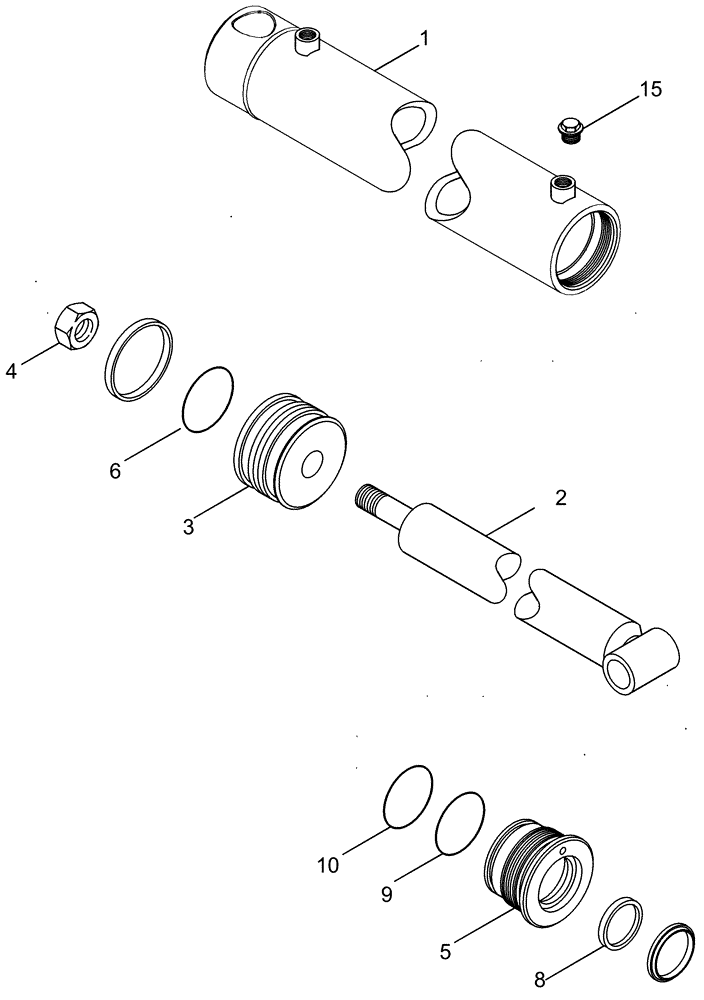

Запчасти Case IH 420 TIER 3 (08-39) - DRUM SPREAD CYLINDER ASSEMBLY (07) - HYDRAULICS

87272672

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 373.5mm Stroke

Drum Spread, Inc. 1 - 15

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE

1шт.

2

87385487

ROD

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON

1шт.

4

NSS

NOT SOLD SEPARAT

NUT

1шт.

5

NSS

NOT SOLD SEPARAT

THREADED HEAD

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

7

NSS

NOT SOLD SEPARAT

RING, Wear

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL, Piston

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER, Back-Up

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL, Rod, Un-Loaded

2шт.

14

NSS

NOT SOLD SEPARAT

WIPER, Canned

2шт.

15

NSS

NOT SOLD SEPARAT

PLUG

2шт.

87384988

SEAL KIT

Kit

1шт.
