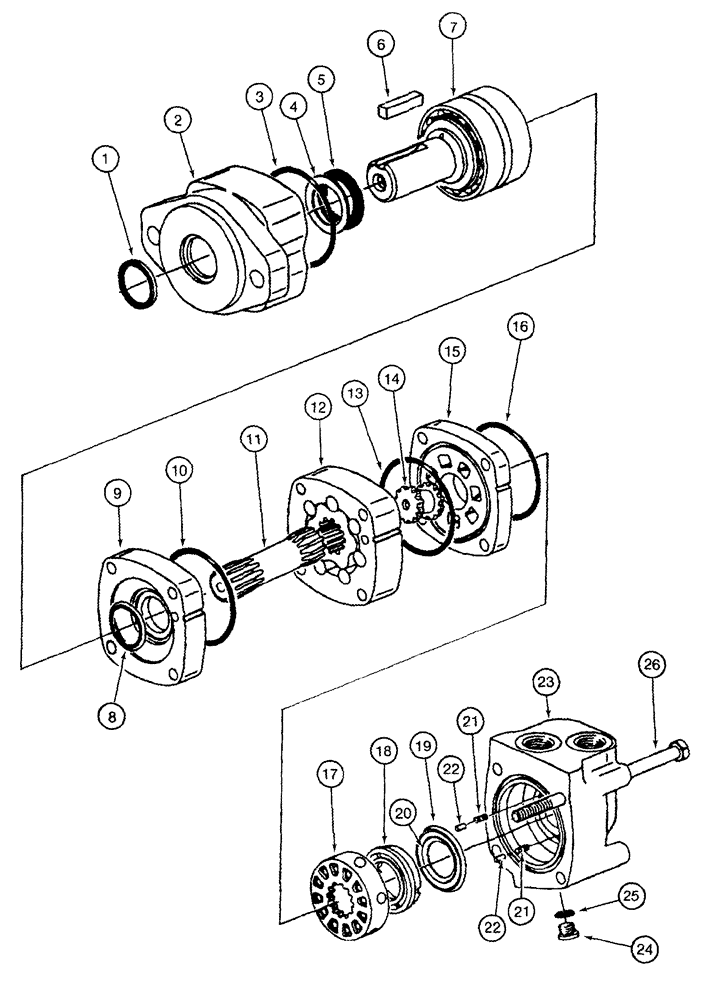

Запчасти Case IH 420 TIER 3 (08-34) - CONVEYOR UNLOADER MOTOR ASSEMBLY (07) - HYDRAULICS

175430A2

MOTOR, HYDRAULIC

Inc. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER, Backup

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL

1шт.

6

NSS

NOT SOLD SEPARAT

KEY

1шт.

7

NSS

NOT SOLD SEPARAT

MOTOR, Shaft and Bearing

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL

1шт.

11

NSS

NOT SOLD SEPARAT

SHAFT, Splined

1шт.

12

NSS

NOT SOLD SEPARAT

STATOR

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL

1шт.

14

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL

1шт.

17

NSS

NOT SOLD SEPARAT

VALVE, Manifold

1шт.

18

NSS

NOT SOLD SEPARAT

RING

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL, Outer

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL, Inner

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING

2шт.

22

NSS

NOT SOLD SEPARAT

PIN

2шт.

23

NSS

NOT SOLD SEPARAT

HOUSING, Valve End

2шт.

24

278548

PLUG,Hex, 7/16"-20 ORB

Incl 25

1шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

26

NSS

NOT SOLD SEPARAT

BOLT

4шт.

S300417

SEAL KIT

Inc. 1, 3, 4, 5, 8 ,10, 13, 16, 19, 20

1шт.
